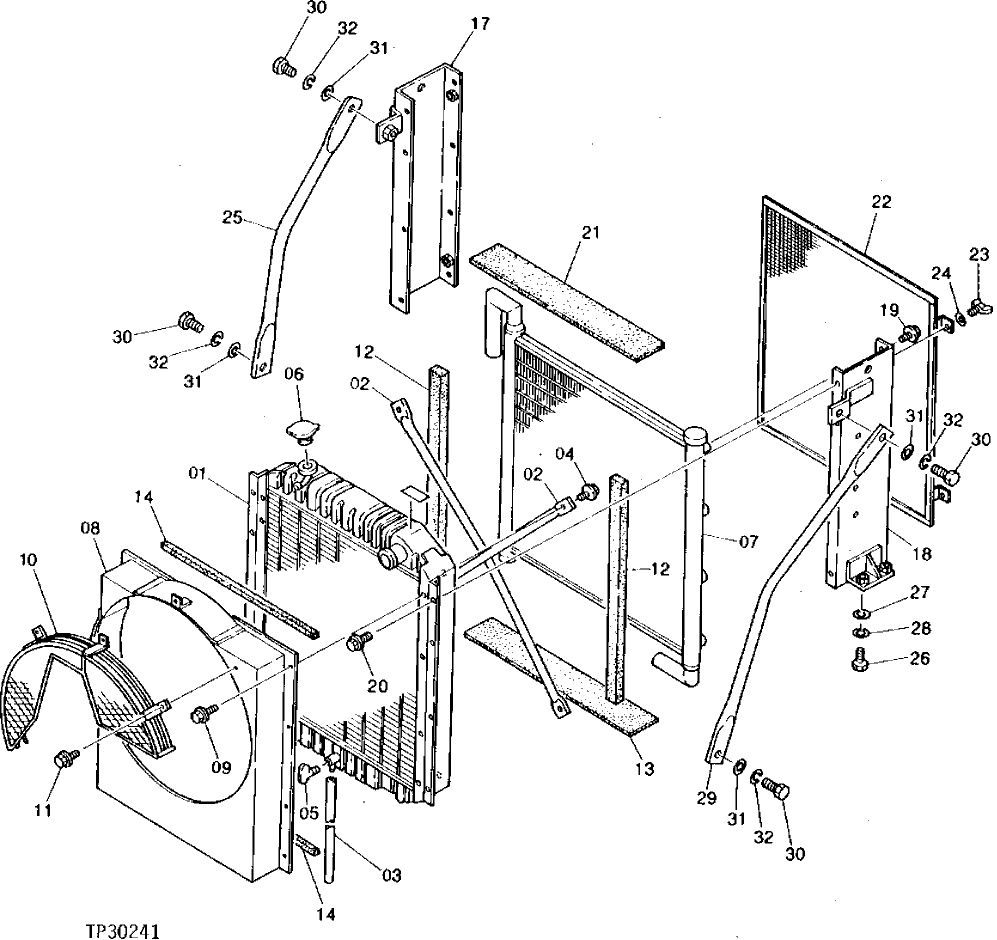

Запчасти John Deere 90D 62 - RADIATOR 0510 COOLING SYSTEMS

1

4256150

Radiator

(SUB FOR AT130722)

1шт.

2

4206677

Support

(SUB FOR AT130406)

2шт.

3

Hose

( TH108233 NO LONGER AVAILABLE) (CUT TO LENGTH FROM 1/2 INCH I.D. VINYL TUBING)

1шт.

4

Screw With Washer

(SUB FOR TH108223)( 4206679 NLA)

4шт.

19M7560

Cap Screw

M6 X 16

4шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

5

4148705

Drain Plug

(SUB FOR TH100907 ) (SUB FOR TH109425)

1шт.

6

AT169085

Filler Cap

(SUB FOR TH111864)

1шт.

7

4216509

Oil Cooler

(SUB FOR AT130441)

1шт.

8

4256151

Shroud

(SUB FOR AT130723)

1шт.

9

4206678

Bolt

(SUB FOR TH108227)

8шт.

10

4337797

Guard

(SUB FOR TH110778 ) (SUB FOR AT1 34367)(USE IF AVAILABLE) (IF AT13 4367 NOT AVAILABLE, SUB AT165853)

1шт.

4337797

Guard

(SUB FOR AT165853)

1шт.

11

19M7932

Cap Screw

M8 X 16 (SUB FOR TH108229, 4 206128, AT202245 OR 4331649)

4шт.

12M7065

Lock Washer

8 mm

4шт.

12

4221121

Isolator

(SUB FOR AT130450)

2шт.

13

4221122

Isolator

(SUB FOR AT130451)

1шт.

14

4221123

Isolator

(SUB FOR AT130452)

2шт.

17

4221124

Bracket

(SUB FOR AT130724)

1шт.

18

4221125

Bracket

(SUB FOR AT130725)

1шт.

19

4206678

Bolt

(SUB FOR TH108227)

8шт.

20

4206678

Bolt

(SUB FOR TH108227)

8шт.

21

4221126

Isolator

(SUB FOR AT130726)

1шт.

22

4221127

Screen

(SUB FOR AT130727)

1шт.

23

21M1689

Wing Screw

M6 X 12

4шт.

24

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR TH108159)

4шт.

25

4248958

Support

(SUB FOR AT130703)

1шт.

26

19M8011

Cap Screw

M12 X 30

4шт.

27

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

28

12H301

Lock Washer

1/2"

4шт.

29

4257215

Support

(SUB FOR AT130771)

1шт.

30

19M8035

Cap Screw

M16 X 35

4шт.

31

24M7053

Washer

17 X 30 X 3 mm

4шт.

32

12H294

Lock Washer

5/8"

4шт.
