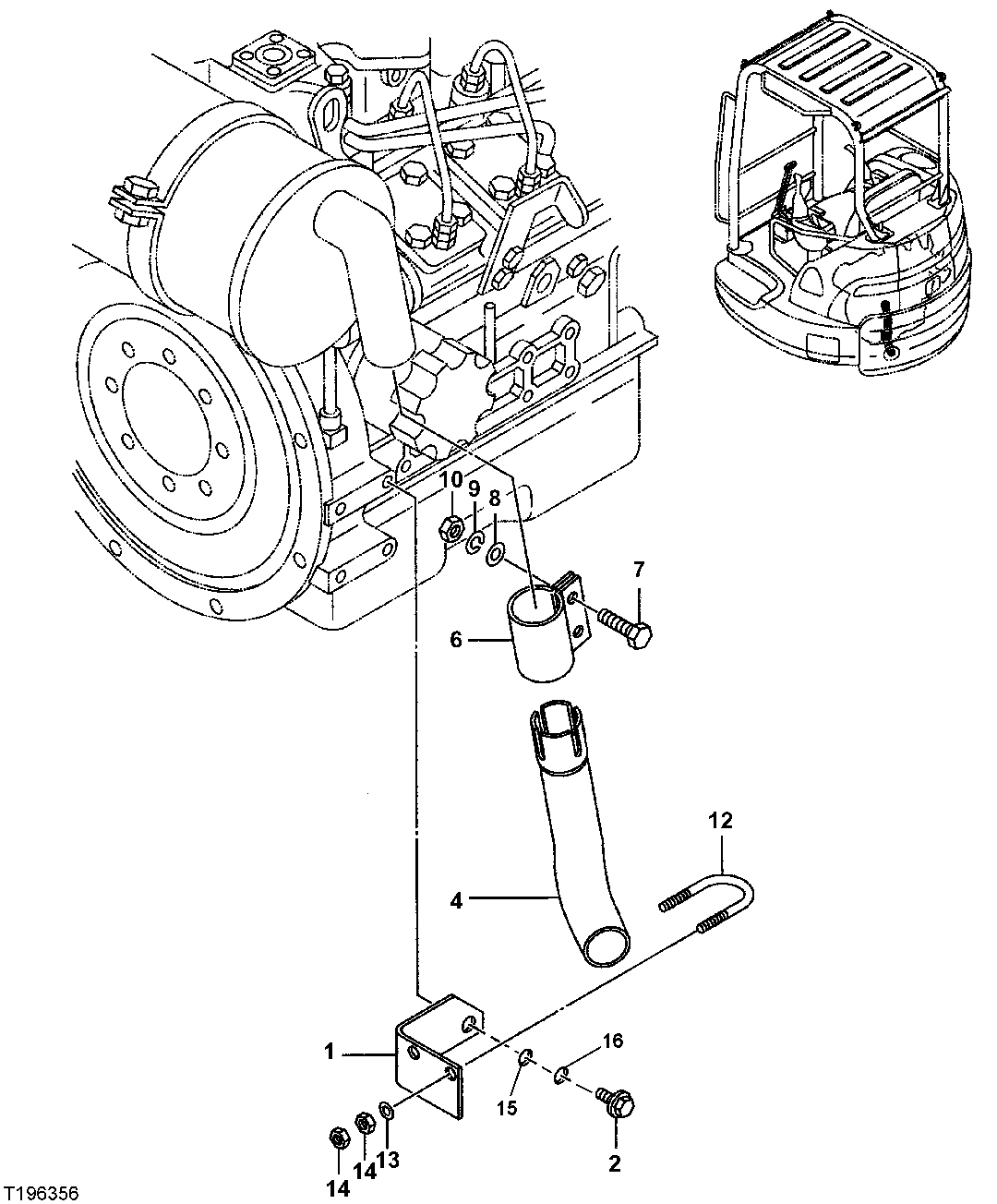

Запчасти John Deere 7ZTS 49 - MUFFLER ATTACHMENTS 0530 External Exhaust Systems

1

4419236

Bracket

(SUB FOR TH4419236)

1шт.

2

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

4

3085831

Exhaust Pipe

(SUB FOR TH3085831)

1шт.

6

4278931

Clamp

(SUB FOR AT251191)

1шт.

7

19M7550

Cap Screw

M10 X 35

2шт.

8

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR 12M7096)

2шт.

9

12M7066

Lock Washer

10 mm

2шт.

10

14M7274

Nut

M10

2шт.

12

4279326

U-Bolt

(SUB FOR AT255928)

1шт.

13

12M7036

Lock Plate

2шт.

14

14M7273

Nut

M8

4шт.

15

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

16

12M7066

Lock Washer

10 mm

2шт.
