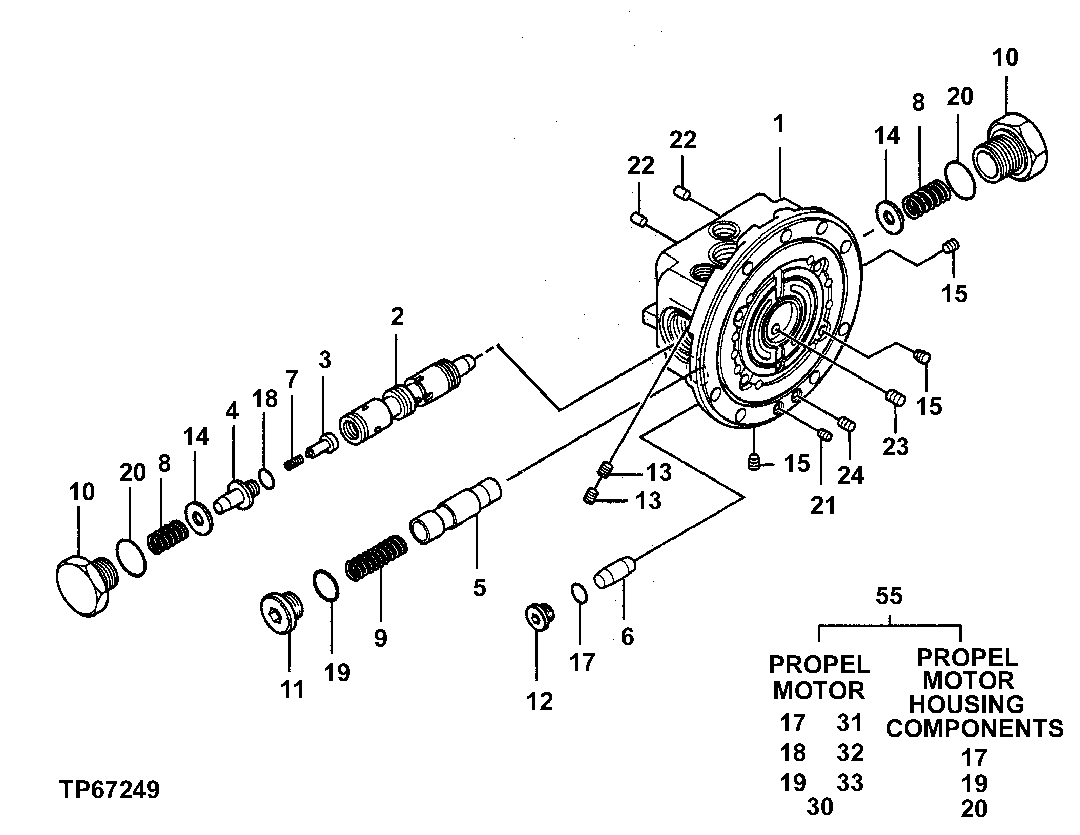

Запчасти John Deere 7ZTS 12 - Propel Motor Housing Components 0260 HYDRAULIC SYSTEM

1

Housing

(NOT AVAILABLE AS INDIVIDUAL COMPON ENT) (FURNISH 4420996 PROPEL MOTOR)

1шт.

2

Spool

1шт.

3

Check Valve

2шт.

4

Guide

2шт.

5

Spool

1шт.

6

Guide

1шт.

7

Spring

2шт.

8

0658404

Spring

(SUB FOR AT251886)

2шт.

9

0749001

Spring

(SUB FOR TH0749001)

1шт.

10

0636505

Fitting Plug

(SUB FOR AT251790)

2шт.

11

0636506

Fitting Plug

(SUB FOR AT251791)

2шт.

12

0636507

Fitting Plug

(SUB FOR AT251792)

2шт.

13

Choke

4шт.

14

0636508

Washer

(SUB FOR AT251793)

2шт.

15

Plug

6шт.

17

4506408

O-Ring

(A) (SUB FOR TH101490)

2шт.

18

4140470

O-Ring

(SUB FOR TH109089)

2шт.

19

CH11570

O-Ring

(A) 13.800 X 2.400 mm (0.543" X 3/32")

2шт.

20

966689

O-Ring

(A) (SUB FOR TH108142)

2шт.

21

Dowel Pin

ARшт.

22

Dowel Pin

ARшт.

23

Plug

ARшт.

24

Plug

ARшт.

55

0730711

Seal Kit

(SUB FOR TH0730711)(INCL UDES ALL PARTS MARKED (A)

1шт.
