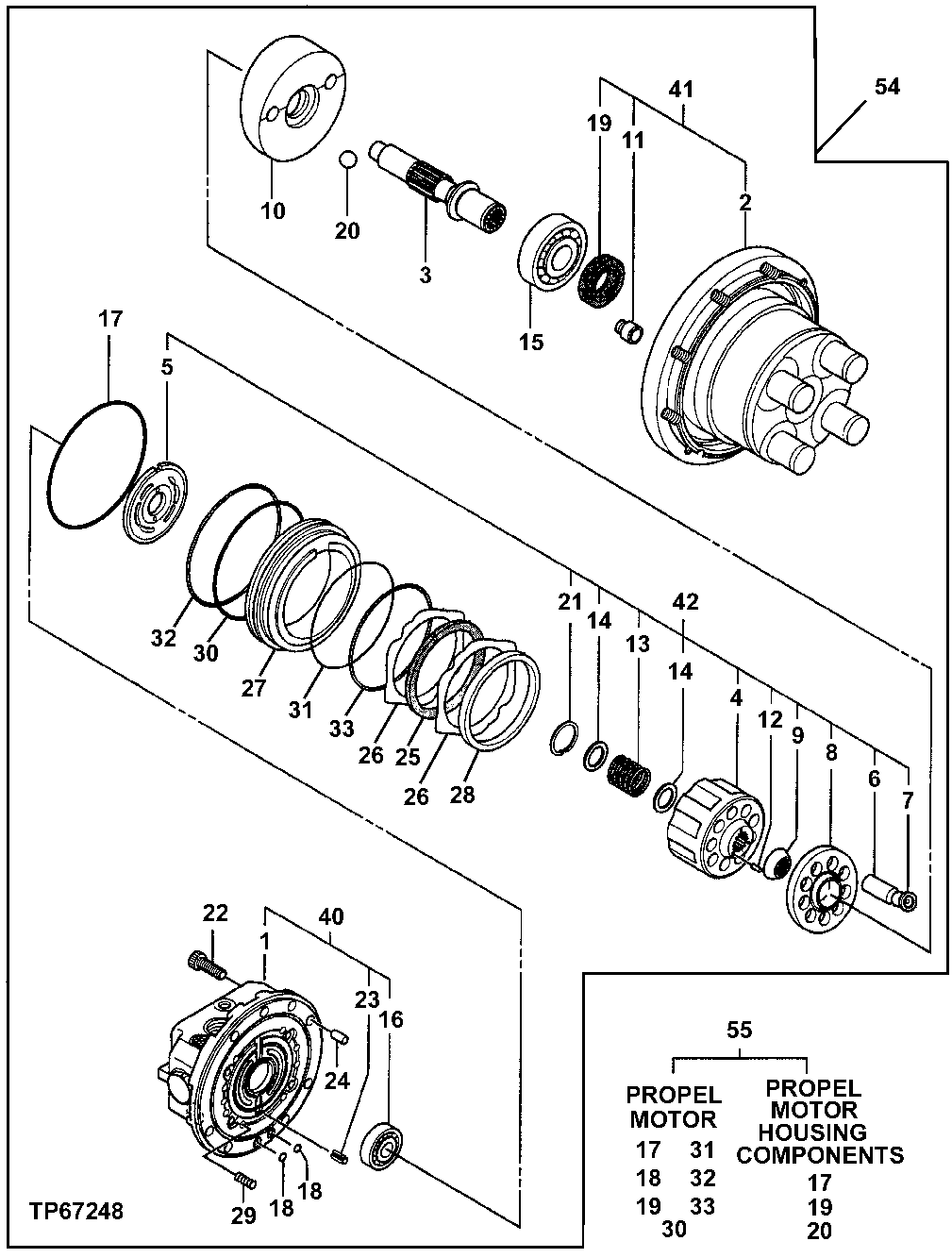

Запчасти John Deere 7ZTS 11 - Propel Motor Components 0260 HYDRAULIC SYSTEM

1

Housing

1шт.

2

Housing

1шт.

3

0658401

Shaft

(SUB FOR AT251884)

1шт.

4

Cylinder Block

1шт.

5

Plate

1шт.

6

Piston

9шт.

7

Shoe

9шт.

8

Holder

1шт.

9

Holder

1шт.

10

0748901

Swash Plate

(SUB FOR TH0748901)

1шт.

11

Piston

1шт.

12

Pin

3шт.

13

Spring

1шт.

14

Retainer

2шт.

15

0684605

Ball Bearing

(SUB FOR AT251917)

1шт.

16

0474202

Bearing

(SUB FOR AT251755)

1шт.

17

A811125

O-Ring

(A) (SUB FOR AT200001)

1шт.

18

CH11568

Packing

(A)

2шт.

19

0474203

Seal

(A) (SUB FOR AT251756)

1шт.

20

0636509

Ball

(SUB FOR AT251794)

2шт.

21

40M7085

Snap Ring

(SUB FOR AT251727 OR 0426904 OR 443964)

1шт.

22

0474204

Cap Screw

(SUB FOR TH0474204)

7шт.

23

4051267

Spring Pin

(SUB FOR AT251728, 0426906)

1шт.

24

0473906

Dowel Pin

(SUB FOR AT251753)

1шт.

25

0730702

Plate

(SUB FOR TH0730702)

1шт.

26

0730703

Plate

(SUB FOR TH0730703)

2шт.

27

0730704

Piston

(SUB FOR TH0730704)

1шт.

28

0730705

Spacer

(SUB FOR TH0730705)

1шт.

29

0768601

Spring

(SUB FOR TH0768601)

8шт.

30

AT264320

O-Ring

(A) 109.400 X 3.100 mm (4.30 7" X 0.122") (SUB FOR T110448)

1шт.

31

AT264319

O-Ring

(A) 99.400 X 3.100 mm (3.913 " X 0.122") (SUB FOR T110447)

1шт.

32

0730707

Back-Up Ring

(A) (SUB FOR TH0730707)

1шт.

33

0478601

Back-Up Ring

(A) (SUB FOR TH0478601)

1шт.

40

0768602

Bed Liner

(SUB FOR TH0768602)

1шт.

41

0768603

Bed Liner

(SUB FOR TH0768603)

1шт.

42

0730710

Cylinder Kit

(SUB FOR TH0730710)

1шт.

54

Motor

(PROPEL) (SERVICED IN 4420996)

1шт.

55

0730711

Seal Kit

(SUB FOR TH0730711)(CON TAINS PARTS MARKED (A))

1шт.
