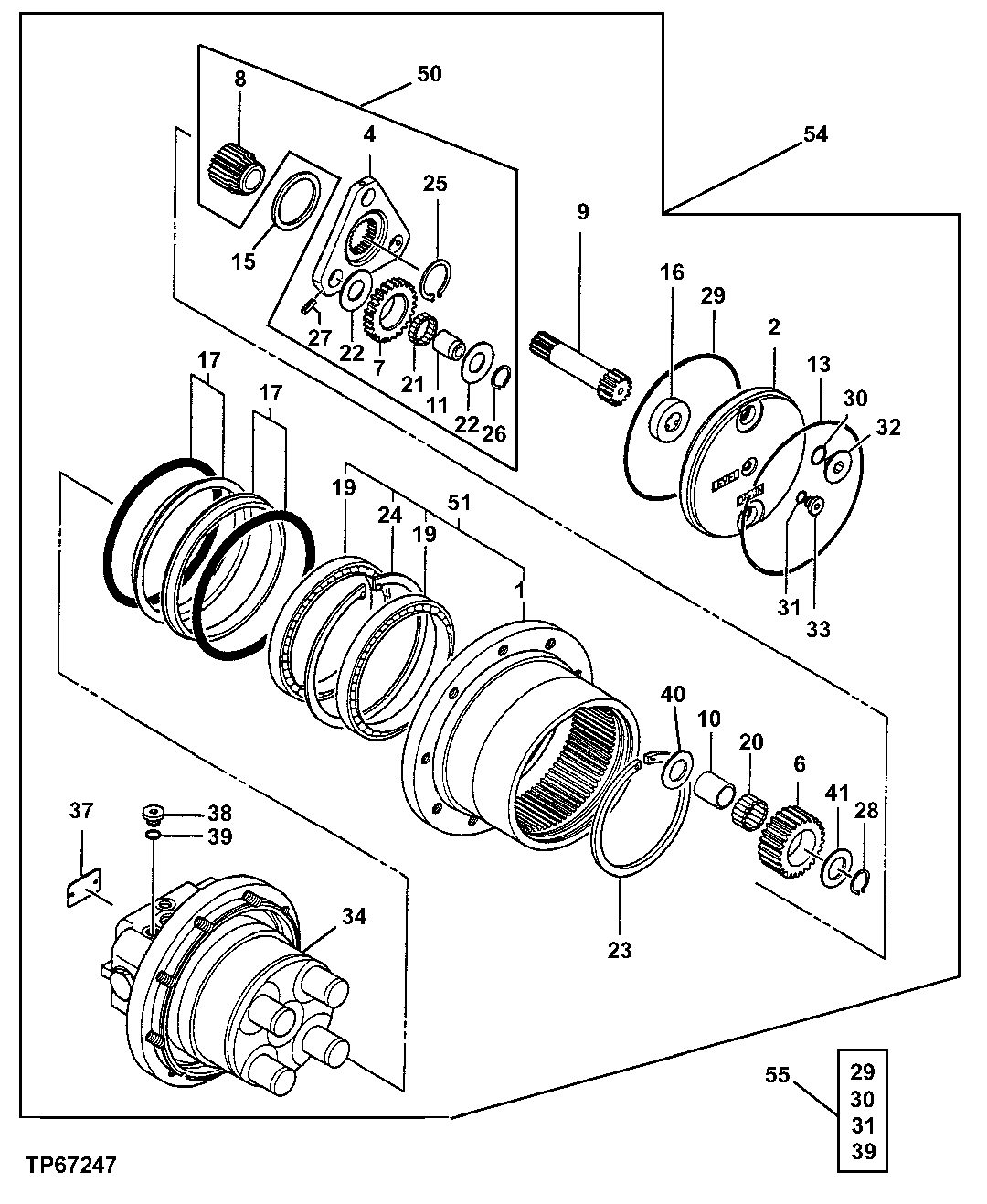

Запчасти John Deere 7ZTS 10 - PROPEL MOTOR 0260 HYDRAULIC SYSTEM

1

Housing

1шт.

2

0748801

Cover

(SUB FOR TH0748801)

1шт.

4

Hyd. Motor Piston Carrier

1шт.

6

0748802

Gear

(SUB FOR TH0748802)

4шт.

7

Gear

3шт.

8

Gear

1шт.

9

0748803

Pinion Shaft

(SUB FOR TH0748803)

1шт.

10

0748804

Bushing

(SUB FOR TH0748804)

4шт.

11

Pin

3шт.

13

0636407

Snap Ring

(SUB FOR TH0636407)

1шт.

15

0748805

Thrust Washer

(SUB FOR TH0748805)

1шт.

16

0658307

Ring

(SUB FOR AT251874)

1шт.

17

0748806

Seal

(SUB FOR TH0748806)

2шт.

19

0748807

Bearing

(SUB FOR TH0748807)

2шт.

20

0748808

Needle Roller

(SUB FOR TH0748808)

92шт.

21

Needle

48шт.

22

Thrust Washer

6шт.

23

0748809

Snap Ring

(SUB FOR TH0748809)

1шт.

24

0748810

Snap Ring

(SUB FOR TH0748810)

1шт.

25

0474104

Snap Ring

(SUB FOR AT251754)

1шт.

26

40M7195

Snap Ring

(SUB FOR 40M1828)

3шт.

27

0473808

Spring Pin

(SUB FOR AT251752)

3шт.

28

0748811

Snap Ring

(SUB FOR TH0748811)

4шт.

29

0636416

O-Ring

(A) (SUB FOR TH0636416)

1шт.

30

CH11570

O-Ring

(A) 13.800 X 2.400 mm (0.543" X 3/32")

2шт.

31

4506408

O-Ring

(A) (SUB FOR TH101490)

1шт.

32

0664916

Fitting Plug

(SUB FOR AT251905)

2шт.

33

0664917

Fitting Plug

(SUB FOR AT251906)

1шт.

34

Motor

(SEE SEPARATE PAGE FOR DETAIL)

1шт.

37

Identification Plate

1шт.

38

0426810

Fitting Plug

(SUB FOR AT251726)

1шт.

39

M800650

Packing

(A)

1шт.

40

0748812

Thrust Washer

(SUB FOR TH0748812)

4шт.

41

0748813

Thrust Washer

(SUB FOR TH0748813)

4шт.

50

0748815

Planet Pinion Carrier

(SUB FOR TH0748815)

1шт.

51

0748814

Housing

(SUB FOR TH0748814)

1шт.

54

4420996

Hydraulic Motor

(SUB FOR TH4420996)

1шт.

55

0748816

Seal Kit

(SUB FOR TH0748816)(CON TAINS PARTS MARKED (A))

1шт.
