201 - SWING MOTOR (2/2)

Запчасти John Deere 7ZTS 201 - SWING MOTOR (2/2) 4360 Hydraulics

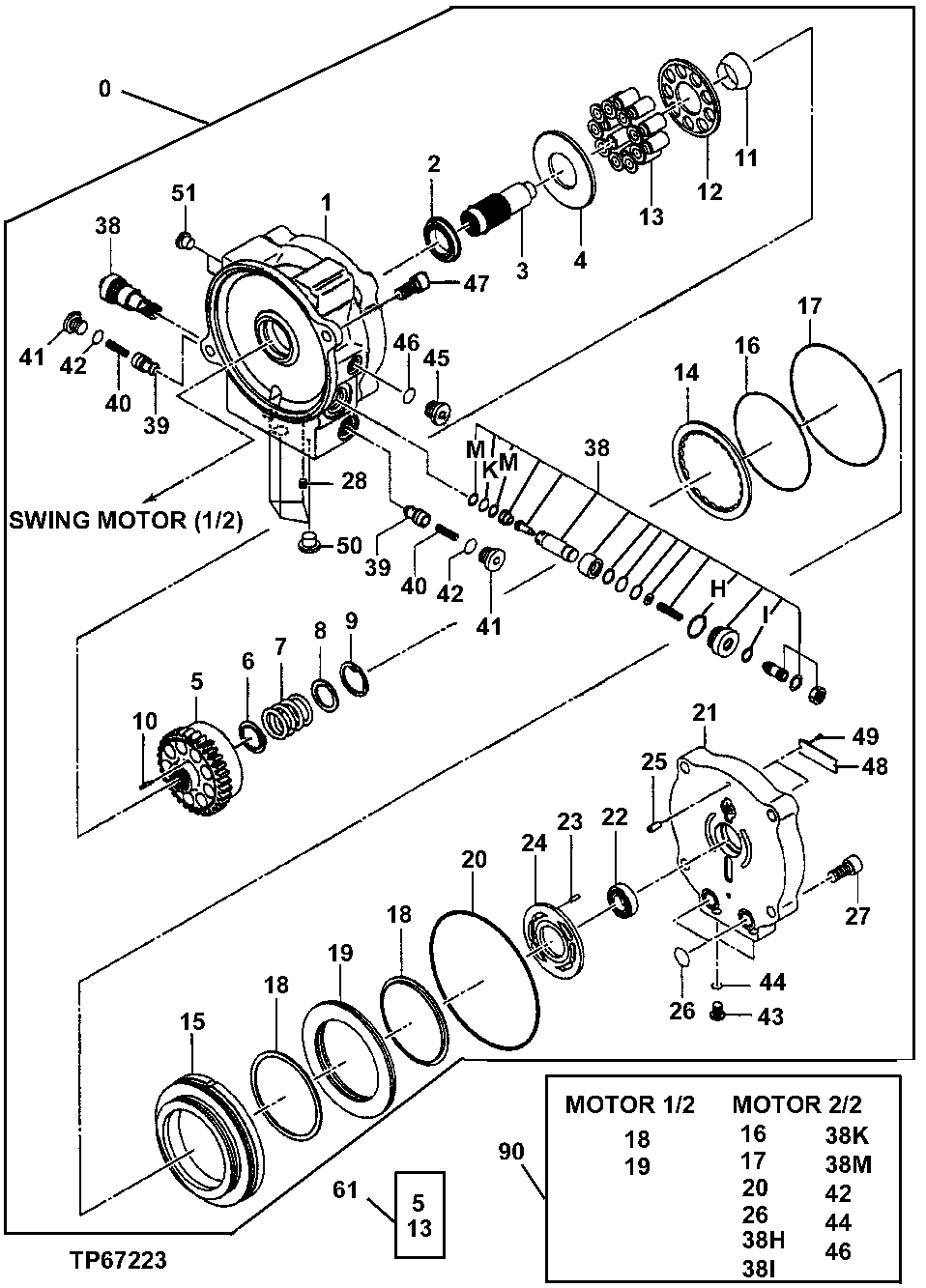

Схема запчастей John Deere 7ZTS - 201 - SWING MOTOR (2/2) 4360 Hydraulics
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

4415269

Hydraulic Motor

(SUB FOR TH4415269)(CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL C OMPONENTS LISTED ON PREVIOUS PAGE )

1шт.

1

0748701

Housing

(SUB FOR TH0748701)

1шт.

2

0646903

Ball Bearing

(SUB FOR AT251798)

1шт.

3

0733402

Shaft

(SUB FOR TH0733402)

1шт.

4

0396807

Wear Plate

(SUB FOR AT251719)

1шт.

5

Cylinder Block

(A)

1шт.

6

0397905

Retainer

(SUB FOR AT251721)

1шт.

7

0434006

Spring

(SUB FOR AT251750)

1шт.

8

0434007

Washer

(SUB FOR AT251751)

1шт.

9

0396815

Snap Ring

(SUB FOR AT251720)

1шт.

10

0434005

Pin

(SUB FOR AT251749)

3шт.

11

0397908

Holder

(SUB FOR AT251722)

1шт.

12

0732004

Plate

(SUB FOR TH0732004)

1шт.

13

Piston

(A)

9шт.

14

0733403

Disk

(SUB FOR TH0733403)

1шт.

15

0733404

Piston

(SUB FOR TH0733404)

1шт.

16

AT264320

O-Ring

(B) (SUB FOR T110448)

1шт.

17

A811135

O-Ring

(B) (SUB FOR AT200002)

1шт.

18

0733405

Plate

(SUB FOR TH0733405)

2шт.

19

0733406

Disk Spring

(SUB FOR TH0733406)

1шт.

20

0158830

O-Ring

(B) (SUB FOR TH105706)

1шт.

21

0748702

Cover

(SUB FOR TH0748702)

1шт.

22

0397915

Ball Bearing

(SUB FOR AT251725)

1шт.

23

0396703

Dowel Pin

(SUB FOR AT251718)

1шт.

24

0732003

Plate

(SUB FOR TH0732003)

1шт.

25

0311313

Pin

(SUB FOR TH109056)

2шт.

26

985099

O-Ring

(B) (SUB FOR TH101479)

2шт.

27

0168006

Bolt

(SUB FOR TH0168006)

5шт.

28

0397916

Orifice

(SUB FOR TH0397916)

1шт.

38

0748703

Pressure Relief Valve

(SUB FOR TH0748703)

2шт.

38H

O-Ring

(B)

1шт.

38I

O-Ring

(B)

1шт.

38K

O-Ring

(B)

1шт.

38M

Back-Up Ring

(B)

2шт.

39

0647003

Check Valve

(SUB FOR TH0647003)

2шт.

40

AT251801

Spring

2шт.

41

0311336

Pipe Plug

(SUB FOR TH109082)

2шт.

42

CH11570

O-Ring

(B) 13.800 X 2.400 mm (0.543" X 3/32")

2шт.

43

0647006

Fitting Plug

(SUB FOR AT251802)

2шт.

44

4506408

O-Ring

(B) (SUB FOR TH101490)

2шт.

45

0436608

Fitting Plug

(SUB FOR AT218054)

1шт.

46

M800650

Packing

(B)

1шт.

47

0168006

Bolt

(SUB FOR TH0168006)

2шт.

48

Identification Plate

1шт.

49

Screw

2шт.

50

Drain Plug

4шт.

51

Drain Plug

2шт.

61

0732007

Cylinder Kit

(SUB FOR TH0732007)(INC LUDES PARTS MARKED (A))

1шт.

90

0748605

Repair Kit

(SUB FOR TH0748605)(INC LUDES PARTS MARKED (B))

1шт.
