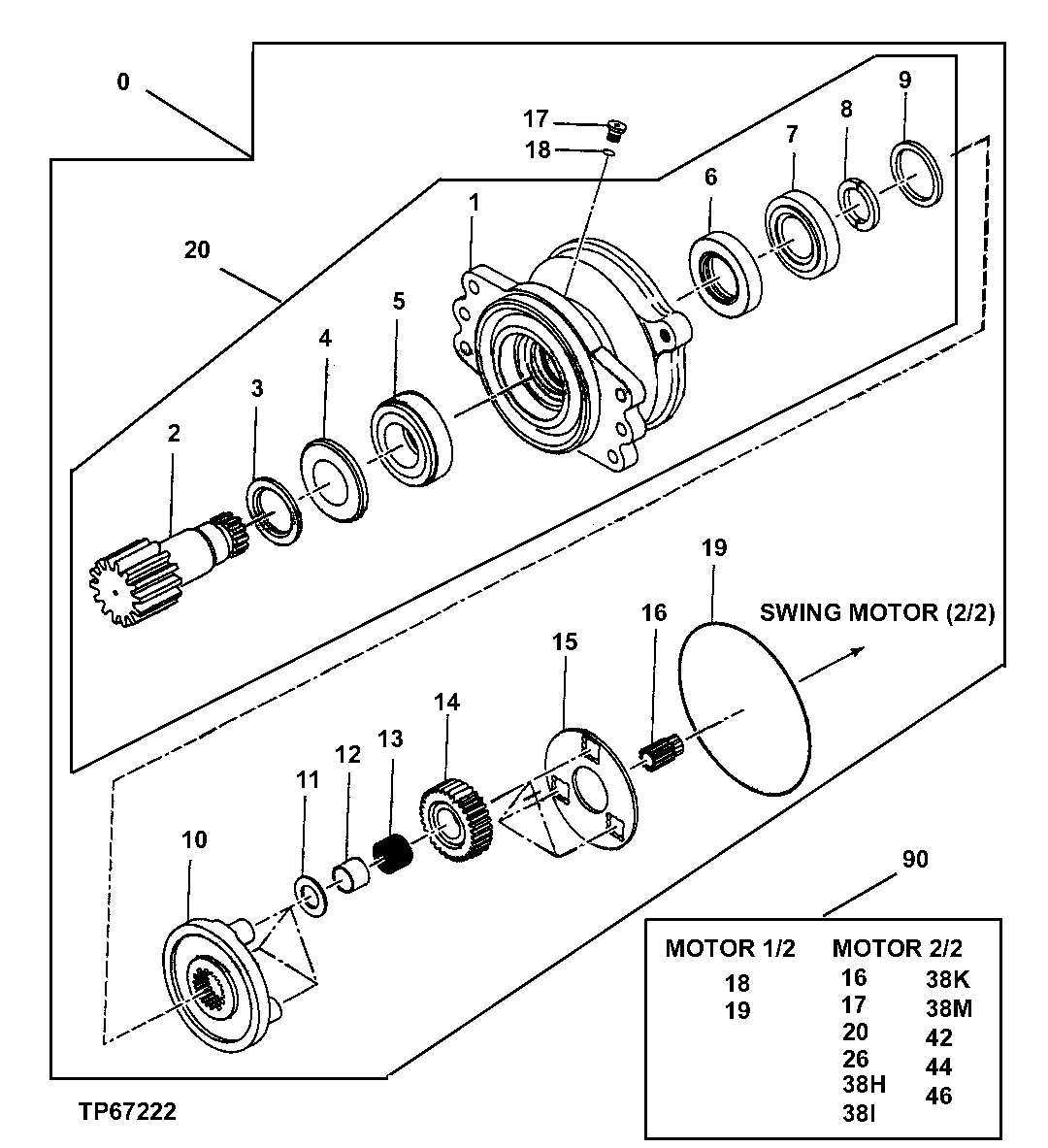

Запчасти John Deere 7ZTS 200 - SWING MOTOR (1/2) 4360 Hydraulics

0

4415269

Hydraulic Motor

(CONTAINS ALL ITEMS ON THIS PAG E, ADDITIONAL COMPONENTS ON FOLL OWING PAGE) (SUB FOR TH4415269)

1шт.

1

Housing

( TH0733301 NLA)

1шт.

2

0748601

Shaft

(SUB FOR TH0748601)

1шт.

3

0733303

Bushing

(SUB FOR TH0733303)

1шт.

4

0733304

Plate

(SUB FOR TH0733304)

1шт.

5

0733305

Cylindrical Roller Bearing

(SUB FOR TH0733305)

1шт.

6

0251311

Seal

(SUB FOR TH109063)

1шт.

7

0733306

Bearing

(SUB FOR TH0733306)

1шт.

8

0733307

Ring

(SUB FOR TH0733307)

2шт.

0733308

Ring

(SUB FOR TH0733308)

2шт.

0733309

Ring

(SUB FOR TH0733309)

2шт.

0733310

Ring

(SUB FOR TH0733310)

2шт.

0748602

Ring

(SUB FOR TH0748602)

2шт.

0748603

Ring

(SUB FOR TH0748603)

2шт.

9

0733312

Bushing

(SUB FOR TH0733312)

1шт.

10

0733313

Holder

(SUB FOR TH0733313)

1шт.

11

0646807

Thrust Washer

(SUB FOR TH0646807)

3шт.

12

0733314

Bearing Race

(SUB FOR TH0733314)

3шт.

13

0733315

Needle Bearing

(SUB FOR TH0733315)

3шт.

14

0733316

Gear

(SUB FOR TH0733316)

3шт.

15

0733317

Wear Plate

(SUB FOR TH0733317)

1шт.

16

0733318

Gear

(SUB FOR TH0733318)

1шт.

17

0647006

Fitting Plug

(SUB FOR AT251802)

1шт.

18

4506408

O-Ring

(A) (SUB FOR TH101490)

1шт.

19

0234201

O-Ring

(A) (SUB FOR TH103584)

1шт.

20

0748604

Housing

(SUB FOR TH0748604)

1шт.

90

0748605

Repair Kit

(SUB FOR TH0748605)(INC LUDES PARTS MARKED (A))

1шт.
