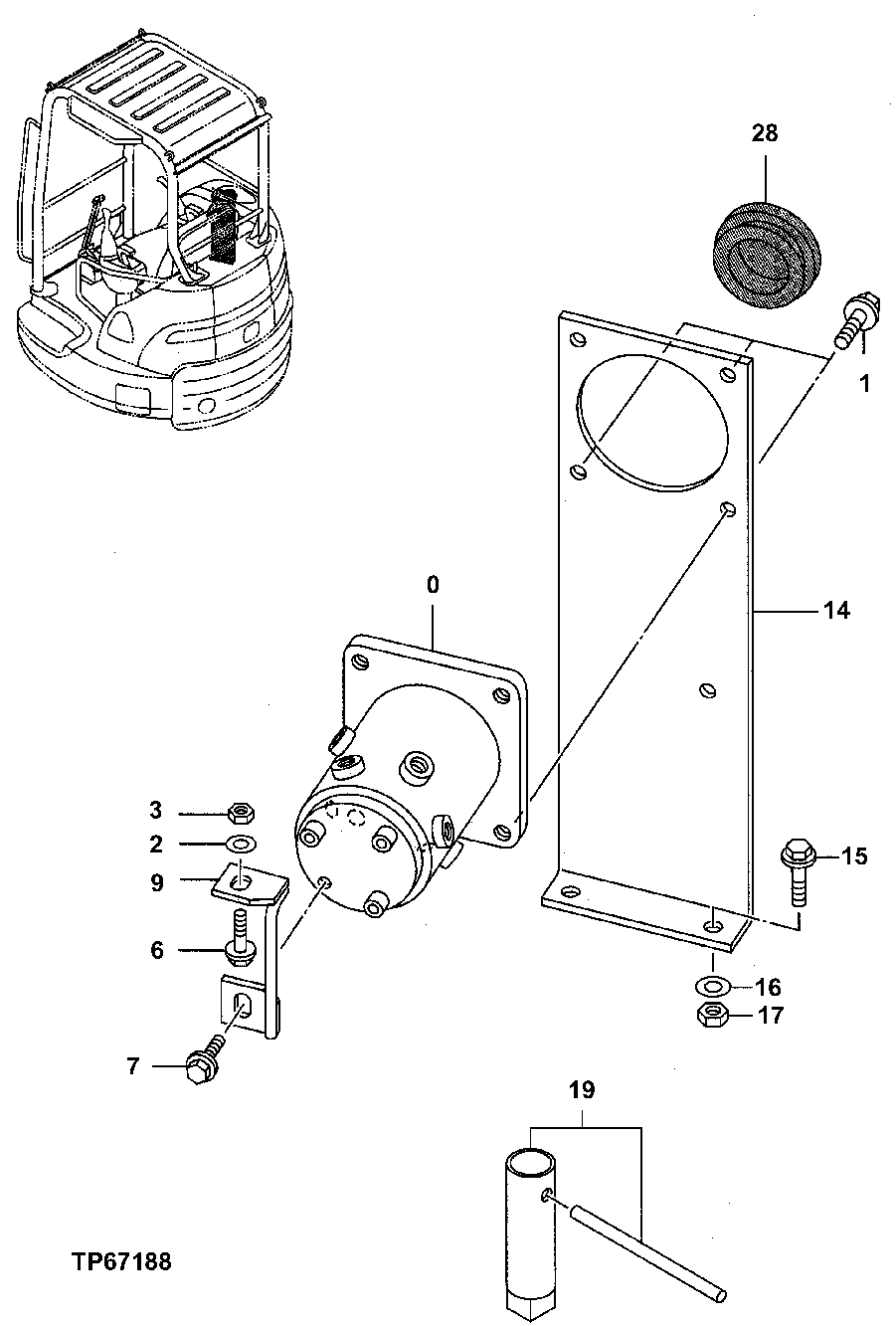

Запчасти John Deere 7ZTS 192 - TWO WAY MULTI-LEVER VALVE 3360 HYDRAULIC SYSTEM

0

4460294

Flow Control Hyd. Valve

(SUB FOR AT258398 OR TH4460294)

1шт.

1

19M8011

Cap Screw

M12 X 30

3шт.

12M7058

Lock Washer

12 mm

3шт.

2

12M7036

Lock Plate

1шт.

3

14M7273

Nut

M8

1шт.

6

19M7407

Cap Screw

M8 X 25

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

12M7056

Lock Washer

8 mm

1шт.

7

19M7932

Cap Screw

M8 X 16

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

12M7056

Lock Washer

8 mm

1шт.

9

9753827

Bracket

(SUB FOR TH9753827)

1шт.

14

4395013

Bracket

(SUB FOR AT258373)

1шт.

15

19M7662

Cap Screw

M10 X 30

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

16

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR 12M7096)

2шт.

17

14M7274

Nut

M10

2шт.

19

4351893

Wrench

(SUB FOR AT258337)

1шт.

28

4408091

Bushing

(SUB FOR AT258387)

1шт.
