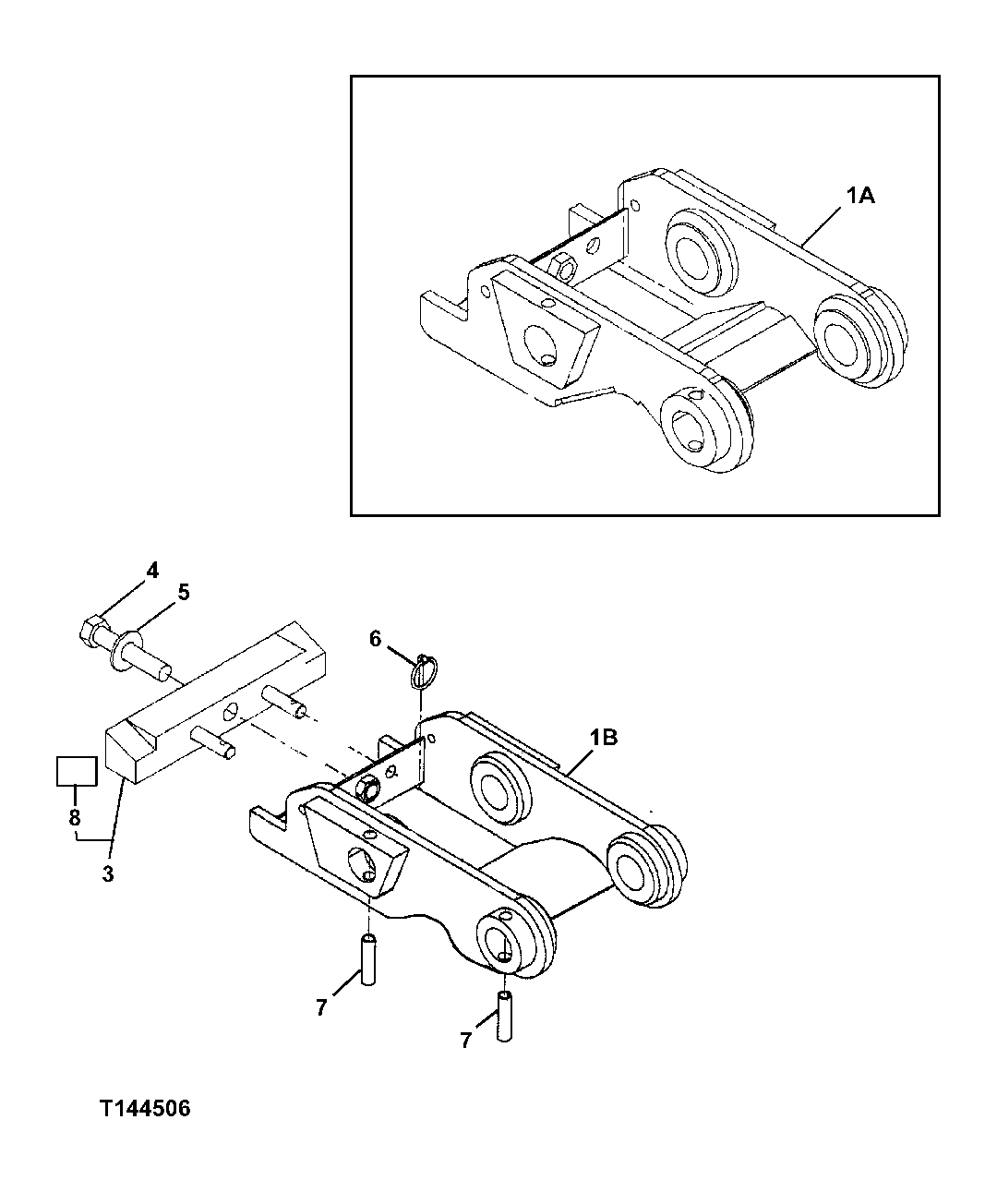

Запчасти John Deere 7ZTS 191 - Quick Coupler 3360 HYDRAULIC SYSTEM

1A

Frame

(SUB AT196231)( AT1914 22 NO LONGER AVAILABLE)

1шт.

1B

AT196231

Quick Coupler

1шт.

3

AT191837

Bar

(SUB FOR T186089)

1шт.

4

19H2969

Cap Screw

5/8" X 3-1/2"

1шт.

5

24H1360

Washer

5/8" X 1-15/32" X 0.105"

1шт.

6

M72598

Quick Lock Pin

2шт.

7

34H373

Spring Pin

1/2" X 2-1/2"

2шт.

8

T208596

Safety Sign

(SUB FOR T185672)

1шт.
