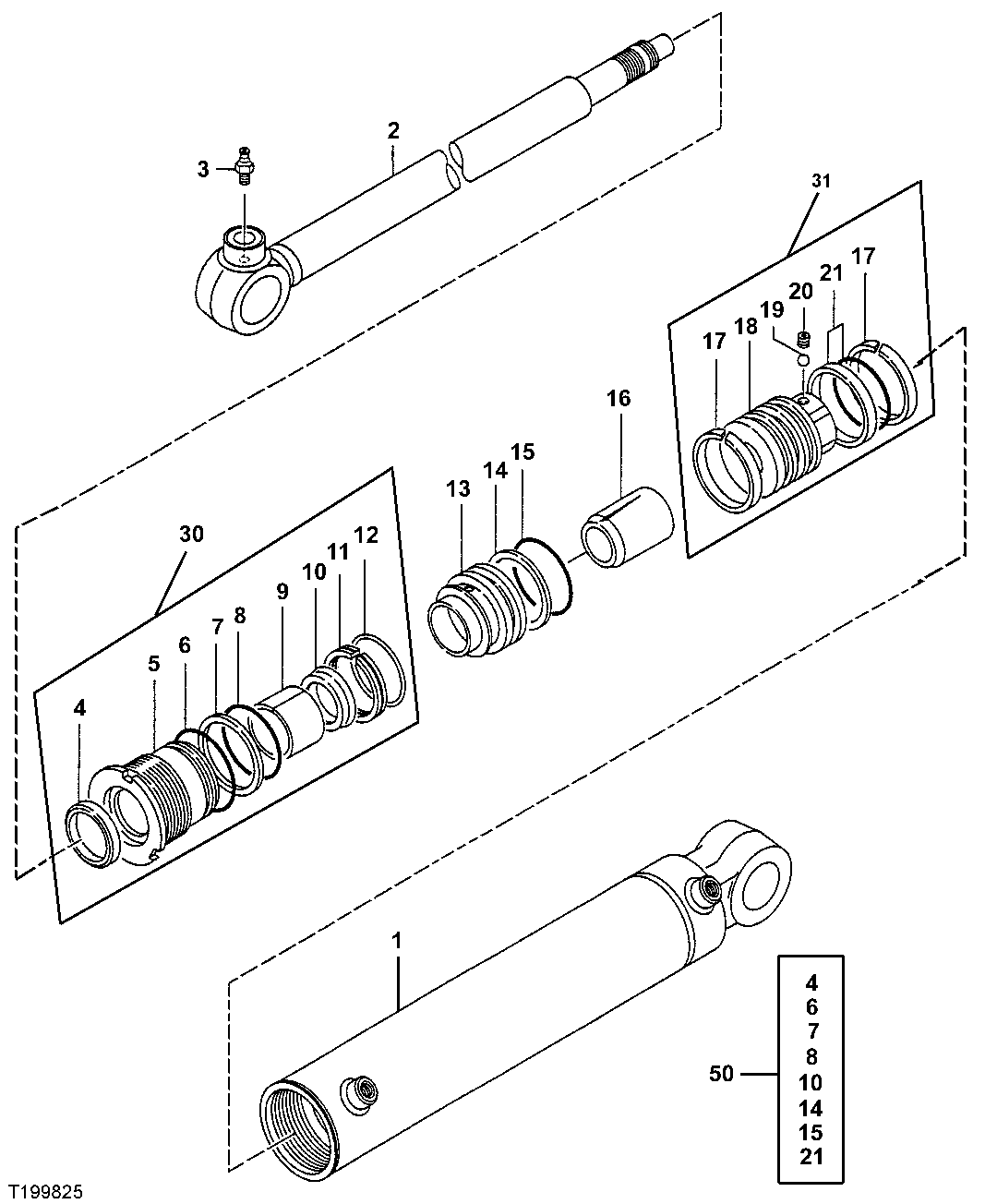

Запчасти John Deere 7ZTS 189 - Swing Cylinder 3360 HYDRAULIC SYSTEM

1

0847201

Hydraulic Cylinder Barrel

(SUB FOR TH0744201 OR 0744201)

1шт.

2

0847202

Hydraulic Cylinder Rod

(SUB FOR TH0744202 OR 0744202)

1шт.

3

0429920

Lubrication Fitting

(SUB FOR TH0429920)

1шт.

4

0682001

Ring

(SUB FOR TH0658606 OR 0658606)

1шт.

5

0494901

Hydr. Cylinder Rod Guide

(SUB FOR TH0494901)

1шт.

6

4153541

O-Ring

(SUB FOR TH0478907)

1шт.

7

0479008

Back-Up Ring

(SUB FOR TH0479008)

1шт.

8

A811070

O-Ring

(SUB FOR TH0479007, 0479007 OR TH103140)

1шт.

9

1162404

Bushing

(SUB FOR TH0481103, 0481103)

1шт.

10

0391715

Ring

(SUB FOR TH0391715)

1шт.

11

0481004

Ring

(SUB FOR TH0481004)

1шт.

12

0481005

Stop

(SUB FOR TH0481005)

1шт.

13

0744203

Retainer

(SUB FOR TH0744203)

1шт.

14

0479008

Back-Up Ring

(SUB FOR TH0479008)

1шт.

15

AT264334

O-Ring

(SUB FOR TH100101)

1шт.

16

0744204

Bearing

(SUB FOR TH0744204)

1шт.

17

0479010

Ring

(SUB FOR AT251766)

2шт.

18

0481203

Piston

(SUB FOR TH0481203)

1шт.

19

0431910

Ball

(SUB FOR AT203717)

1шт.

20

0479012

Set Screw

(SUB FOR TH0479012)

1шт.

21

0432304

Ring

(SUB FOR TH0432304)

1шт.

30

Hydr. Cylinder Rod Guide

(SUB FOR TH0743803)( 074 3803 NLA) ( 0846903 NLA)

1шт.

31

Piston

( TH0679803 OR 0679803 NO LONGER AVAILABL E FOR SERVICE - SUB INDIVIDUAL COMPONENTS)

1шт.

50

0847204

Seal Kit

(SUB FOR 0744205 AND TH0744205)

1шт.
