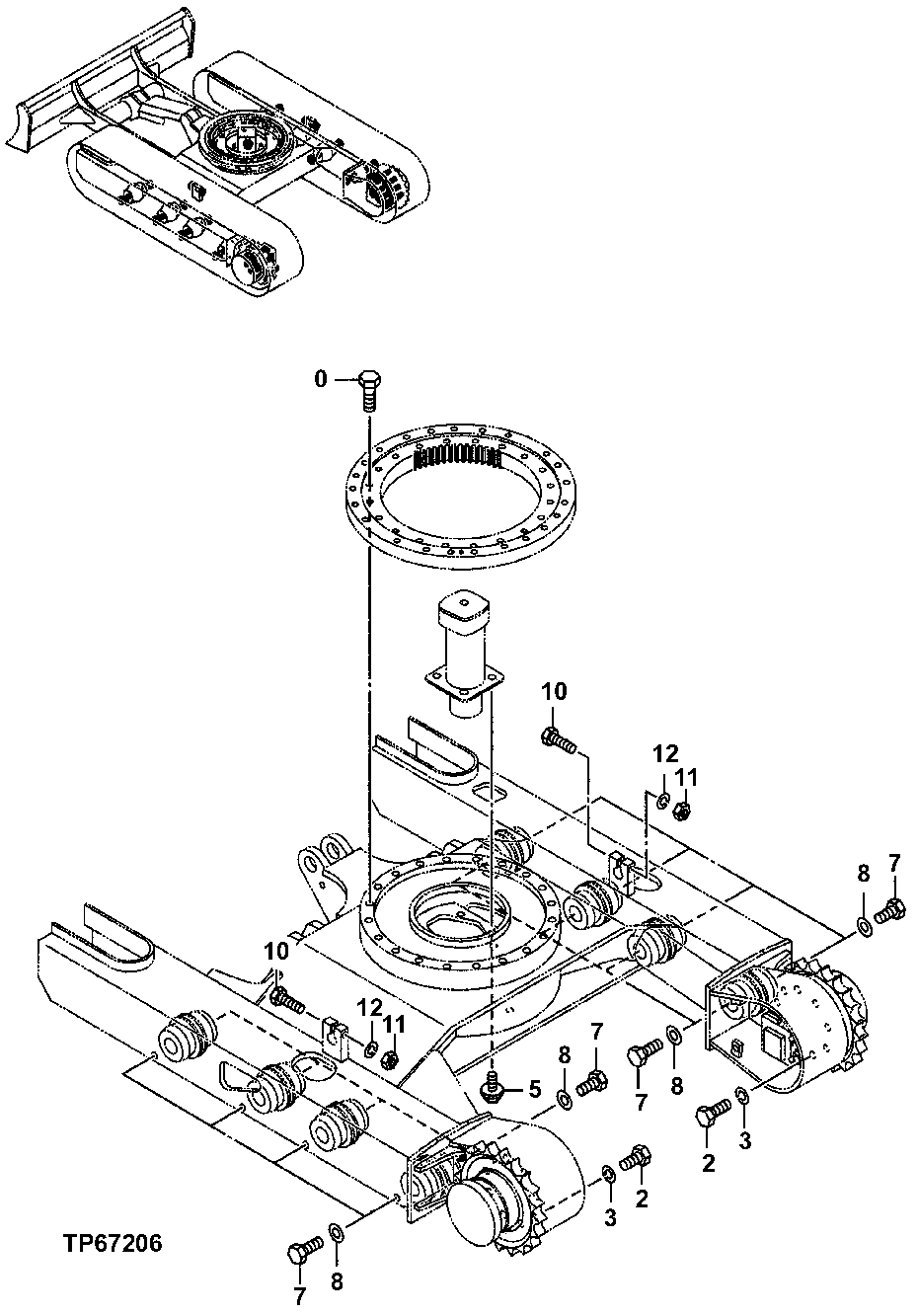

Запчасти John Deere 7ZTS 8 - Bolt Kit 0260 HYDRAULIC SYSTEM

0

19M8348

Cap Screw

M12 X 65

20шт.

2

19M8011

Cap Screw

M12 X 30 Swing Motor Mounting

18шт.

3

12M7058

Lock Washer

12 mm Swing Motor Mounting

18шт.

5

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

7

4303033

Bolt

(SUB FOR TH4303033) Lower Roller Mounting

16шт.

8

24H1350

Washer

9/16" X 1-1/4" X 0.194 " Lower Roller Mounting

16шт.

10

19M4789

Cap Screw

M14 X 80

2шт.

11

14M7435

Nut

M14

2шт.

12

12M7068

Lock Washer

14 mm

2шт.
