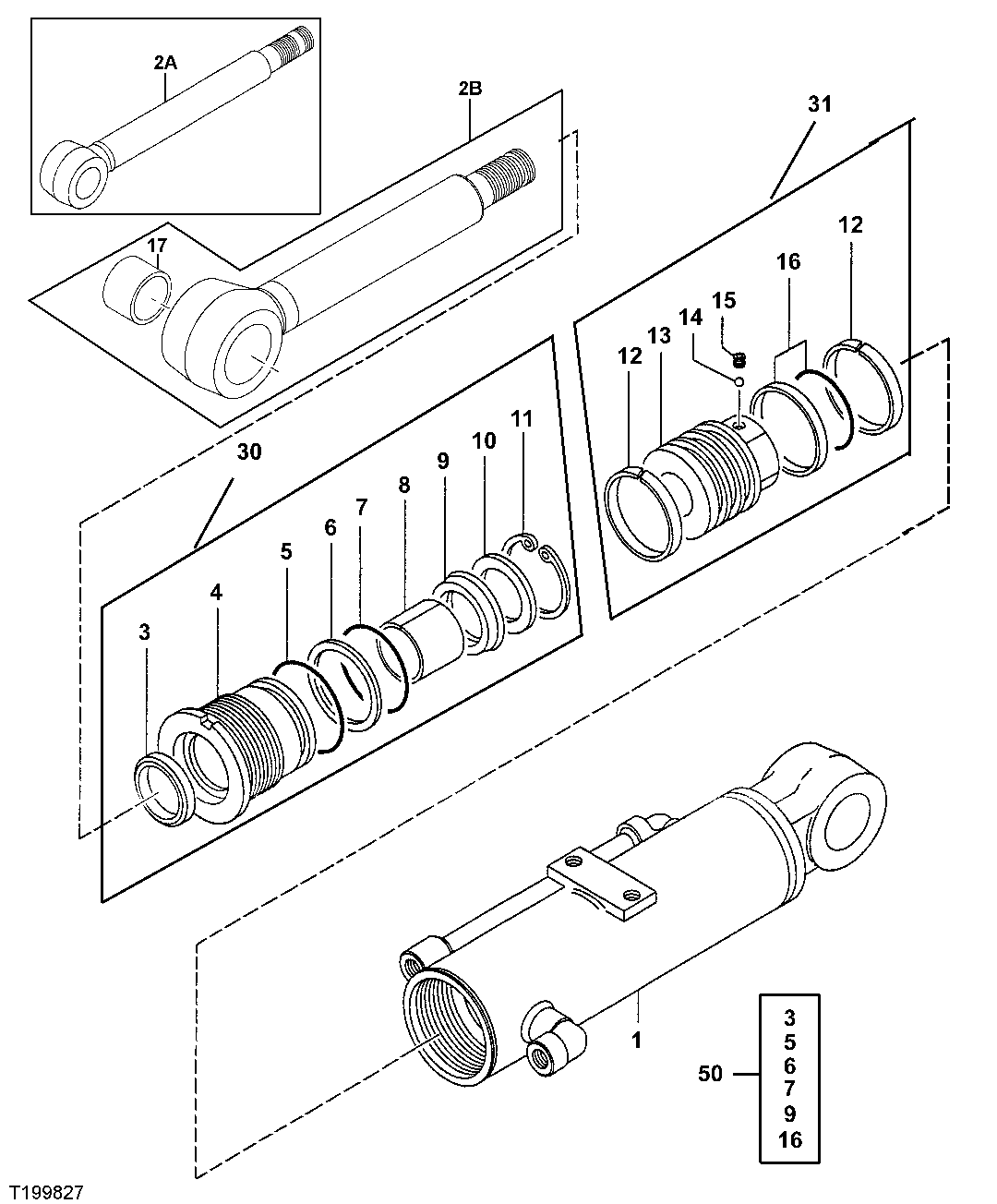

Запчасти John Deere 7ZTS 187 - Blade Cylinder 3360 HYDRAULIC SYSTEM

1

0847301

Hydraulic Cylinder Barrel

SUB FOR TH0744301 OR 0744301

1шт.

2A

Rod

SUB 0847302; TH0729002 OR 072900 2 NO LONGER AVAILABLE FOR SERVICE

1шт.

2B

0847302

Rod

SUB FOR 0729002

1шт.

3

0682101

Ring

1шт.

4

0481601

Hydr. Cylinder Rod Guide

SUB FOR TH0481601

1шт.

5

4369925

O-Ring

SUB FOR 0694604 OR 4S00891

1шт.

6

AT264285

Sealing Ring

SUB FOR AT200293, 0453508

1шт.

7

CH17160

Packing

SUB FOR TH0478712

1шт.

8

0637901

Bushing

SUB FOR TH0479002, 0479002

1шт.

9

0405205

Packing

SUB FOR TH0405205

1шт.

10

0481602

Packing

SUB FOR TH0481602

1шт.

11

0481603

Snap Ring

SUB FOR TH0481603

1шт.

12

0729004

Wear Ring

SUB FOR TH0729004

2шт.

13

0729003

Piston

SUB FOR TH0729003

1шт.

14

0431910

Ball

SUB FOR AT203717

1шт.

15

0729005

Set Screw

SUB FOR TH0729005

1шт.

16

AT264286

Ring

SUB FOR AT200295, 0453510

1шт.

17

4332744

Bushing

1шт.

30

Hydr. Cylinder Rod Guide

SUB FOR TH0744302; 0744302 NLA; 0847304 NLA; FURNISH COMPONENTS

1шт.

31

0744303

Piston

SUB FOR TH0744303

1шт.

50

0729006

Hydraulic Cylinder Kit

SUB FOR TH0729006

1шт.
