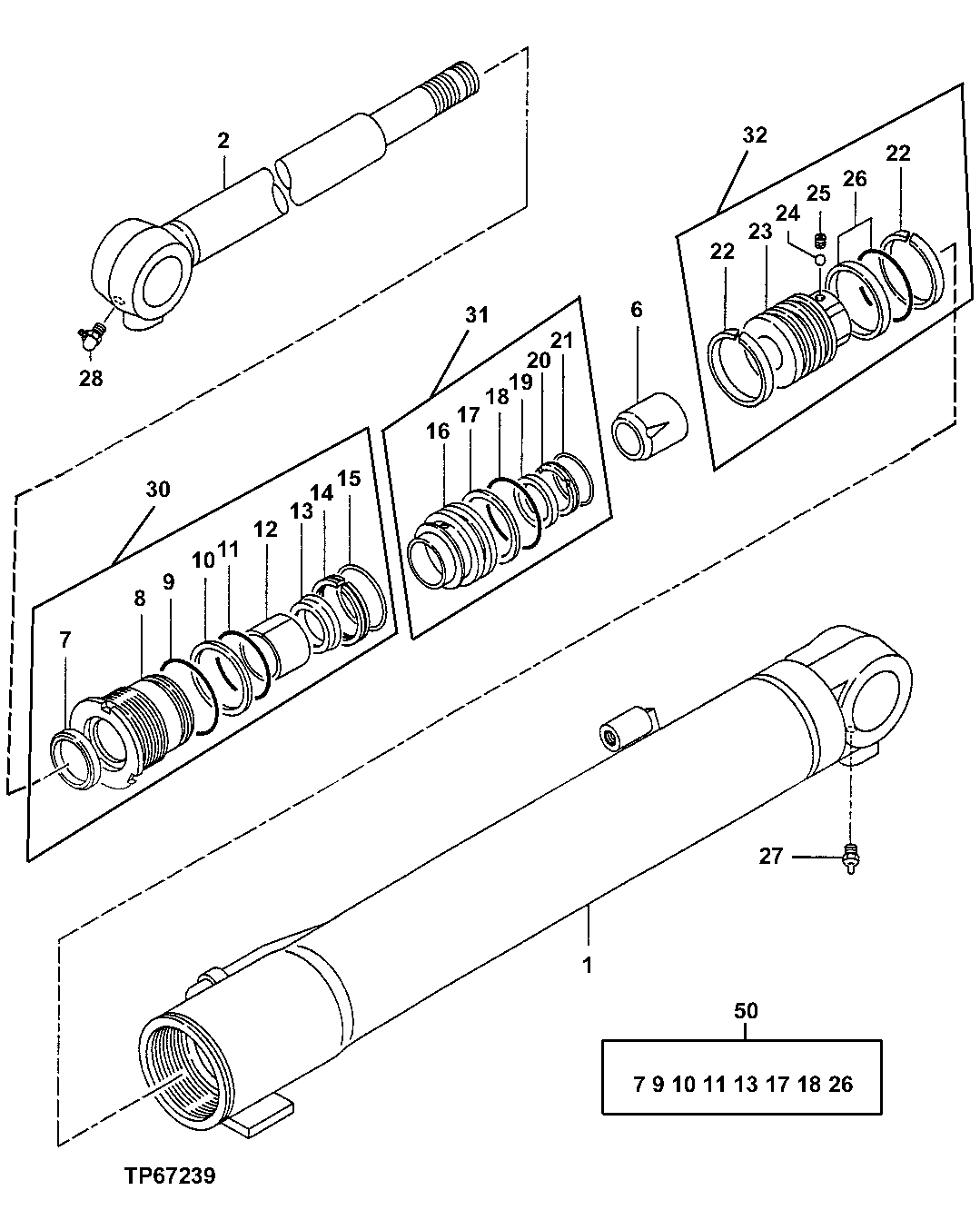

Запчасти John Deere 7ZTS 181 - Boom Cylinder 3360 HYDRAULIC SYSTEM

1

0850101

Hydraulic Cylinder Barrel

(SUB FOR TH0743901 OR 0743901)

1шт.

2

0846902

Rod

(SUB FOR TH0743802 OR 0743802)

1шт.

6

0743804

Bearing

(SUB FOR TH0743804)

1шт.

7

0682001

Ring

(SUB FOR TH0658606 OR 0658606)

1шт.

8

0494901

Hydr. Cylinder Rod Guide

(SUB FOR TH0494901)

1шт.

9

4153541

O-Ring

1шт.

10

0479008

Back-Up Ring

(SUB FOR TH0479008)

1шт.

11

A811070

O-Ring

(SUB FOR TH0479007, 0479007 OR TH103140)

1шт.

12

1162404

Bushing

(SUB FOR TH0481103, 0481103)

1шт.

13

0391715

Ring

(SUB FOR TH0391715)

1шт.

14

0481004

Ring

(SUB FOR TH0481004)

1шт.

15

0481005

Stop

(SUB FOR TH0481005)

1шт.

16

0494902

Retainer

(SUB FOR TH0494902)

1шт.

17

0479008

Back-Up Ring

(SUB FOR TH0479008)

1шт.

18

AT264334

O-Ring

(SUB FOR TH100101)

1шт.

19

0494903

Ring

(SUB FOR TH0494903)

1шт.

20

0494904

Spacer

(SUB FOR TH0494904)

1шт.

21

0494905

Stop

(SUB FOR TH0494905)

1шт.

22

0479010

Ring

(SUB FOR AT251766)

2шт.

23

0481203

Piston

(SUB FOR TH0481203)

1шт.

24

0431910

Ball

(SUB FOR AT203717)

1шт.

25

0479012

Set Screw

(SUB FOR TH0479012)

1шт.

26

0432304

Ring

(SUB FOR TH0432304)

1шт.

27

0429920

Lubrication Fitting

(SUB FOR TH0429920)

1шт.

28

T116334

Lubrication Fitting

(SUB FOR TH0271312)

1шт.

30

Hydr. Cylinder Rod Guide

(SUB FOR TH0743803)( 0743803 NLA) ( 0846903 NLA) (FURNISH COMPONENTS)

1шт.

31

Retainer

(SUB FOR TH0679802)( 0679802 N O LONGER AVAILABLE FOR SERVICE - ORDER INDIVIDUAL COMPONENTS)

1шт.

32

Piston

( TH0679803 OR 0679803 NO LONGER AVAILABL E FOR SERVICE - SUB INDIVIDUAL COMPONENTS)

1шт.

50

0743805

Hydraulic Cylinder Kit

(SUB FOR TH0743805)

1шт.
