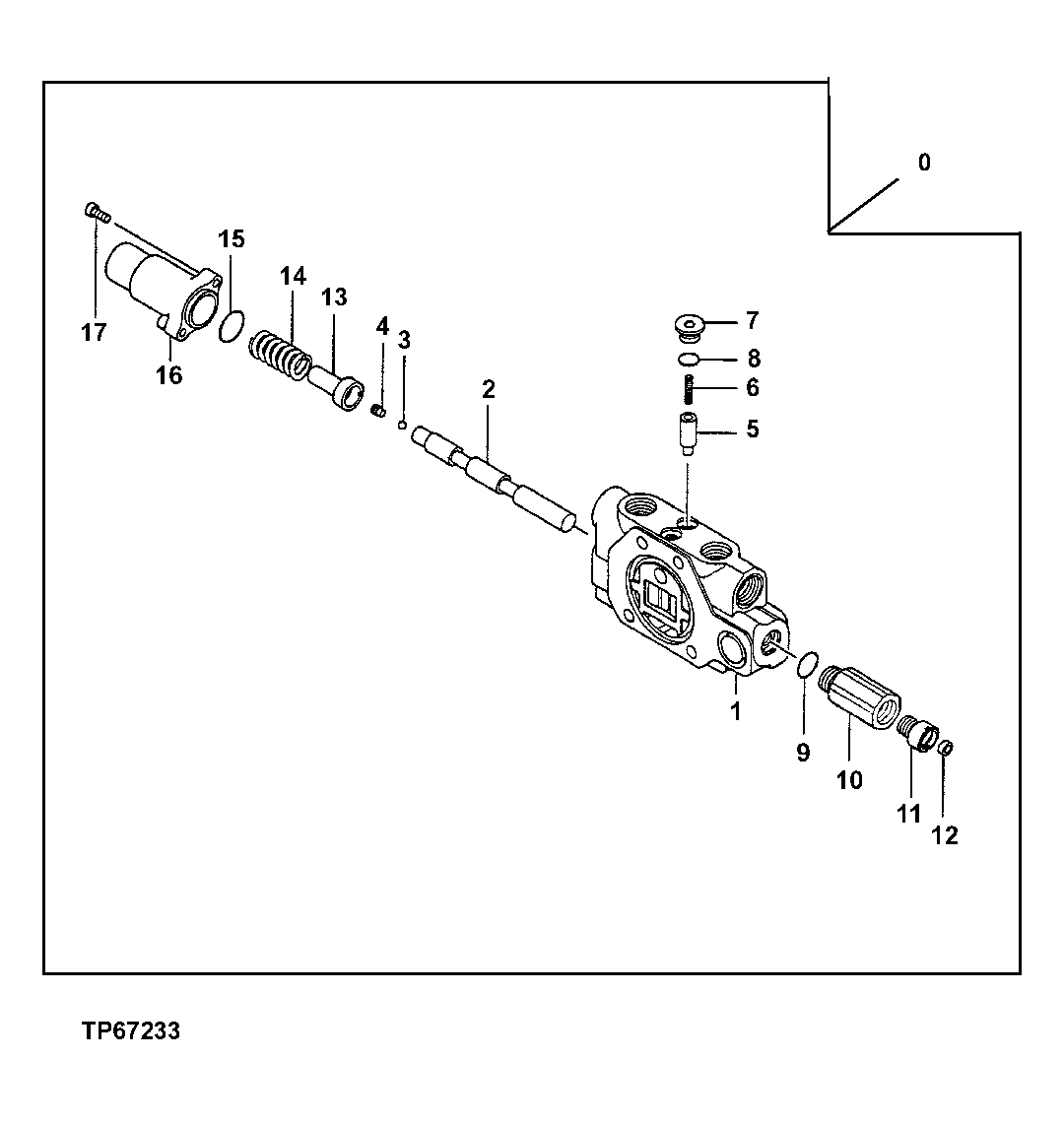

Запчасти John Deere 7ZTS 175 - CONTROL VALVE (8) 3360 HYDRAULIC SYSTEM

0

4438451

Flow Control Hyd. Valve

(SUB FOR TH4438451)(SECTION 8)

1шт.

1

Housing

1шт.

2

Spool

1шт.

3

Ball

1шт.

4

Screw

1шт.

5

0751401

Plunger

(SUB FOR TH0751401)

2шт.

6

0751402

Spring

(SUB FOR TH0751402)

2шт.

7

0751007

Plug

(SUB FOR TH0751007)

2шт.

8

4506408

O-Ring

(SUB FOR TH101490)

2шт.

9

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

10

0751403

Bushing

(SUB FOR TH0751403)

1шт.

11

0751005

Plug

(SUB FOR TH0751005)

1шт.

12

0751006

Filter

(SUB FOR TH0751006)

1шт.

13

0751404

Stop

(SUB FOR TH0751404)

1шт.

14

0751405

Spring

(SUB FOR TH0751405)

1шт.

15

0751406

O-Ring

(SUB FOR TH0751406)

1шт.

16

0751407

Cap

(SUB FOR TH0751407)

1шт.

17

0750904

Bolt

(SUB FOR TH0750904)

2шт.
