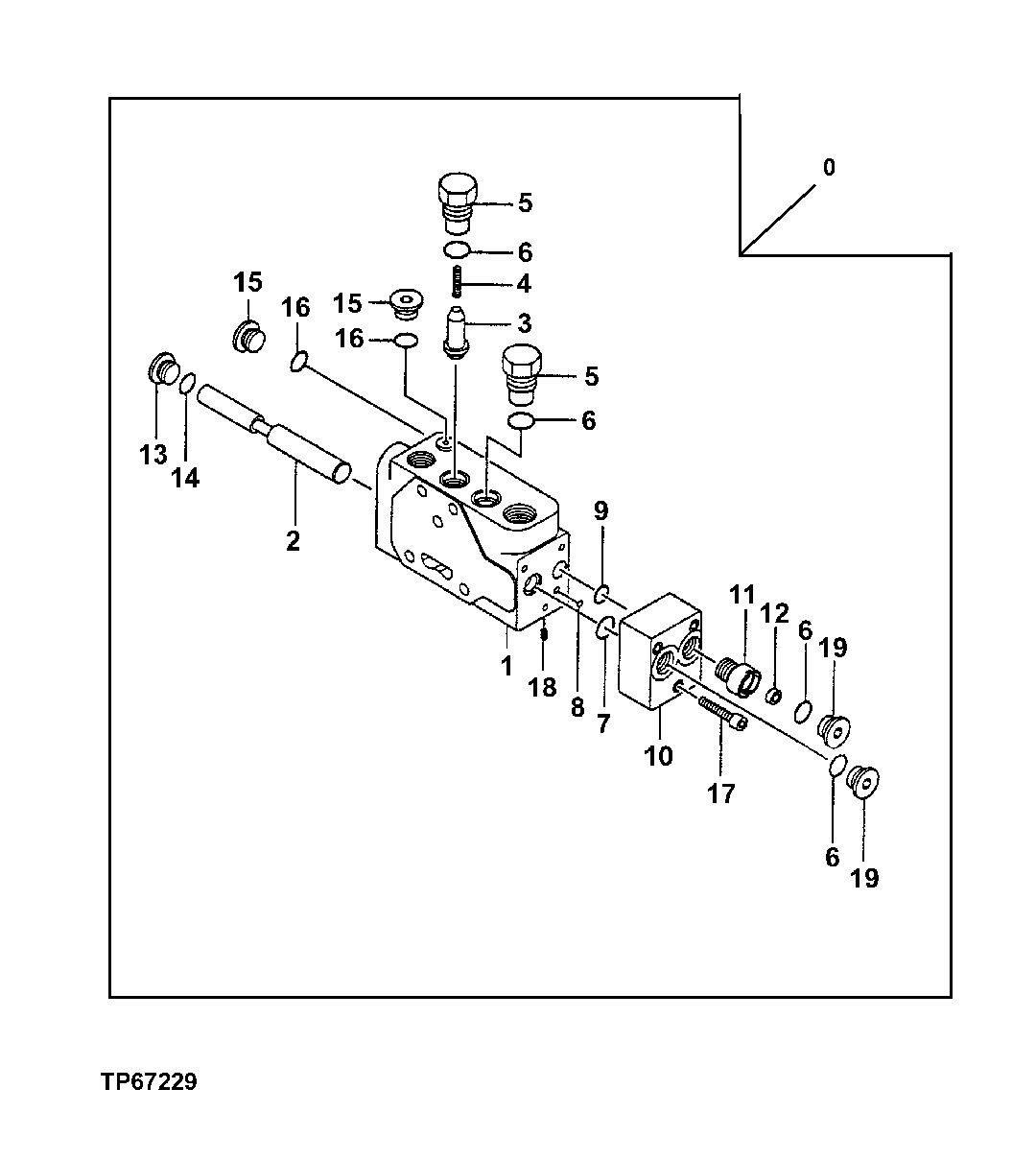

Запчасти John Deere 7ZTS 171 - CONTROL VALVE (4) 3360 HYDRAULIC SYSTEM

0

4438447

Flow Control Hyd. Valve

(SUB FOR TH4438447)(SECTION 4)

1шт.

1

Housing

1шт.

2

Spool

1шт.

3

0751001

Plunger

(SUB FOR TH0751001)

1шт.

4

0751002

Spring

(SUB FOR TH0751002)

1шт.

5

0751003

Plug

(SUB FOR TH0751003)

2шт.

6

O-Ring

4шт.

7

T111819

O-Ring

14.800 X 2.400 mm (0.583" X 3/32")

1шт.

8

4506405

O-Ring

4.800 X 1.900 mm (0.189" X 0.075") (SUB FOR TH102655)

1шт.

9

CH17167

O-Ring

9.800 X 1.900 mm (0.386" X 0.075")

1шт.

10

4438447

Flow Control Hyd. Valve

(SUB FOR TH0751004 AND 0751004)

1шт.

11

0751005

Plug

(SUB FOR TH0751005)

1шт.

12

0751006

Filter

(SUB FOR TH0751006)

1шт.

13

0600735

Plug

(SUB FOR TH0600735)

1шт.

14

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

15

0751007

Plug

(SUB FOR TH0751007)

2шт.

16

4506408

O-Ring

(SUB FOR TH101490)

2шт.

17

0751008

Bolt

(SUB FOR TH0751008)

3шт.

18

0751009

Plug

(SUB FOR TH0751009)

1шт.

19

0600724

Plug

(SUB FOR TH0600724)

2шт.
