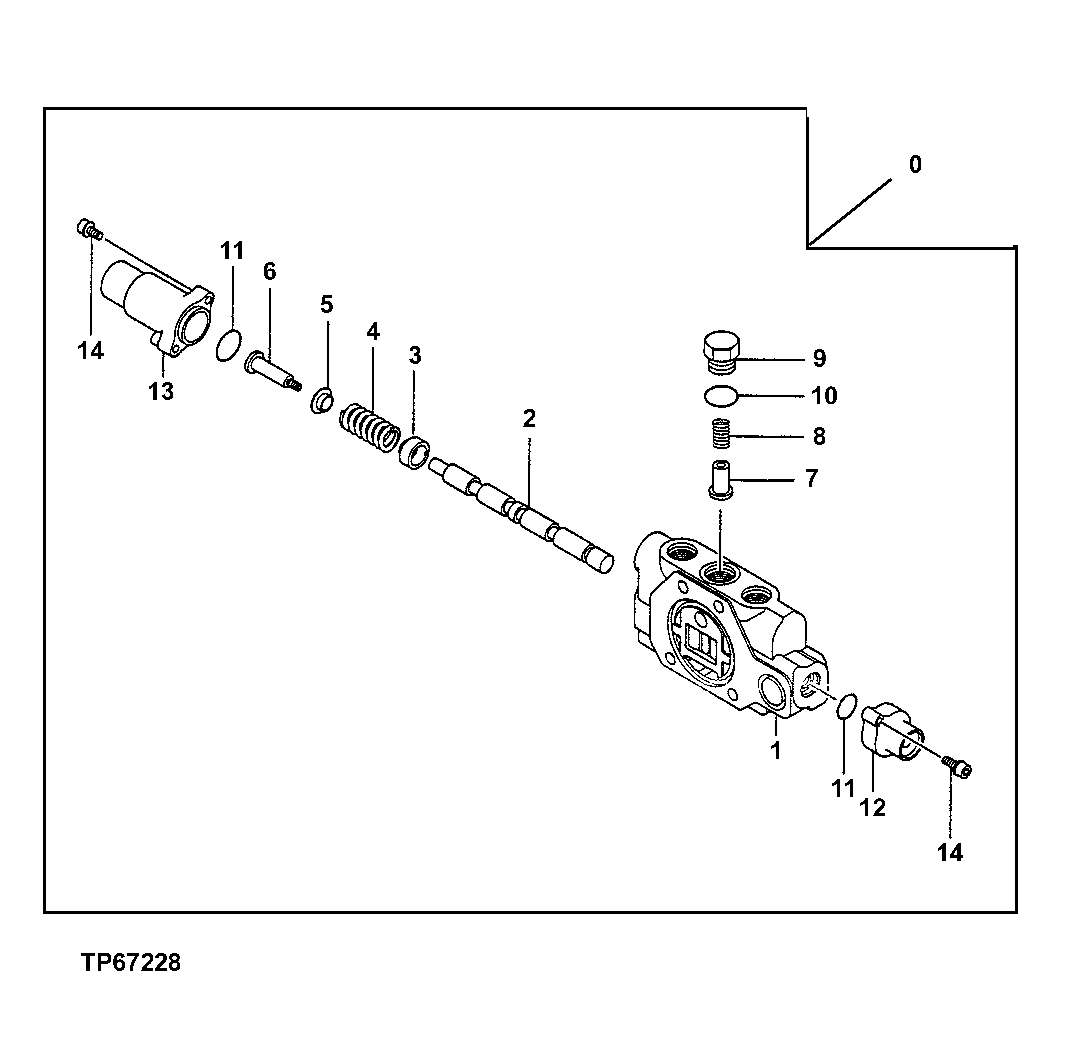

Запчасти John Deere 7ZTS 170 - CONTROL VALVE (3) 3360 HYDRAULIC SYSTEM

0

4438446

Flow Control Hyd. Valve

(SUB FOR 4438446)(SECTION 3)

1шт.

1

Housing

1шт.

2

Valve Spool

1шт.

3

Valve Seat

1шт.

4

Spring

1шт.

5

Valve Seat

1шт.

6

Bolt

1шт.

7

0750703

Plunger

(SUB FOR TH0750703)

1шт.

8

0750704

Spring

(SUB FOR TH0750704)

1шт.

9

0750705

Plug

(SUB FOR TH0750705)

1шт.

10

O-Ring

1шт.

11

0750901

O-Ring

(SUB FOR TH0750901)

2шт.

12

0750902

Cap

(SUB FOR TH0750902)

1шт.

13

0750903

Cap

(SUB FOR TH0750903)

1шт.

14

0750904

Bolt

(SUB FOR TH0750904)

4шт.
