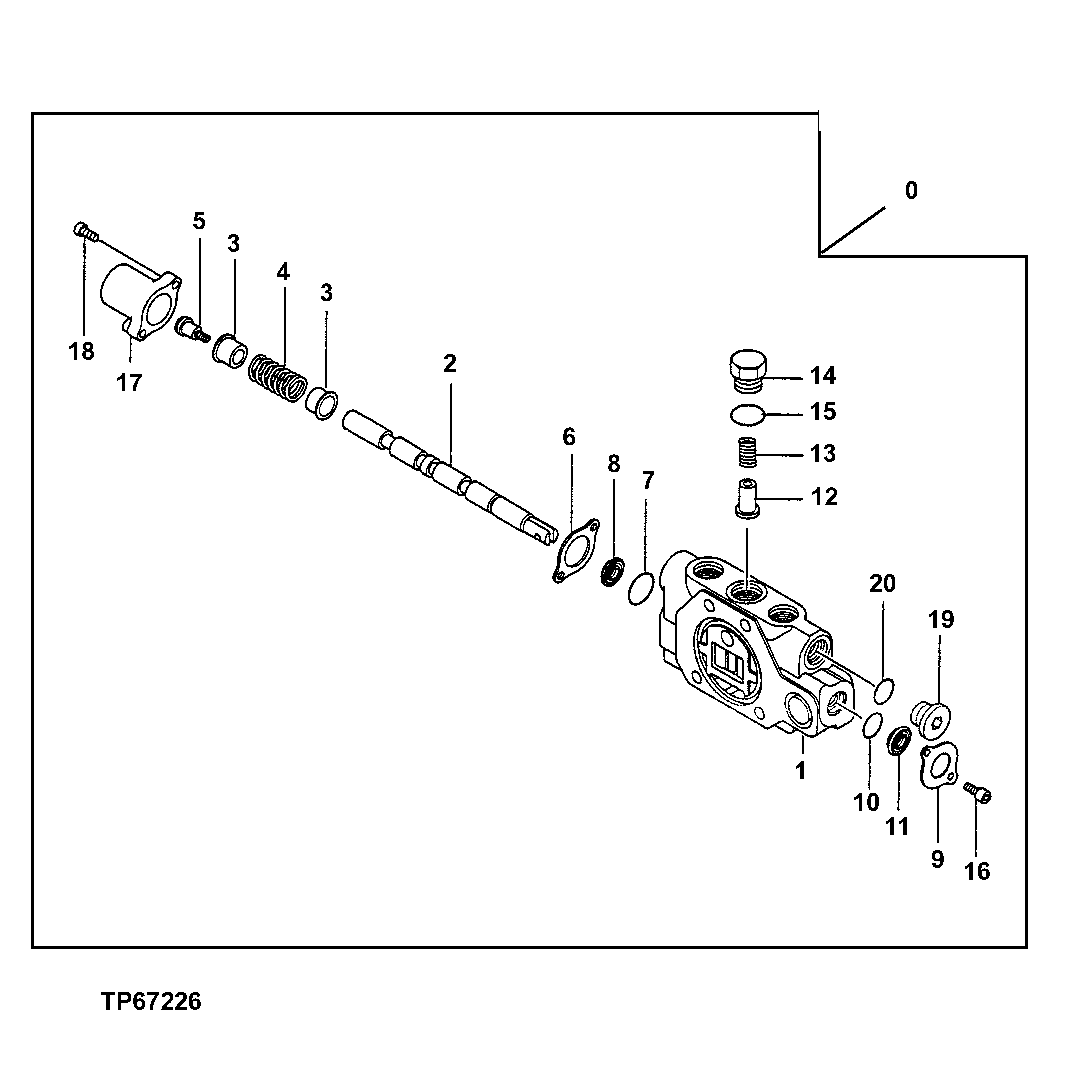

Запчасти John Deere 7ZTS 168 - CONTROL VALVE (1) 3360 HYDRAULIC SYSTEM

0

4438444

Flow Control Hyd. Valve

(SUB FOR TH4438444)(SECTION 1)

1шт.

1

Housing

1шт.

2

Valve Spool

1шт.

3

Valve Seat

2шт.

4

Spring

1шт.

5

Bolt

1шт.

6

Plate

1шт.

7

Ring

1шт.

8

Seal

1шт.

9

0750701

Plate

(SUB FOR TH0750701)

1шт.

10

Z985100

O-Ring

(SUB FOR THZ985100)

1шт.

11

0750702

Seal

(SUB FOR TH0750702)

1шт.

12

0750703

Plunger

(SUB FOR TH0750703)

1шт.

13

0750704

Spring

(SUB FOR TH0750704)

1шт.

14

0750705

Plug

(SUB FOR TH0750705)

1шт.

15

O-Ring

1шт.

16

0750706

Bolt

(SUB FOR TH0750706)

2шт.

17

0750707

Cap

(SUB FOR TH0750707)

1шт.

18

0750708

Bolt

(SUB FOR TH0750708)

2шт.

19

0600735

Plug

(SUB FOR TH0600735)

1шт.

20

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.
