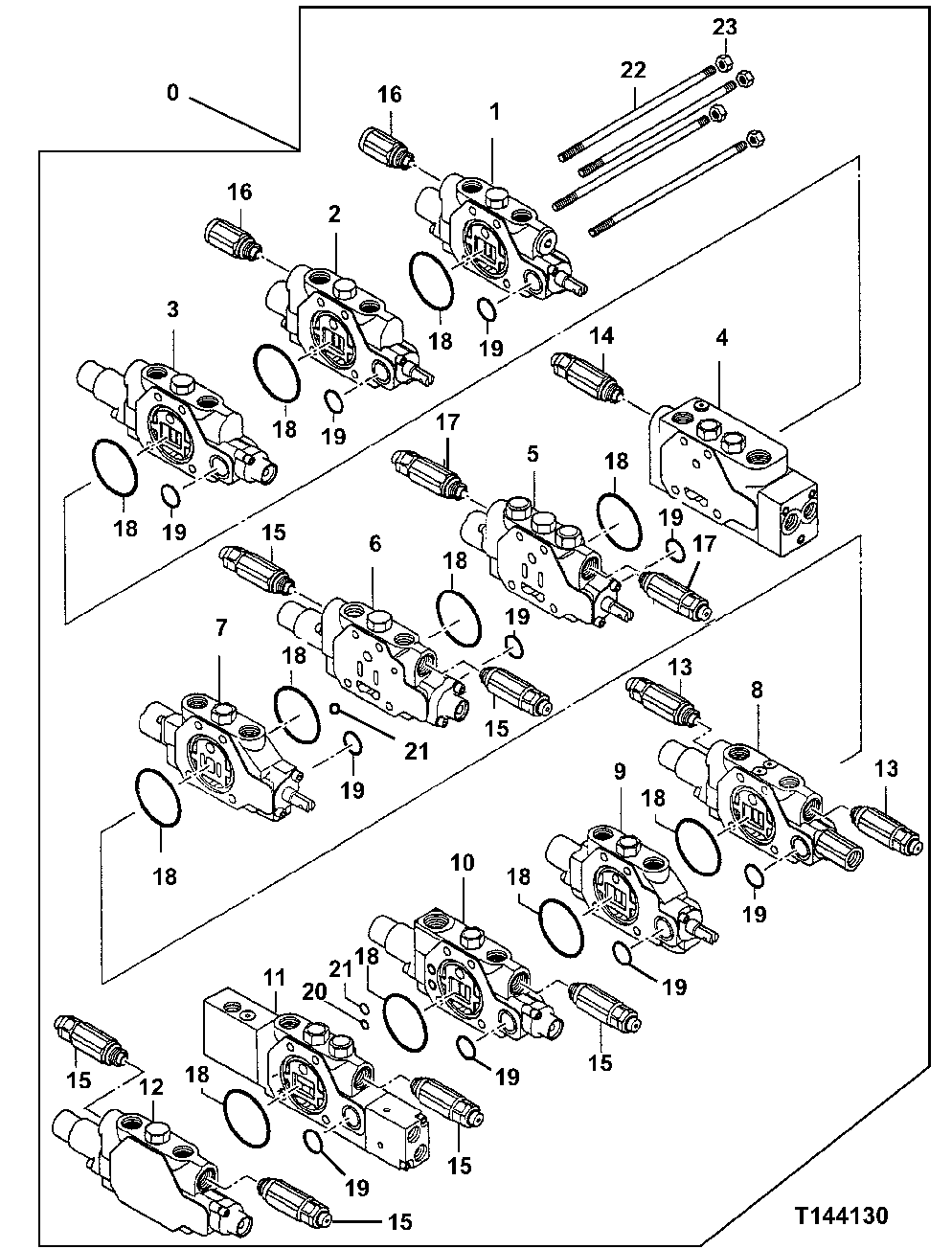

Запчасти John Deere 7ZTS 167 - Control Valve 3360 HYDRAULIC SYSTEM

0

Shut-Off Valve

SUB FOR TH4429091 AND 4449763 NLA

1шт.

1

4438444

Flow Control Hyd. Valve

SUB FOR TH4438444 See S eparate Page For Detail

1шт.

2

4438445

Flow Control Hyd. Valve

SUB FOR TH4438445 See S eparate Page For Detail

1шт.

3

4438446

Flow Control Hyd. Valve

SUB FOR TH4438446 See S eparate Page For Detail

1шт.

4

4438447

Flow Control Hyd. Valve

SUB FOR TH4438447 See S eparate Page For Detail

1шт.

5

Flow Control Hyd. Valve

TH4438448 AND 4438448 NLA See Separate Page For Detail

1шт.

6

Valve

SUB FOR TH4438449, 4438449 NL A See Separate Page For Detail

1шт.

7

4438654

Flow Control Hyd. Valve

SUB FOR TH4438654 See S eparate Page For Detail

1шт.

8

4438451

Flow Control Hyd. Valve

SUB FOR TH4438451 See S eparate Page For Detail

1шт.

9

4438655

Flow Control Hyd. Valve

SUB FOR TH4438655 See S eparate Page For Detail

1шт.

10

4438453

Flow Control Hyd. Valve

SUB FOR TH4438453 See S eparate Page For Detail

1шт.

11

4438454

Flow Control Hyd. Valve

SUB FOR TH4438454 See S eparate Page For Detail

1шт.

12

4438455

Flow Control Hyd. Valve

SUB FOR TH4438455 See S eparate Page For Detail

1шт.

13

0750601

Pressure Relief Valve

SUB FOR TH0750601

2шт.

14

0750602

Pressure Relief Valve

SUB FOR TH0750602

1шт.

15

0750603

Pressure Relief Valve

SUB FOR TH0750603

6шт.

16

0750604

Flow Control Hyd. Valve

SUB FOR TH0750604

2шт.

17

4437254

Pressure Relief Valve

Auxiliary Relief Valve

2шт.

18

0750606

O-Ring

SUB FOR TH0750606

11шт.

19

CH12329

Packing

11шт.

20

CH11569

Packing

1шт.

21

CH17167

O-Ring

9.800 X 1.900 mm (0.386" X 0.075")

2шт.

22

0750607

Stud

SUB FOR TH0750607

4шт.

23

14M7273

Nut

M8 SUB FOR TH0600732 OR 0600732

4шт.
