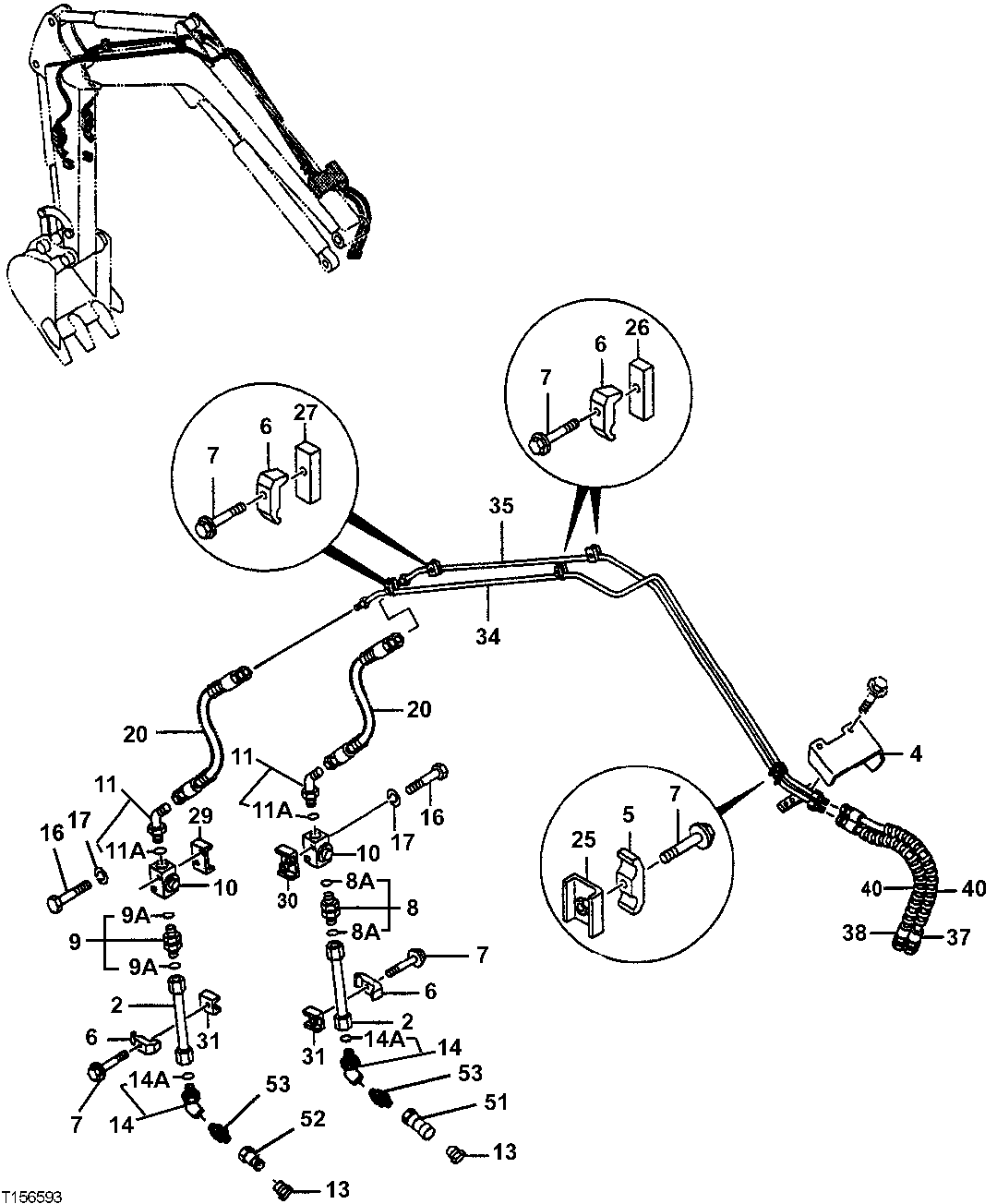

Запчасти John Deere 7ZTS 166 - AUXILIARY FRONT PIPING 3360 HYDRAULIC SYSTEM

2

9743591

Oil Line

(SUB FOR TH9743591)

2шт.

4

8074144

Cover

(SUB FOR TH8074144)

1шт.

5

4189858

Clamp

(SUB FOR AT251262 OR 4354753)

1шт.

6

4354754

Block Clamp

(SUB FOR AT251263)

6шт.

7

19M7572

Cap Screw

M10 X 45

7шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

7шт.

12M7066

Lock Washer

10 mm

7шт.

8

4276850

Adapter Fitting

(SUB FOR AT251187)

1шт.

8A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

9

4276850

Adapter Fitting

(SUB FOR AT251187)

1шт.

9A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

10

4287721

Flow Control Hyd. Valve

(SUB FOR AT251200)

2шт.

11

4081336

Elbow Fitting

(SUB FOR AT251158)

2шт.

11A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

13

4294858

Drain Plug

(SUB FOR AT251217)

2шт.

14

4293263

Elbow Fitting

(SUB FOR AT251209)

2шт.

14A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

16

19M7185

Cap Screw

M8 X 60

4шт.

17

12M7056

Lock Washer

8 mm

4шт.

20

4427569

Hydraulic Hose

(SUB FOR TH4427569)

2шт.

25

9745354

Weld Nut

(SUB FOR AT251635)

1шт.

26

4417300

Weld Nut

(SUB FOR TH4417300)

2шт.

27

4392161

Weld Nut

(SUB FOR AT251337)

2шт.

29

9737005

Weld Nut

(SUB FOR AT251621)

1шт.

30

9737006

Weld Nut

(SUB FOR AT251622)

1шт.

31

9743546

Weld Nut

(SUB FOR AT251623)

2шт.

34

8078200

Oil Line

(SUB FOR TH8078200)

1шт.

35

8078201

Oil Line

(SUB FOR TH8078201)

1шт.

37

4429713

Hydraulic Hose

(SUB FOR TH4429713)

1шт.

38

4429714

Hydraulic Hose

(SUB FOR TH4429714)

1шт.

40

Hose Guard

(MAKE FROM XHG-075, BULK MATER IAL CUT TO LENGTH) (SUB FOR TH4 320661, 4044420 ( 4327294 NLA))

2шт.

51

M131862

Hyd. Quick-Connect Coupler

1шт.

52

M131863

Hydr. Quick Coupler Plug

1шт.

53

T185315

Fitting

2шт.
