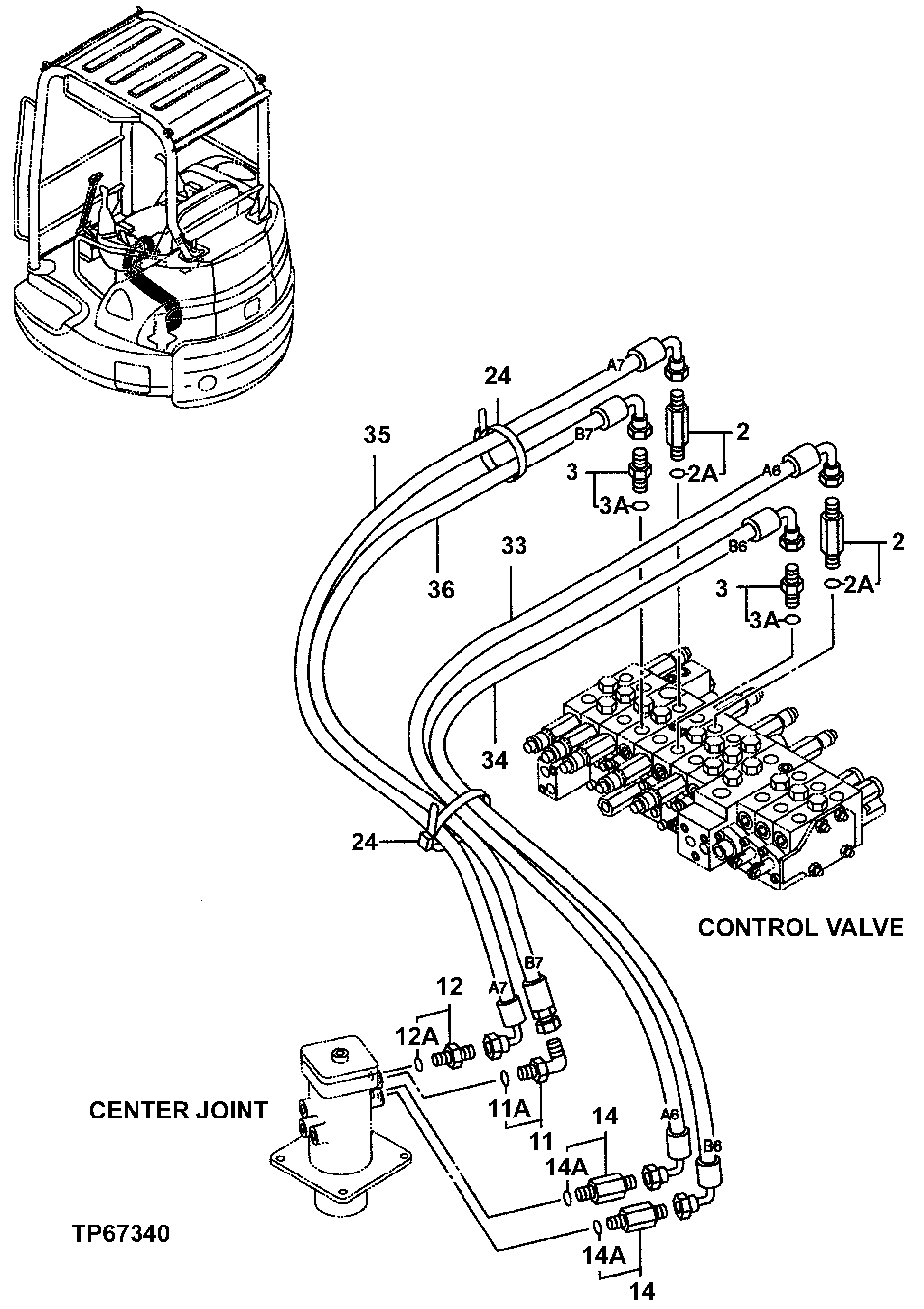

Запчасти John Deere 7ZTS 161 - MAIN PIPING 3360 HYDRAULIC SYSTEM

2

4368210

Adapter Fitting

(SUB FOR AT251302)

2шт.

2A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

3

4042031

Adapter Fitting

(SUB FOR TH103891)

2шт.

3A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

11

4037761

Hose Fitting

(SUB FOR TH103894)

1шт.

11A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

12

4042031

Adapter Fitting

(SUB FOR TH103891)

1шт.

12A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

14

4368210

Adapter Fitting

(SUB FOR AT251302)

2шт.

14A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

24

H77698

Tie Band

2шт.

33

4427880

Hydraulic Hose

(A6) (SUB FOR TH4427880)

1шт.

34

4427881

Hydraulic Hose

(B6) (SUB FOR TH4427881)

1шт.

35

4427882

Hydraulic Hose

(A7) (SUB FOR TH4427882)

1шт.

36

4427883

Hydraulic Hose

(B7) (SUB FOR TH4427883)

1шт.
