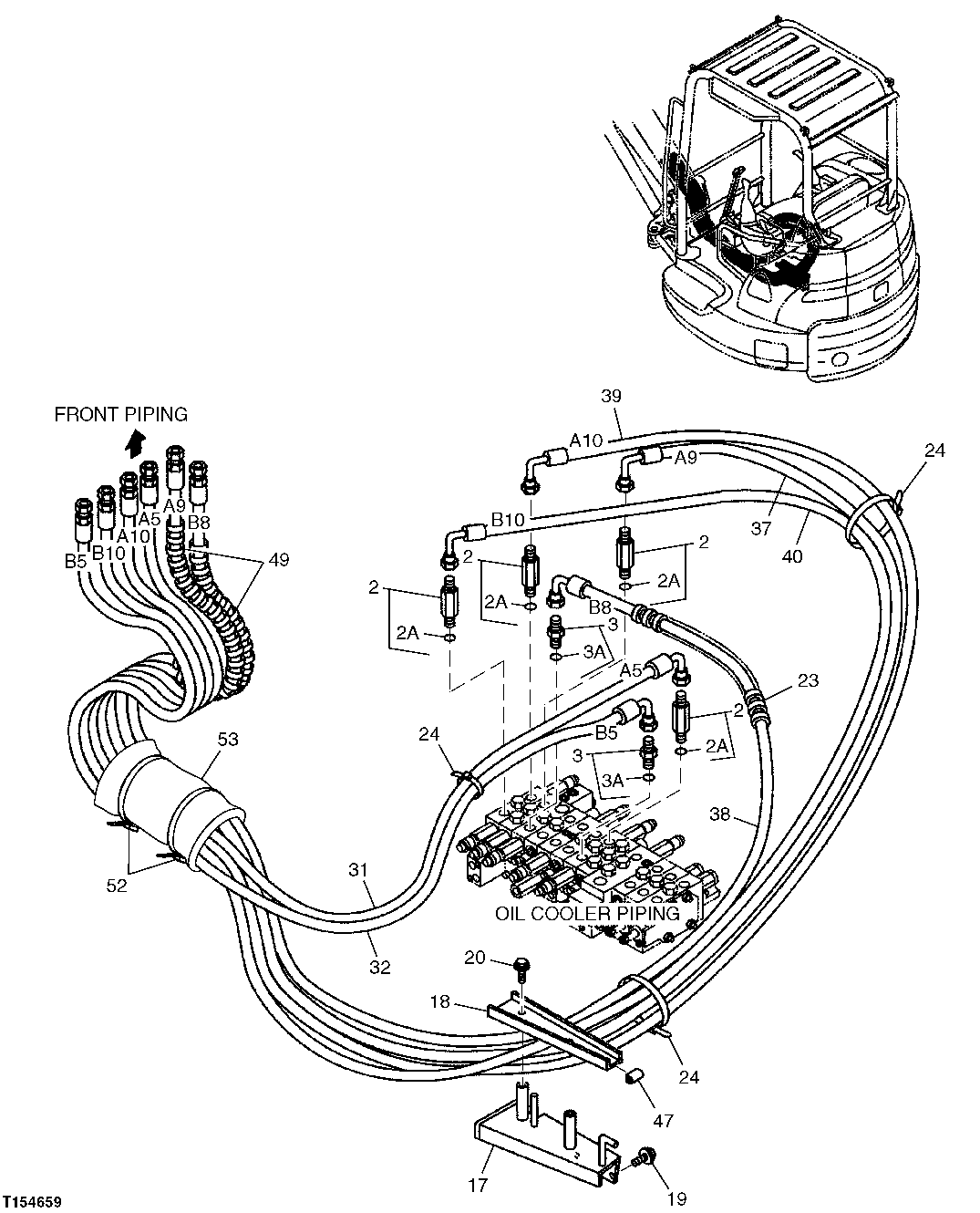

Запчасти John Deere 7ZTS 159 - MAIN PIPING 3360 HYDRAULIC SYSTEM

2

4368210

Adapter Fitting

(SUB FOR AT251302)

4шт.

2A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

3

4042031

Adapter Fitting

(SUB FOR TH103891)

2шт.

3A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

17

8076333

Bracket

(SUB FOR TH8076333)

1шт.

18

4420034

Bracket

(SUB FOR TH4420034)

1шт.

19

19M7402

Cap Screw

M10 X 25

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

20

19M7932

Cap Screw

M8 X 16

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm

2шт.

23

4427924

Hose Guard

(SUB FOR TH4427924)

1шт.

24

H77698

Tie Band

3шт.

31

4427878

Hydraulic Hose

(A5) (SUB FOR TH4427878)

1шт.

32

4427879

Hydraulic Hose

(B5) (SUB FOR TH4427879)

1шт.

37

4457885

Hydraulic Hose

(A9) (SUB FOR TH4457885)

1шт.

38

4427884

Hydraulic Hose

(B8) (SUB FOR TH4427884)

1шт.

39

4427886

Hydraulic Hose

(A10) (SUB FOR TH4427886)

1шт.

40

4427887

Hydraulic Hose

(B10) (SUB FOR TH4427887)

1шт.

47

4431045

Isolator

(SUB FOR TH4431045)

1шт.

49

Hose Guard

(MAKE FROM XHG-075, BULK MATER IAL CUT TO LENGTH) (SUB FOR TH4 320661, 4044420 ( 4327294 NLA))

2шт.

52

H77698

Tie Band

(SUB FOR TH4323613 OR 4323613)

2шт.

53

4370544

Sheet

1шт.
