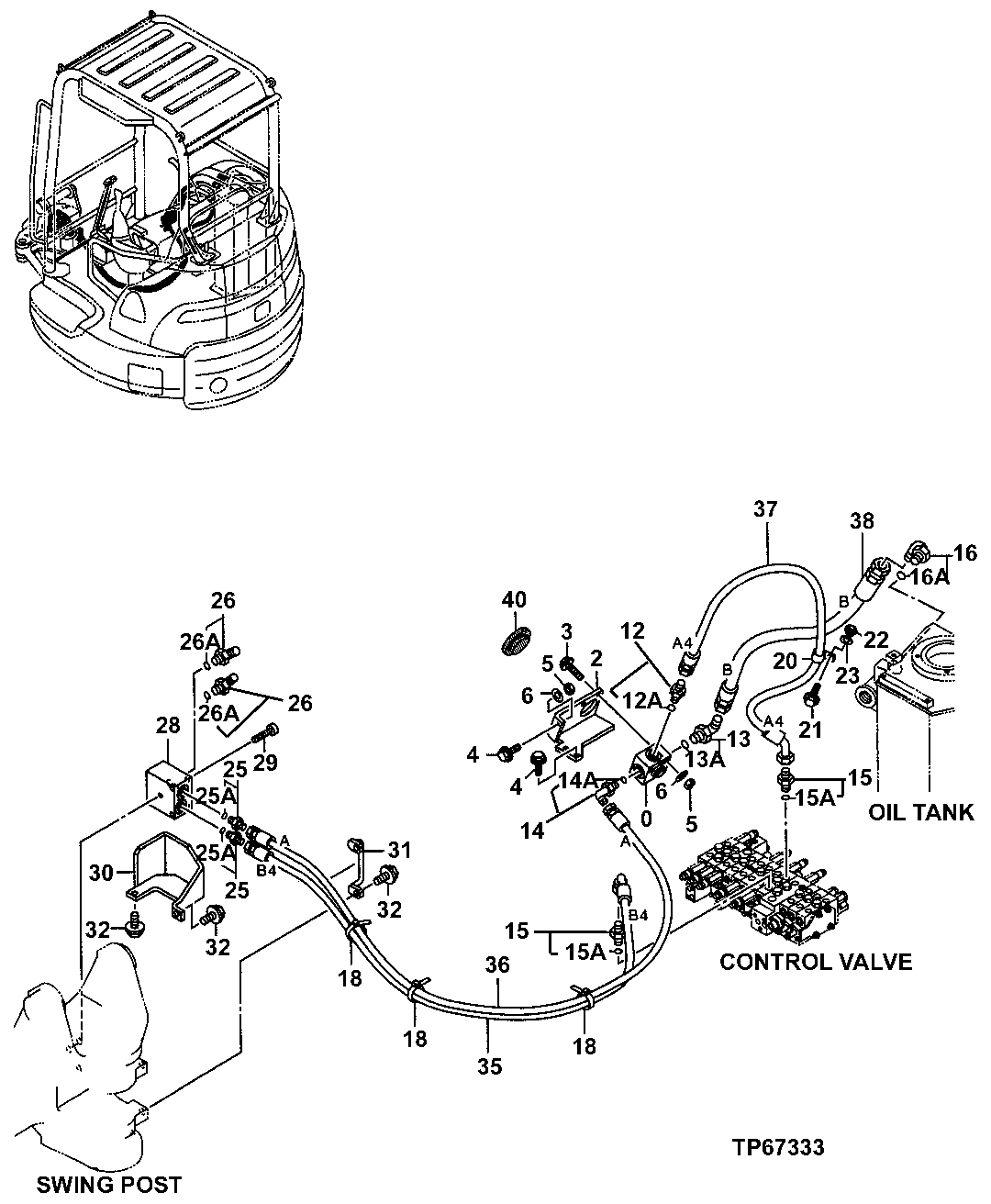

Запчасти John Deere 7ZTS 158 - AUXILIARY PILOT PIPING 3360 HYDRAULIC SYSTEM

0

4340948

Selective Control Valve

(SUB FOR AT251240)

1шт.

2

3085065

Bracket

(SUB FOR TH3085065)

1шт.

3

19M8402

Cap Screw

M8 X 65

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm

2шт.

4

19M7407

Cap Screw

M8 X 25

3шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

3шт.

12M7056

Lock Washer

8 mm

3шт.

5

14M7273

Nut

M8

3шт.

6

12M7036

Lock Plate

3шт.

12

4042032

Adapter Fitting

(SUB FOR TH101294)

1шт.

12A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

13

4169598

Elbow Fitting

(SUB FOR AT251168)

1шт.

13A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

14

4037760

Elbow Fitting

(SUB FOR AT251156)

1шт.

14A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

15

4419501

Fitting

(SUB FOR TH4419501)

2шт.

15A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

16

4169596

Elbow Fitting

(SUB FOR TH4169596)

1шт.

16A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

18

H77698

Tie Band

3шт.

20

T24432

Clamp

1шт.

21

19M7881

Screw

M8 X 20

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

12M7056

Lock Washer

8 mm

1шт.

22

14M7273

Nut

M8

1шт.

23

12M7036

Lock Plate

1шт.

25

4042032

Adapter Fitting

(SUB FOR TH101294)

2шт.

25A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

26

4037760

Elbow Fitting

(SUB FOR AT251156)

2шт.

26A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

28

3078513

Manifold

(SUB FOR AT251136)

1шт.

29

19M8335

Screw

M8 X 55

3шт.

30

8078075

Cover

(SUB FOR TH8078075)

1шт.

31

8078295

Guide

(SUB FOR TH8078295)

1шт.

32

19M7402

Cap Screw

M10 X 25

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

35

4428551

Hydraulic Hose

(B4) (SUB FOR TH4428551)

1шт.

36

4428552

Hydraulic Hose

(A) (SUB FOR TH4428552)

1шт.

37

4428553

Hydraulic Hose

(A4) (SUB FOR TH4428553)

1шт.

38

4428043

Hydraulic Hose

(B) (SUB FOR TH4428043)

1шт.

40

4408091

Bushing

(SUB FOR AT258387)

1шт.
