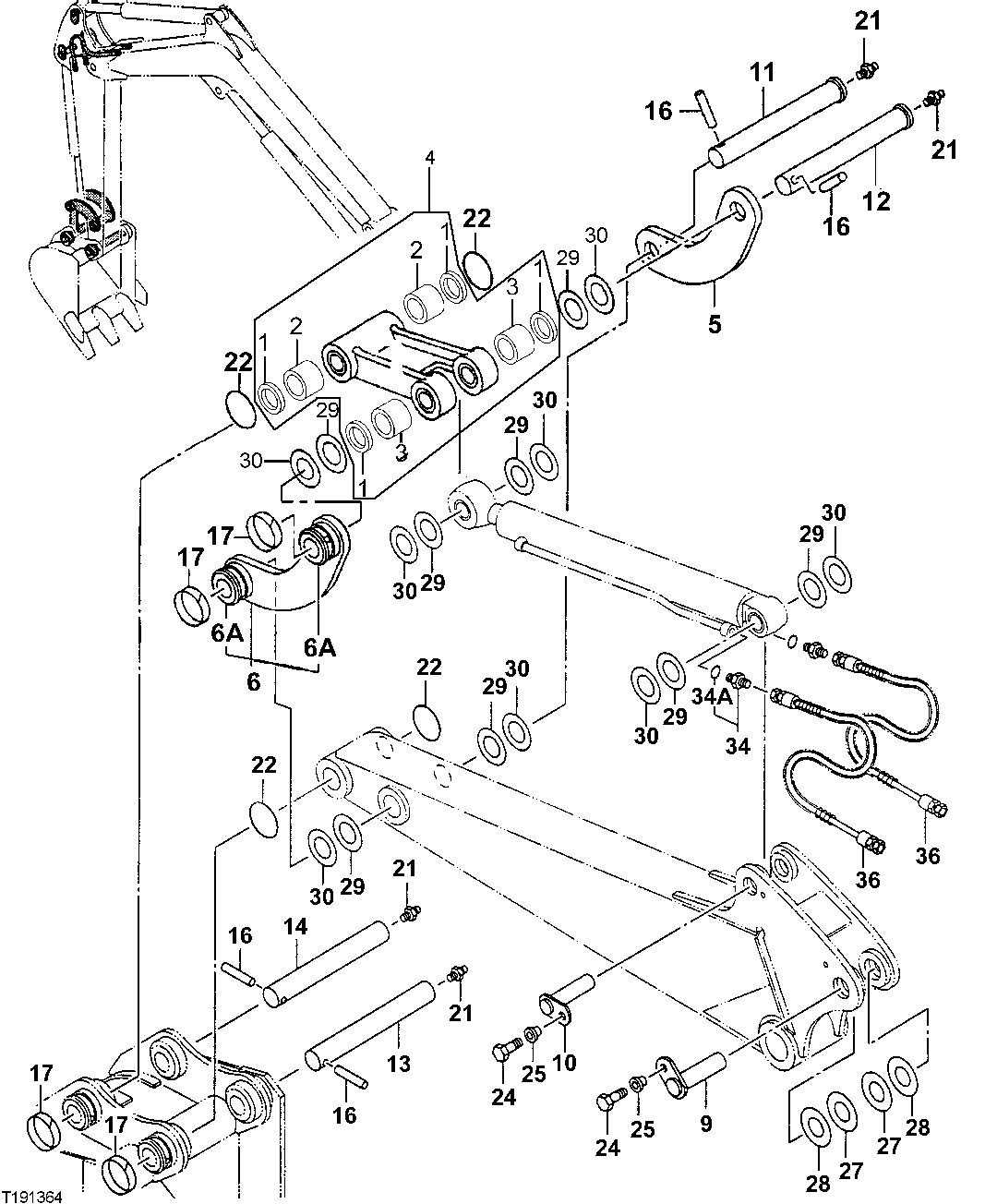

Запчасти John Deere 7ZTS 152 - ARM SUPPORT 3340 BACKHOE AND EXCAVATOR FRAMES

1

4473085

Seal

SUB FOR 4275478

6шт.

2

FYD00002611

Bushing

SUB FOR 4423773, 4351962 AND 4338534

2шт.

3

4375744

Bushing

SUB FOR TH4351960

2шт.

4

9194867

Link

SUB FOR TH8060347

1шт.

5

4408809

Link

SUB FOR TH4408809

1шт.

6

8074511

Link

SUB FOR TH8074511

1шт.

6A

4351031

Stop

SUB FOR TH4351031

2шт.

9

9751493

Pin Fastener

SUB FOR 9750945

1шт.

10

9750940

Pin Fastener

SUB FOR TH9750940

1шт.

11

4332018

Pin Fastener

SUB FOR TH4332018

1шт.

12

4332019

Pin Fastener

SUB FOR TH4332019

1шт.

13

4332020

Pin Fastener

SUB FOR TH4332020

1шт.

14

4332021

Pin Fastener

SUB FOR TH4332021

1шт.

16

4244708

Pin Fastener

SUB FOR AT200417

4шт.

17

4351621

Retainer

SUB FOR TH4351621

4шт.

21

TH100074

Lubrication Fitting

4шт.

22

4275520

O-Ring

SUB FOR TH4275520

4шт.

24

19M8011

Cap Screw

M12 X 30

2шт.

25

4339354

Bushing

SUB FOR TH4339354

2шт.

27

4367635

Shim

SUB FOR TH4367635, 0.5

2шт.

28

4367636

Shim

SUB FOR TH4367636, 0.8

2шт.

29

4367639

Shim

SUB FOR TH4367639, 0.5

8шт.

30

4367640

Shim

SUB FOR TH4367640, 0.8

8шт.

34

4042031

Adapter Fitting

SUB FOR TH103891

2шт.

34A

CH11570

O-Ring

1шт.

36

4427567

Hydraulic Hose

SUB FOR TH4427567

2шт.
