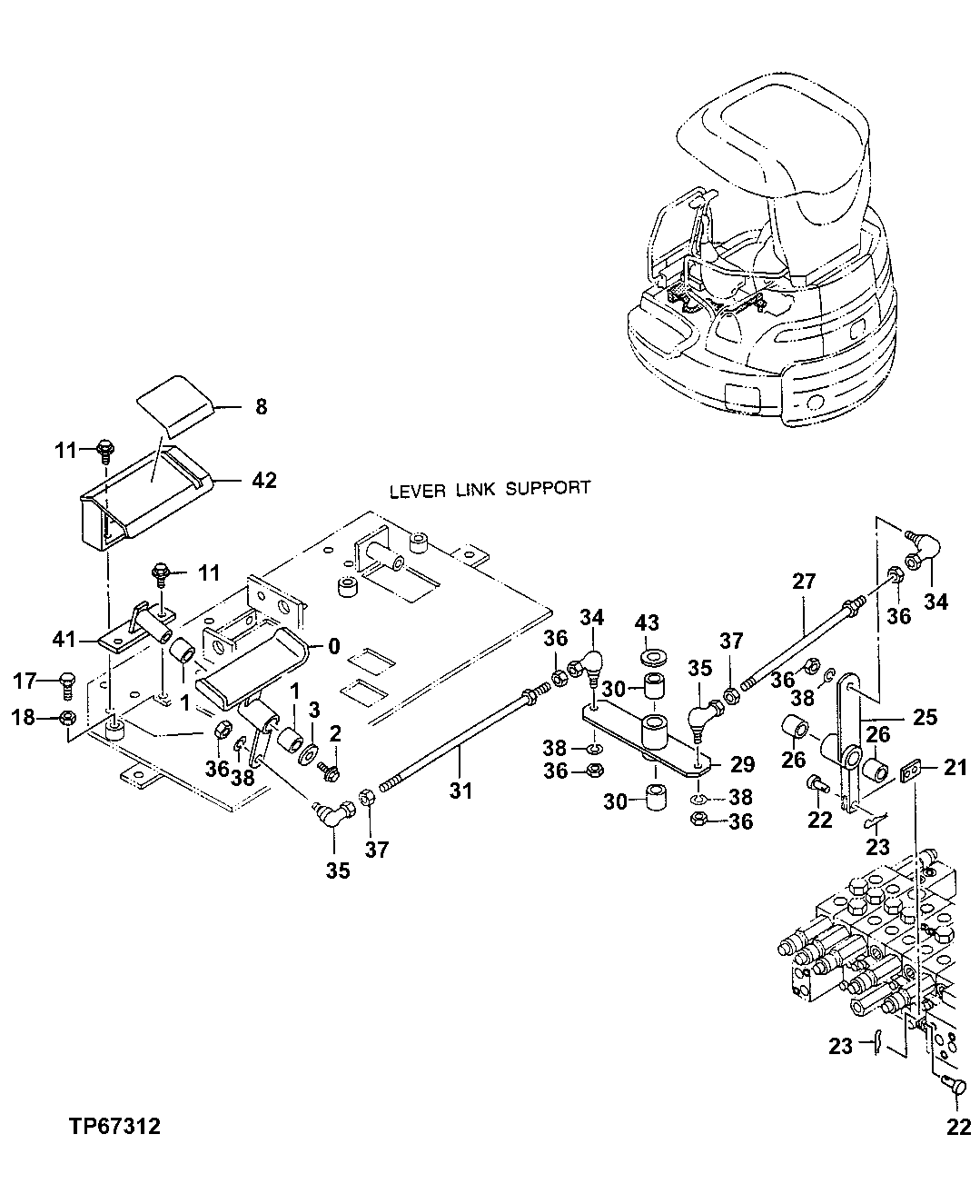

Запчасти John Deere 7ZTS 146 - Attachment Pedal 3315 Controls Linkage

0

8074027

Link

(SUB FOR TH8074027)

1шт.

1

4280298

Bushing

(SUB FOR AT251196)

2шт.

2

19M7881

Screw

M8 X 20

1шт.

12M7056

Lock Washer

8 mm

1шт.

3

4346037

Washer

(SUB FOR AT250610)

1шт.

8

4345731

Mat

(SUB FOR AT255935)

1шт.

11

19M7881

Screw

M8 X 20

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

12M7056

Lock Washer

8 mm

4шт.

17

19M7295

Cap Screw

M8 X 45

2шт.

18

14M7273

Nut

M8

2шт.

21

4333080

Link

1шт.

4448717

Link

1шт.

22

4279607

Pin Fastener

(SUB FOR AT251194)

2шт.

23

4365839

Spring Locking Pin

(SUB FOR AT251295)

2шт.

25

Link

( TH8076148 NO LONGER AVAILABLE) ( SUB 8083017 ) (ALSO ORDER 4448717)

1шт.

8083017

Link

(SUB FOR TH8083017)

1шт.

26

4280298

Bushing

(SUB FOR AT251196)

2шт.

27

9752599

Rod

(SUB FOR TH9752599)

1шт.

29

9752606

Link

(SUB FOR TH9752606)

1шт.

30

4280298

Bushing

(SUB FOR AT251196)

2шт.

31

9752600

Rod

(SUB FOR TH9752600)

1шт.

34

4287792

Ball Joint

(SUB FOR AT251201)

2шт.

35

4287793

Ball Joint

(L) (SUB FOR AT251202)

2шт.

36

14M7273

Nut

M8

6шт.

37

M580008

Nut

(L) (SUB FOR AT256017)

2шт.

38

12M7056

Lock Washer

8 mm

4шт.

41

8074062

Bracket

(SUB FOR AT251591)

1шт.

42

8077868

Cover

(SUB FOR AT251608)

1шт.

43

4294498

Shim

(SUB FOR AT251213)

1шт.
