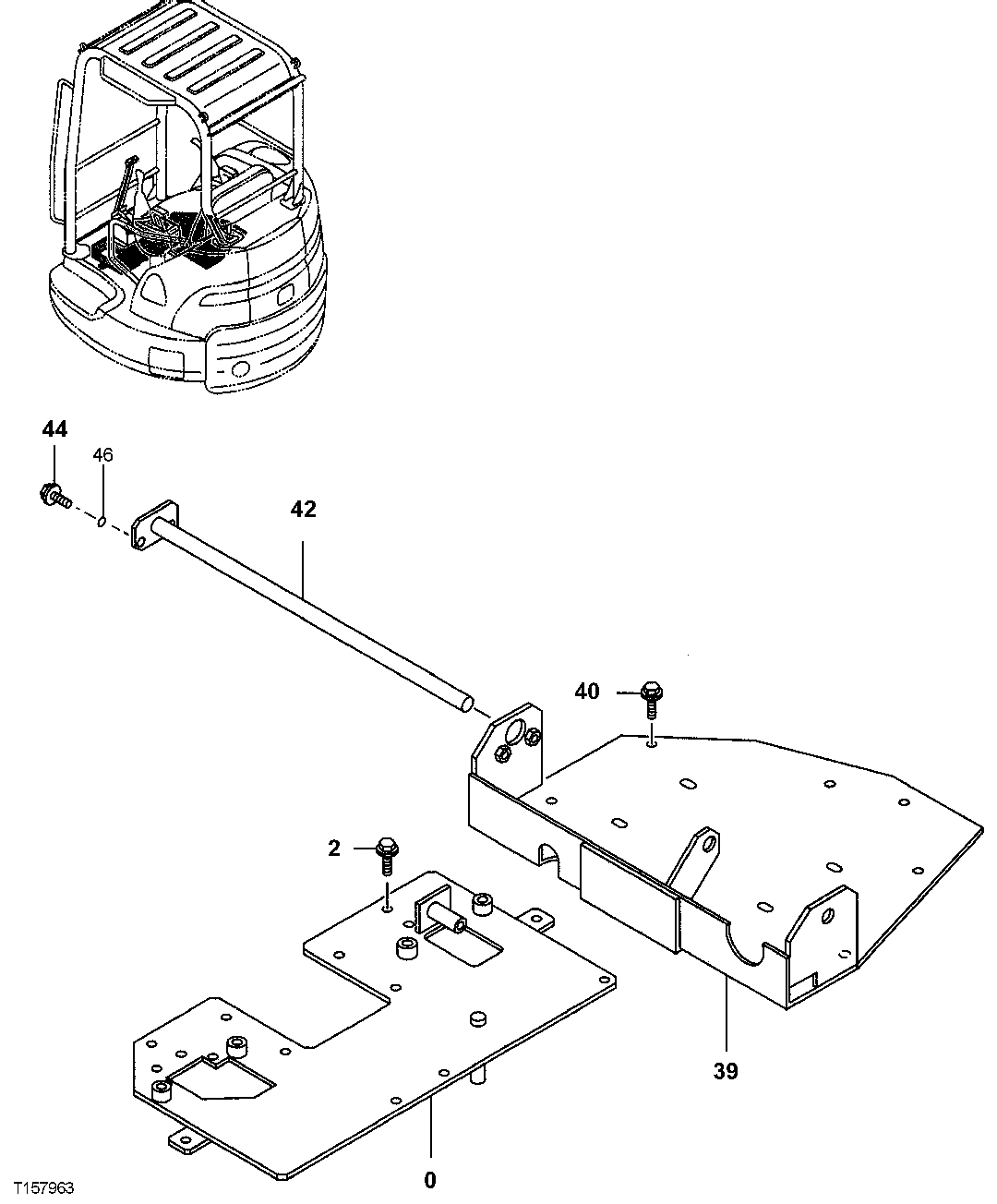

Запчасти John Deere 7ZTS 144 - LEVER LINK SUPPORT 3315 Controls Linkage

0

7038576

Support

1шт.

7039092

Bracket

1шт.

2

19M7662

Cap Screw

M10 X 30

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

39

7036458

Bracket

(SUB FOR TH7036458)

1шт.

40

19M7662

Cap Screw

M10 X 30

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

42

9752589

Pin Fastener

(SUB FOR TH9752589)

1шт.

44

19M7407

Cap Screw

M8 X 25

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm

2шт.

46

24M7036

Washer

9 X 16 X 1.600 mm

2шт.
