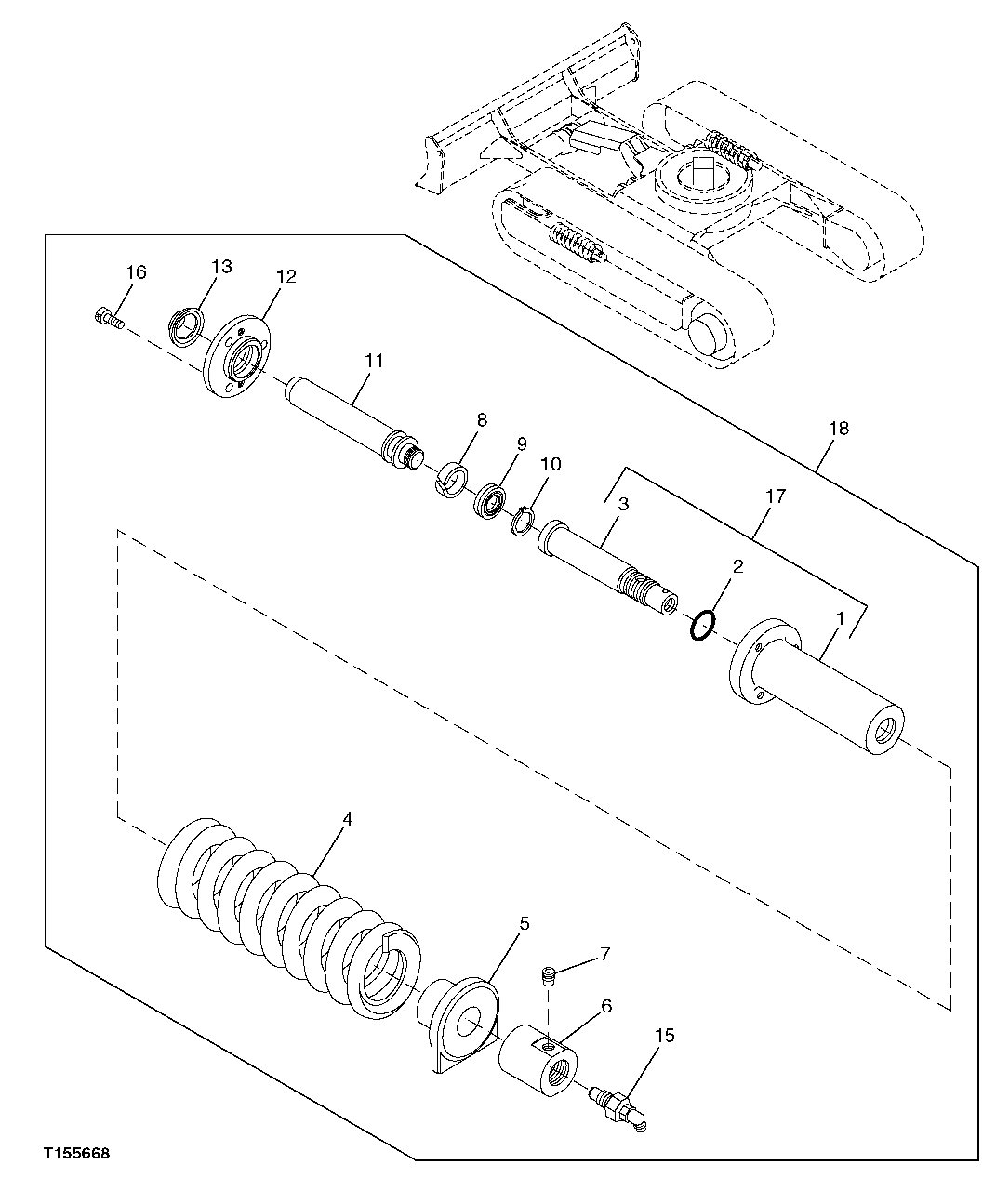

Запчасти John Deere 7ZTS 3 - Track Adjuster 0130 Track Systems

1

3056319

Hydraulic Cylinder Barrel

(SUB FOR TH3056319)

1шт.

2

TH987581

O-Ring

1шт.

3

3056320

Rod

(SUB FOR TH3056320)

1шт.

4

3056317

Spring

(SUB FOR TH3056317)

1шт.

5

4276123

Plate

(SUB FOR TH4276123)

1шт.

6

4276122

Retainer

(SUB FOR TH4276122)(SHOWN IN RUBBER TRAC K POSITION - INVERT FOR STEEL TRACK USE)

1шт.

7

4276113

Plug

(SUB FOR AT251183)

1шт.

8

4276120

Wear Ring

(SUB FOR TH4276120)

1шт.

9

4276121

Packing

(SUB FOR TH4276121)

1шт.

10

40M7080

Snap Ring

1шт.

11

3056321

Hydraulic Cylinder Rod

(SUB FOR TH3056321)

1шт.

12

3056322

Flange

(SUB FOR TH3056322)

1шт.

13

4276124

Seal

(SUB FOR TH4276124)

1шт.

15

4276114

Flow Control Hyd. Valve

(SUB FOR AT251184)

1шт.

16

0362709

Bolt

(SUB FOR AT127455)

3шт.

17

9102266

Cylinder

1шт.

18

9132837

Adjuster

2шт.
