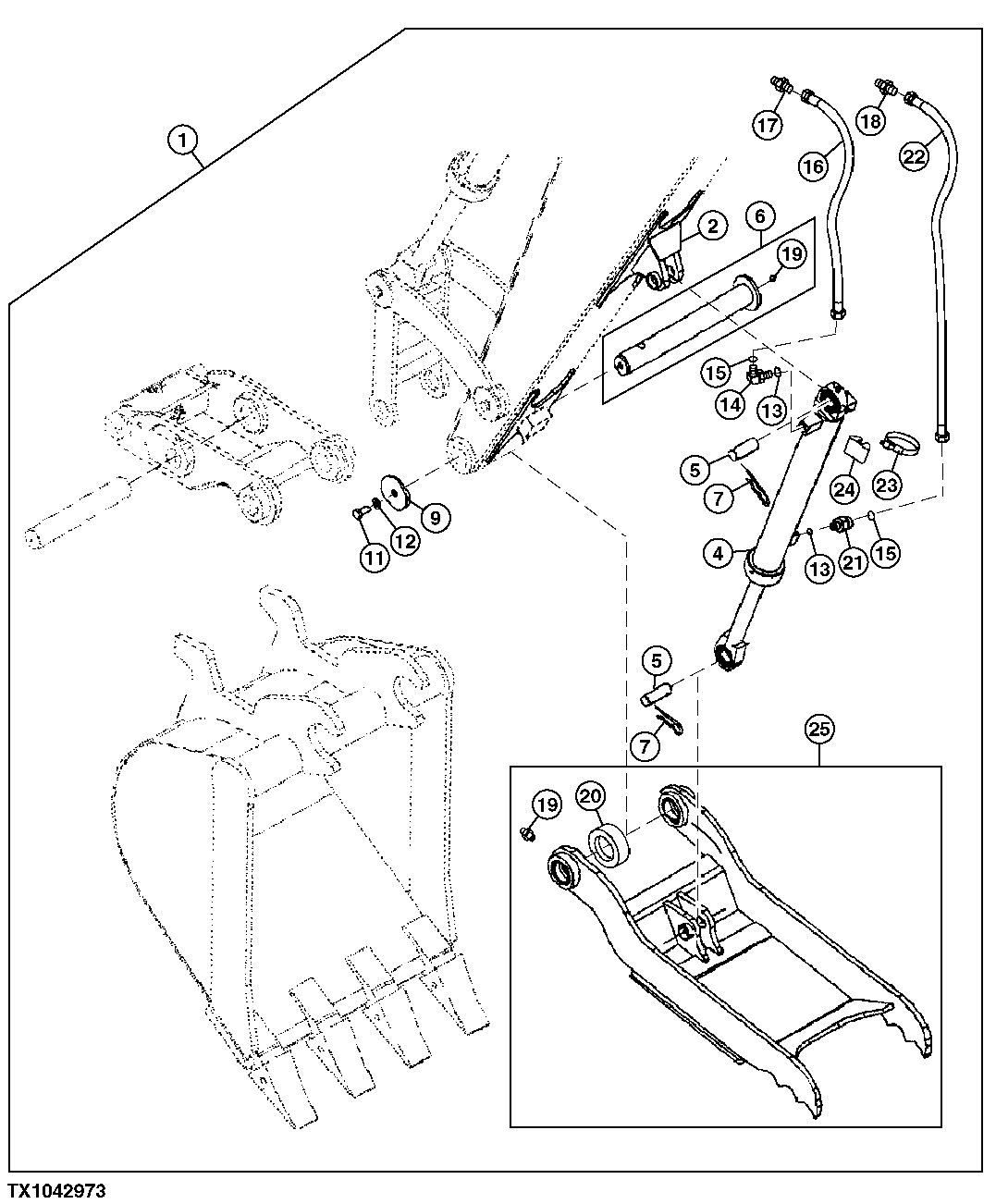

Запчасти John Deere 7ZTS 126 - Hydraulic Bucket Clamp (Replacement) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

1

AT318255G

Field Installation Kit

(WHOLE GOODS)

1шт.

2

AT317646

Bracket

1шт.

4

AH216639

Hydraulic Cylinder

1шт.

5

L101620

Pin Fastener

2шт.

6

AT317651

Pin Fastener

1шт.

7

11M7030

Cotter Pin

5 X 40 mm (SUB FOR 11M 7073, THIS APPLICATION)

2шт.

9

L77320

Washer

1шт.

11

19H2472

Cap Screw

1/2" X 1"

1шт.

12

12H301

Lock Washer

1/2"

1шт.

13

R26448

O-Ring

(SUB FOR R28782, THIS APPLICATION)

2шт.

14

38H1004

Elbow Fitting

(SUB FOR 38H1435, THIS APPLICATION)

1шт.

15

T77613

O-Ring

2шт.

16

AT280275

Hydraulic Hose

1шт.

17

M131863

Hydr. Quick Coupler Plug

1шт.

18

M131862

Hyd. Quick-Connect Coupler

1шт.

19

T162396

Lubrication Fitting

2шт.

20

T213162

Bushing

2шт.

21

38H1160

Adapter Fitting

(SUB FOR 38H1309, THIS APPLICATION)

1шт.

22

AT322165

Hydraulic Hose

1шт.

23

AR21999

Hose Clamp

1шт.

24

T105774

Guide

1шт.

25

AT316569

Clamp

1шт.
