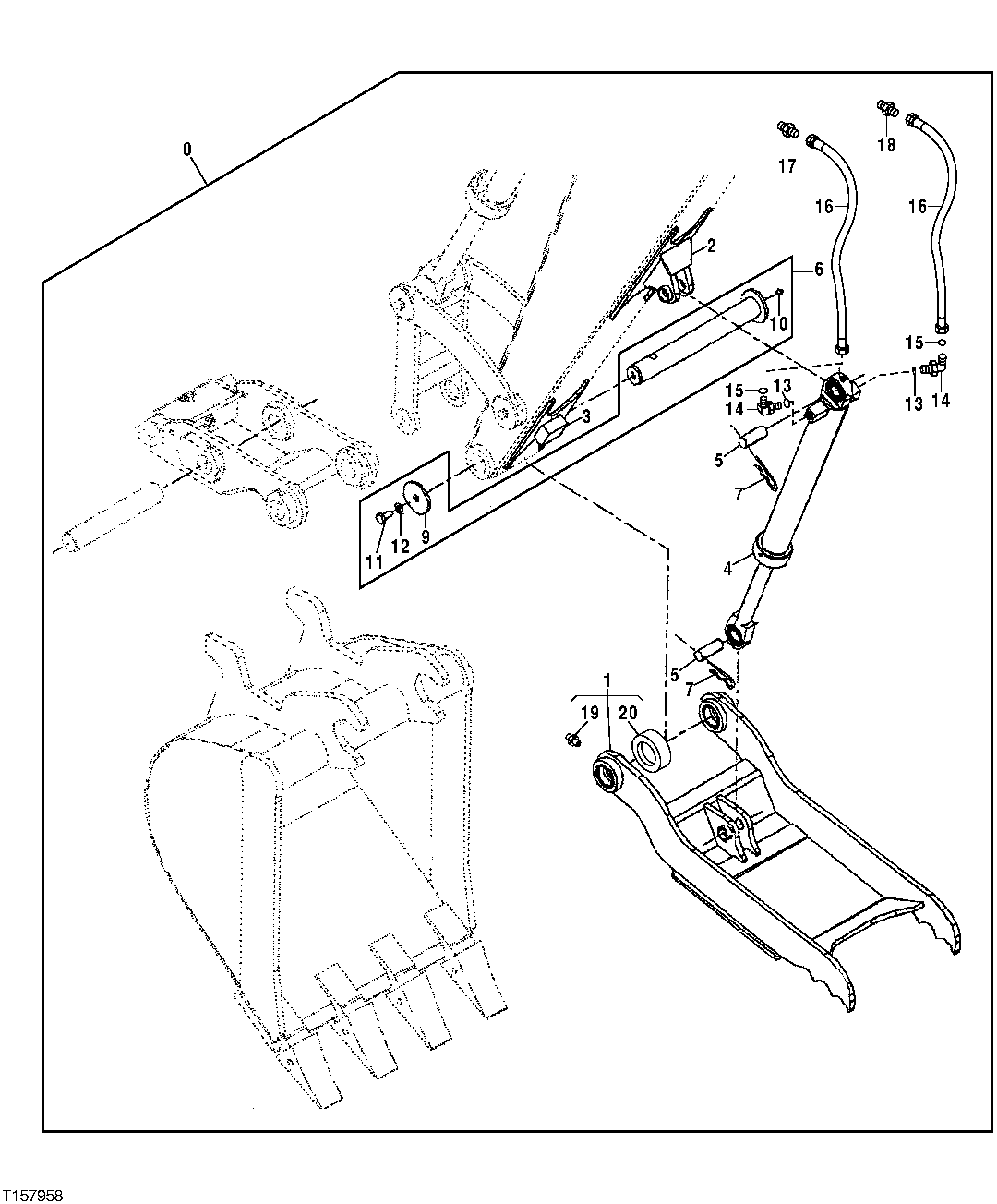

Запчасти John Deere 7ZTS 124 - Hydraulic Bucket Clamp (Replacement) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

0

Clamp

(HYDRAULIC BUCKET) WHOLEGOODS ( AT2801 86 NO LONGER AVAILABLE) (SUB AT308601)

1шт.

1

AT316569

Clamp

(SUB FOR AT191401 OR AT309144)

1шт.

2

T185261

Plate

1шт.

3

T185262

Plate

1шт.

4

AH216639

Hydraulic Cylinder

(ALSO ORDER 38H1309 AND AT3221 65 ) (SUB FOR AT191402 OR AT309 145)(COMPONENTS ON ANOTHER PAGE )

1шт.

5

T185222

Pin

2шт.

6

AT317651

Pin Fastener

1шт.

7

AT260407

Spring Locking Pin

2шт.

9

L77320

Washer

13 X 72 X 8 mm (0.512" X 2.835" X 0.315")

1шт.

10

AT260410

Lubrication Fitting

1шт.

11

19H2472

Cap Screw

1/2" X 1"

1шт.

12

12H301

Lock Washer

1/2"

1шт.

13

R28782

O-Ring

2шт.

14

38H1435

Elbow Fitting

2шт.

15

T77613

O-Ring

2шт.

16

AT280275

Hydraulic Hose

(1/2 INCH X 37 INCH X 11/16 INCH)

2шт.

17

M131862

Hyd. Quick-Connect Coupler

FEMALE

1шт.

18

M131863

Hydr. Quick Coupler Plug

MALE

1шт.

19

AT260410

Lubrication Fitting

2шт.

20

T185267

Bushing

2шт.
