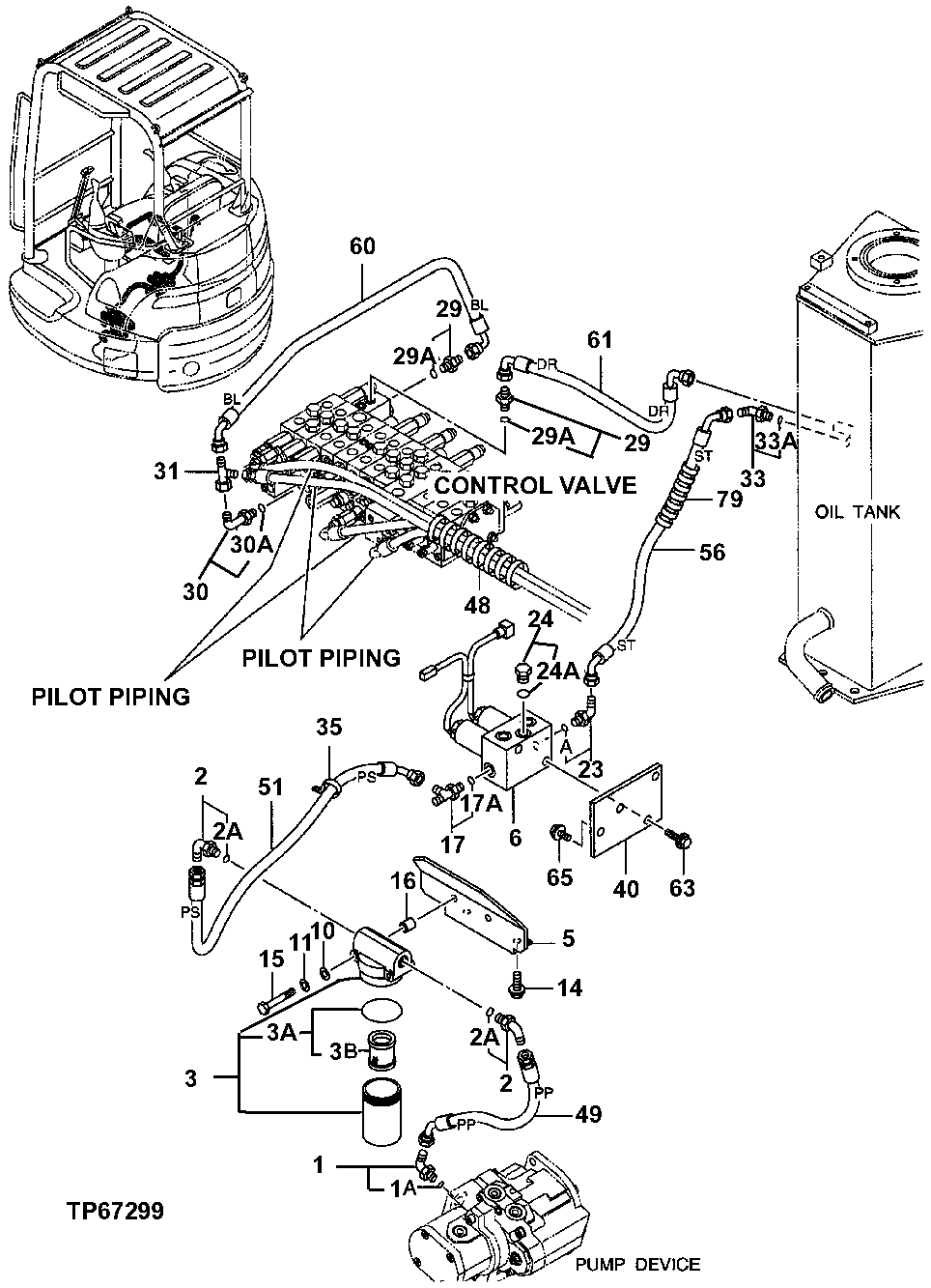

Запчасти John Deere 7ZTS 106 - PILOT PIPINGS 2160 Vehicle Hydraulics

1

4037761

Hose Fitting

SUB FOR TH103894

1шт.

1A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

2

4094319

Elbow Fitting

SUB FOR AT251159

2шт.

2A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

3

4272379

Filter

SUB FOR AT251181

1шт.

3A

4294130

Filter Element

SUB FOR AT251210

1шт.

3B

Filter Element

NLA

1шт.

5

8084184

Bracket

SUB FOR TH8074142, 8074142 OR TH8084184

1шт.

6

4615209

Solenoid Valve

SUB FOR 4415398

1шт.

10

12M7054

Lock Washer

19 mm

2шт.

11

12M7006

Lock Washer

6 mm

2шт.

14

19M7407

Cap Screw

M8 X 25

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm

2шт.

15

19M7763

Cap Screw

M6 X 75

2шт.

16

4277425

Spacer

SUB FOR AT251189

2шт.

17

4368225

Tee Fitting

SUB FOR AT251306

1шт.

17A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

23

4037761

Hose Fitting

SUB FOR TH103894

1шт.

23A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

24

4093624

Drain Plug

SUB FOR AT318013; SUB FOR TH102536

1шт.

24A

M800650

Packing

1шт.

29

4042030

Adapter Fitting

SUB FOR TH105939

2шт.

29A

M800650

Packing

1шт.

30

4368213

Elbow Fitting

SUB FOR AT251303

1шт.

30A

M800650

Packing

1шт.

31

4420020

Fitting

SUB FOR AT258401

1шт.

33

4037761

Hose Fitting

SUB FOR TH103894

1шт.

33A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

35

R73384

Clamp

SUB FOR TH108597 OR 4190253

1шт.

40

4423123

Plate

SUB FOR TH4423123

1шт.

48

Hose Guard

MF XHG-075, CTL SUB FOR TH4 320661, 4044420, 4327294 NLA

1шт.

50

4428036

Hydraulic Hose

PP SUB FOR TH4428036

1шт.

51

4427897

Hydraulic Hose

PS SUB FOR TH4427897

1шт.

56

TH4427896

Hydraulic Hose

ST

1шт.

60

4427903

Hydraulic Hose

BL SUB FOR TH4427903

1шт.

61

4427904

Hydraulic Hose

DR SUB FOR TH4427904

1шт.

63

19M7662

Cap Screw

M10 X 30

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

65

19M8008

Cap Screw

M8 X 35

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm

2шт.

79

4395984

Hose Guard

SUB FOR TH4395984

1шт.
