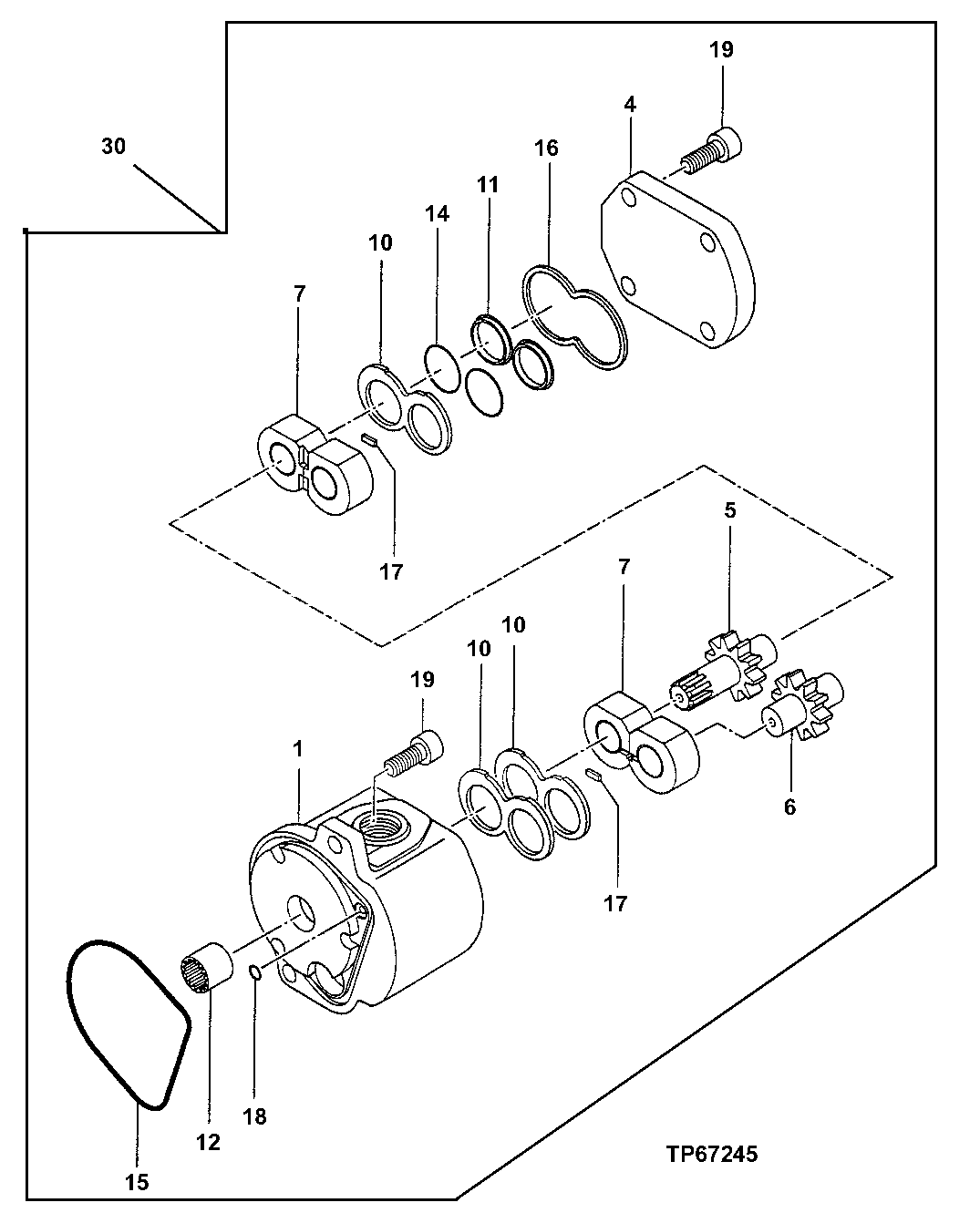

Запчасти John Deere 7ZTS 100 - MAIN HYDRAULIC PUMP GEAR COMPONENTS 2160 Vehicle Hydraulics

1

Housing

1шт.

4

0748001

Cover

(SUB FOR TH0748001)

1шт.

5

Gear

1шт.

6

Gear

1шт.

7

Plate

2шт.

10

0295002

Plate

(SUB FOR TH106820)

3шт.

11

0295003

Guide

(SUB FOR TH106821)

2шт.

12

0748002

Coupling

(SUB FOR TH0748002)

1шт.

14

0295006

O-Ring

(SUB FOR TH105862)

2шт.

15

CH17212

Packing

1шт.

16

0295004

Ring

(SUB FOR TH105860)

1шт.

17

Ring

2шт.

18

0669106

O-Ring

(SUB FOR AT215735)

1шт.

19

19M8533

Screw

M10 X 25 (SUB FOR TH105863)

6шт.

30

4438459

Hydraulic Pump

(SUB FOR TH4438459)

1шт.
