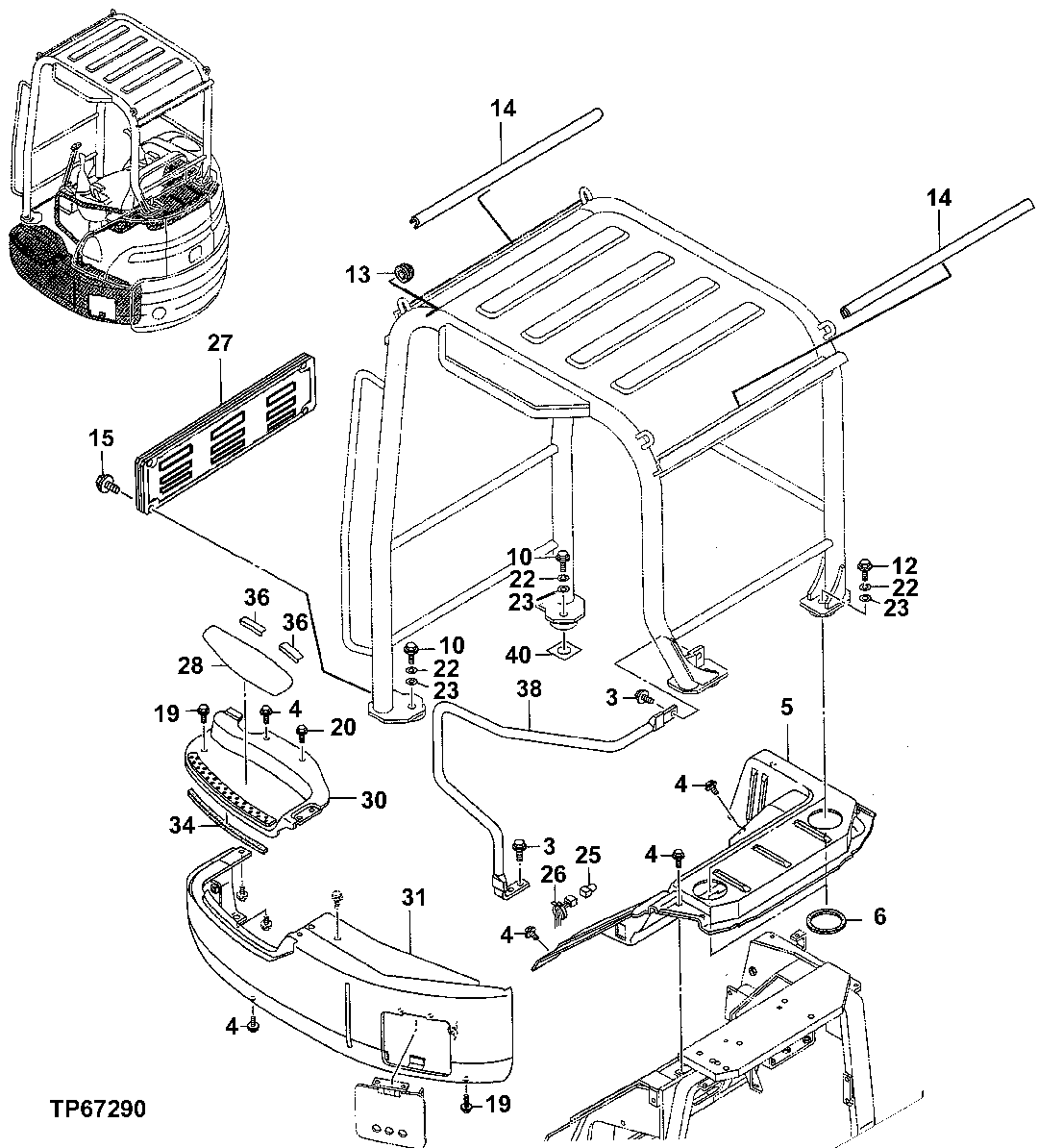

Запчасти John Deere 7ZTS 78 - TOPS FRAME, MOUNTING PARTS AND REAR COVER 1810 Operator Enclosure

0

6018641

Canopy

SUB FOR AT258436

1шт.

3

19M7662

Cap Screw

M10 X 30

3шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

3шт.

12M7066

Lock Washer

10 mm

3шт.

4

19M7881

Screw

M8 X 20

10шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

10шт.

Washer

12M7065 NLA

10шт.

5

4615662

Cover

SUB FOR 4428511, TH4428511

1шт.

6

4416050

Seal

SUB FOR AT258397

2шт.

10

19M7135

Cap Screw

M16 X 70

2шт.

12

19M8295

Cap Screw

M16 X 55

2шт.

13

4207699

Bushing

SUB FOR AT121399

1шт.

14

4427072

Seal

SUB FOR AT258415

2шт.

15

19M7407

Cap Screw

M8 X 25

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

Washer

12M7065 NLA

4шт.

19

19M8008

Cap Screw

M8 X 35

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

20

19M7932

Cap Screw

M8 X 16

2шт.

Washer

12M7065 NLA

2шт.

22

12M7069

Lock Washer

16 mm

4шт.

23

24M7053

Washer

17 X 30 X 3 mm SUB FOR THJ 253116, J253116 OR A590116

4шт.

25

4392691

Wiring Harness

SUB FOR TH4392691

1шт.

26

H77698

Tie Band

2шт.

27

3089894

Guard

SUB FOR TH3089894

1шт.

28

H21259

Mat

ANTI-SKID, TRIM TO FIT

1шт.

30

7038522

Cover

SUB FOR TH7038522

1шт.

31

6019164

Cover

SUB FOR TH6019164

1шт.

34

4429104

Isolator

SUB FOR TH4429104

1шт.

36

4430638

Label

SUB FOR TH4430638

2шт.

38

Handrail

( TH7038420 AND 7038420 NLA)

1шт.

40

4427494

Washer

SUB FOR TH4427494

1шт.
