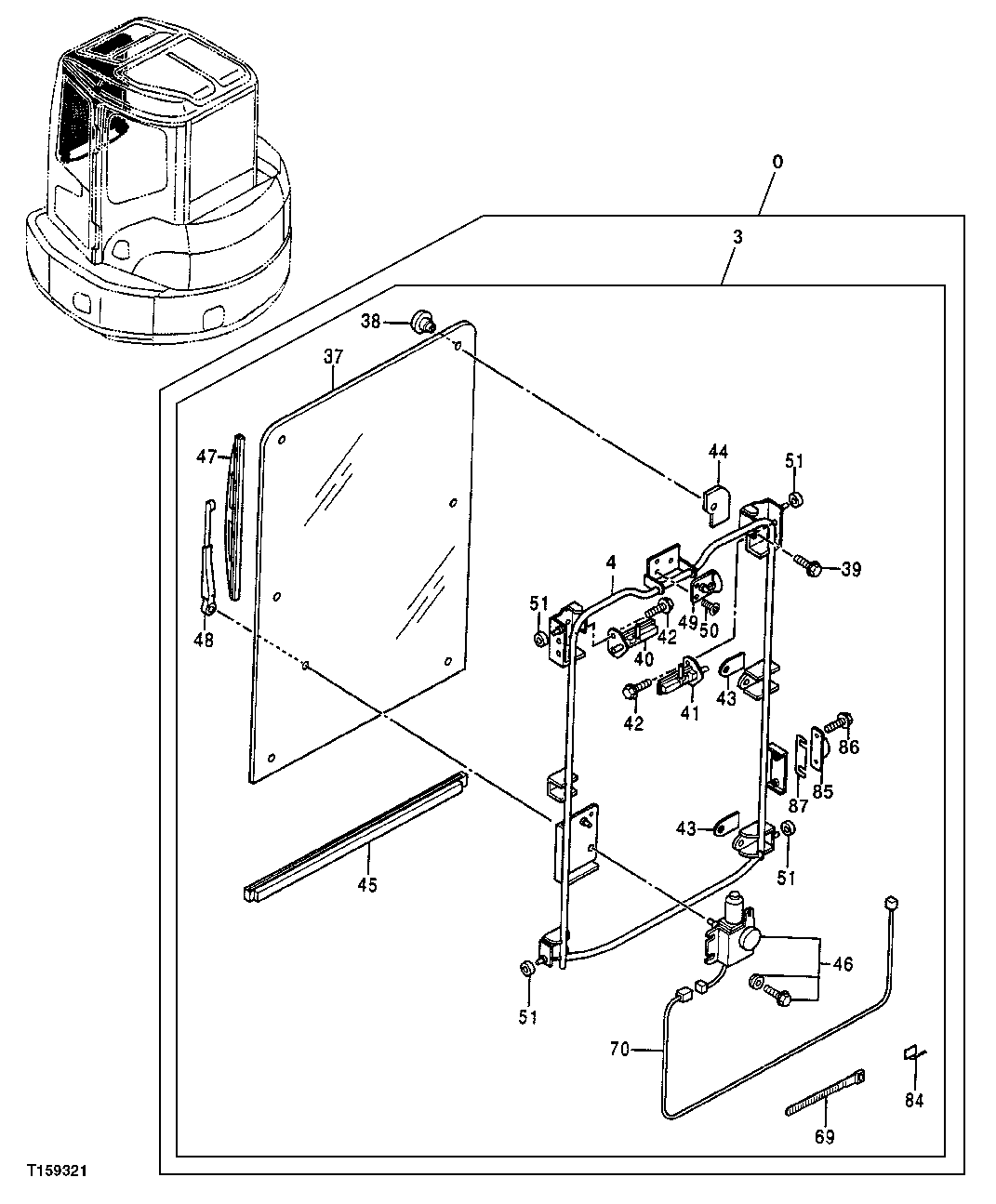

Запчасти John Deere 7ZTS 73 - Cab Components 1810 Operator Enclosure

0

9203820

Cab

(SUB FOR 4454007)(CONTAINS ALL I TEMS ON THIS PAGE - ADDITIONAL CO MPONENTS LISTED ON PREVIOUS PAGES )

1шт.

3

4424664

Window

(SUB FOR AT252077)

1шт.

4

Frame

(NOT AVAILABLE FOR SERVICE)

1шт.

37

4424681

Windowpane

(SUB FOR AT252088)

1шт.

38

4424666

Nut

(SUB FOR TH4424666)

6шт.

39

4424757

Cap Screw

(SUB FOR AT252137)

6шт.

40

4424682

Latch

(SUB FOR AT252089)

1шт.

41

4424683

Latch

(SUB FOR AT252090)

1шт.

42

4424757

Cap Screw

(SUB FOR AT252137)

4шт.

43

4424684

Bumper

(SUB FOR AT252091)

4шт.

44

Isolator

(NOT AVAILABLE FOR SERVICE)

2шт.

45

4424686

Weatherstrip

(SUB FOR AT252092)

1шт.

46

4424687

Wiper Motor

(SUB FOR AT252093)

1шт.

47

4468279

Wiper Blade

(SUB FOR 4424688)

1шт.

48

4424689

Wiper Arm

(SUB FOR AT252095)

1шт.

49

4424690

Striker

(SUB FOR AT252096)

1шт.

50

19M7924

Screw

M8 X 16

3шт.

51

4424701

Roller

(SUB FOR AT252104)

4шт.

69

4424719

Tie Band

(SUB FOR TH4424719)

8шт.

70

4424720

Wiper Motor Wiring Harness

(SUB FOR AT252115)

1шт.

84

4347049

Clip

(SUB FOR AT252061)

10шт.

85

4424702

Stop

(SUB FOR AT252105)

1шт.

86

19M9045

Screw

M6 X 16 (SUB FOR TH4380970 OR 4380970)

2шт.

87

4424744

Plate

(SUB FOR AT252130)

4шт.
