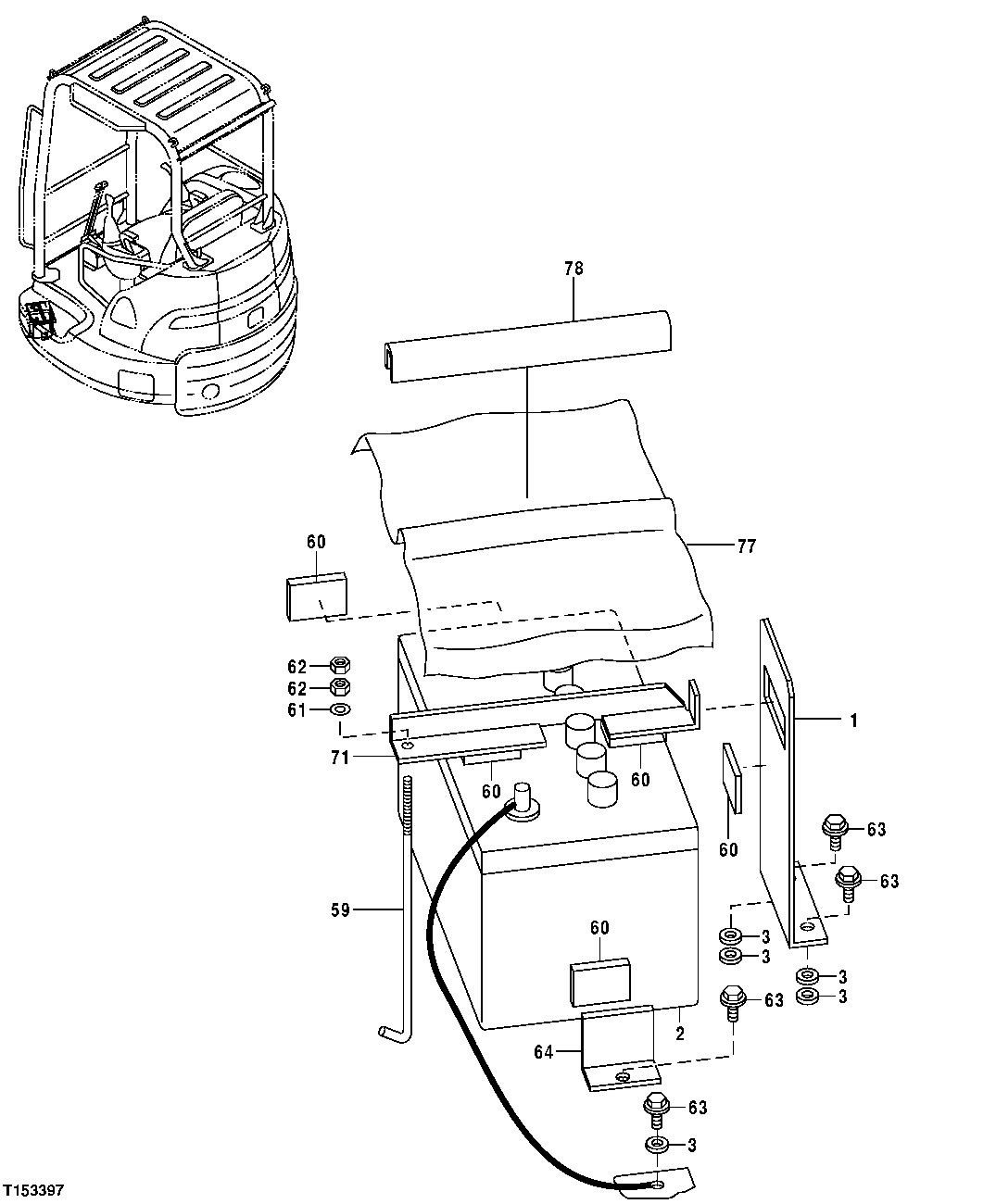

Запчасти John Deere 7ZTS 64 - REPLACEMENT BATTERY 1674 Wiring Harness And Switches

1

4419181

Bracket

(SUB FOR TH4419181)

1шт.

2

TY21764

Dry Charged Battery

(REPLACEMENT BATTERY)

1шт.

3

24H1292

Washer

11/32" X 3/4" X 0.120" (USE (4 ) AS SPACERS TO RAISE BRACKET)

5шт.

59

4623695

Bolt

(SUB FOR 4298596 ) (SUB FOR AT255931)

1шт.

60

4418114

Isolator

(SUB FOR TH4392475 OR 4392475)

6шт.

61

12M7054

Lock Washer

19 mm

1шт.

62

14M7272

Nut

M6

2шт.

63

19M7513

Cap Screw

M8 X 30

4шт.

64

4420209

Bracket

(SUB FOR TH4420209)

1шт.

71

8077964

Bracket

(SUB FOR TH8077964)

1шт.

77

4642743

Cover

(SUB FOR TH4411944 OR 4411944)

1шт.

78

4411943

Isolator

(SUB FOR TH4411943)

1шт.
