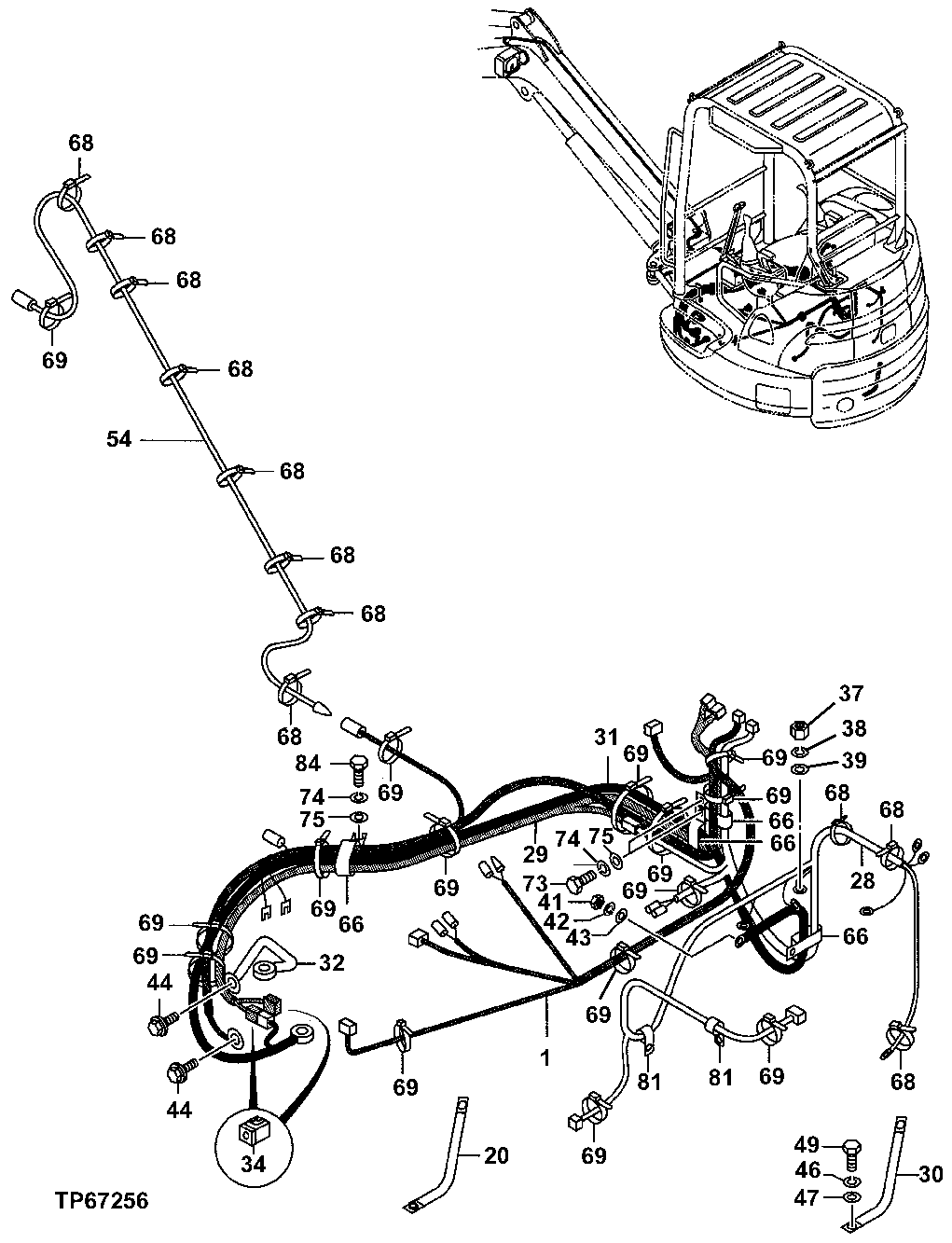

Запчасти John Deere 7ZTS 62 - WIRE HARNESS 1674 Wiring Harness And Switches

1

3085055

Wiring Harness

SUB FOR TH3085055; SEE DTAC SOLUT ION FOR REPAIR KIT AND CONNECTORS

1шт.

20

4443250

Wiring Harness

SUB FOR TH4443250; WINDOW WASHER TANK BRACKET TO MAIN FRAME SIDE

1шт.

28

3085056

Wiring Harness

SUB FOR TH3085056; ENGINE

1шт.

29

3085057

Wiring Harness

SUB FOR TH3085057; BATTERY

1шт.

30

4372789

Ground Cable

SUB FOR AT251308

1шт.

31

4417777

Cable

SUB FOR TH4417777

1шт.

32

4417776

Cable

SUB FOR TH4417776

1шт.

34

4331898

Fuse

SUB FOR AT251232; FUSIBLE LINK

2шт.

37

14M7272

Nut

M6

1шт.

38

12M7006

Lock Washer

6 mm

1шт.

39

12M7054

Lock Washer

19 mm

1шт.

41

14M7273

Nut

M8

1шт.

42

Washer

12M7065 NLA

1шт.

43

12M7036

Lock Plate

1шт.

44

19M7402

Cap Screw

M10 X 25

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

46

12M7066

Lock Washer

10 mm

1шт.

47

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR 12M7096

1шт.

49

19M7938

Cap Screw

M10 X 20

2шт.

54

4343506

Wiring Harness

SUB FOR TH4343506; BOOM LIGHT

1шт.

66

T32854

Clamp

4шт.

68

H77698

Tie Band

11шт.

69

H77698

Tie Band

14шт.

73

19M8324

Cap Screw

M10 X 16

2шт.

74

12M7066

Lock Washer

10 mm

3шт.

75

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR 12M7096

3шт.

81

4190275

Clamp

SUB FOR TH108598

2шт.

84

19M7938

Cap Screw

M10 X 20

1шт.
