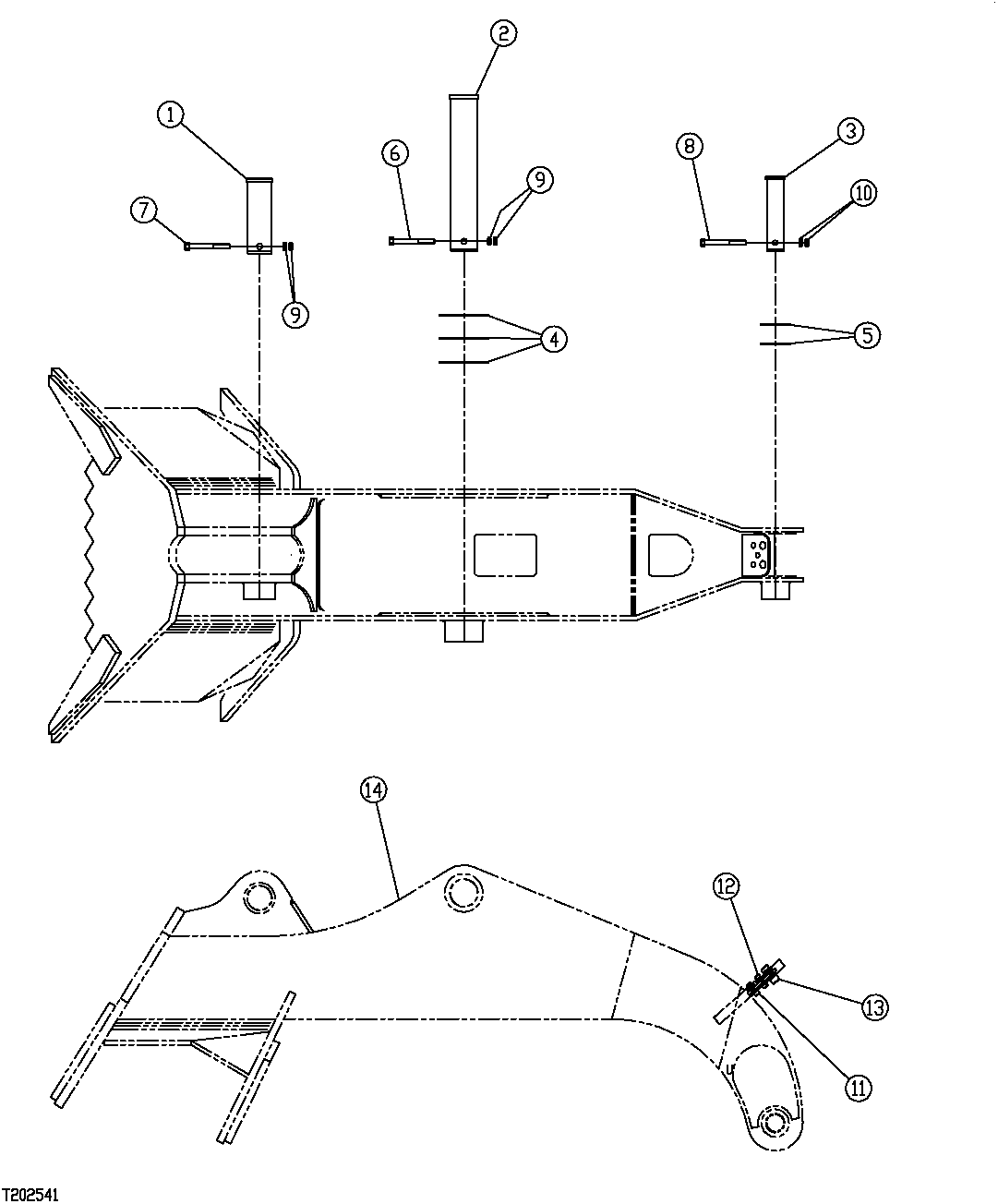

Запчасти John Deere 7C ZTS 650 - HEEL RACK AND PINS 3803 HEELER GRAPPLE

1

FF105547

Pin

(SUB FOR FFSB111352)

1шт.

2

FF105548

Pin

(SUB FOR FFSB107206)

1шт.

3

FFSB107256

Pin Fastener

1шт.

FFSB107292

Pin Fastener

1шт.

4

4144513

Washer

(SUB FOR FFSB108121)

3шт.

5

4075357

Washer

(SUB FOR FFSB108129)

2шт.

6

19M8100

Cap Screw

M20 X 180 (SUB FOR FFSB109230)

1шт.

7

19M8503

Cap Screw

M20 X 160 (SUB FOR FFSB109229)

1шт.

8

19M8043

Cap Screw

M16 X 140 (SUB FOR FFSB109220)

1шт.

9

14M7277

Nut

M20 (SUB FOR FFSB109330)

4шт.

10

14M7276

Nut

M16 (SUB FOR FFSB108865)

2шт.

11

38H1321

Elbow Fitting

(SUB FOR FFSB102227 ) (ALS O ORDER T78716 AND T77857)

2шт.

12

X6WLO-WLNL-S

Union Fitting

(SUB FOR FFSB103491)

1шт.

13

38H1276

Adapter Fitting

(SUB FOR FFSB102145)

2шт.

T77858

O-Ring

(SUB FOR FFSB102145)

4шт.

T78707

Nut

(SUB FOR FFSB102145)

2шт.

14

FFSB111300

Frame

1шт.
