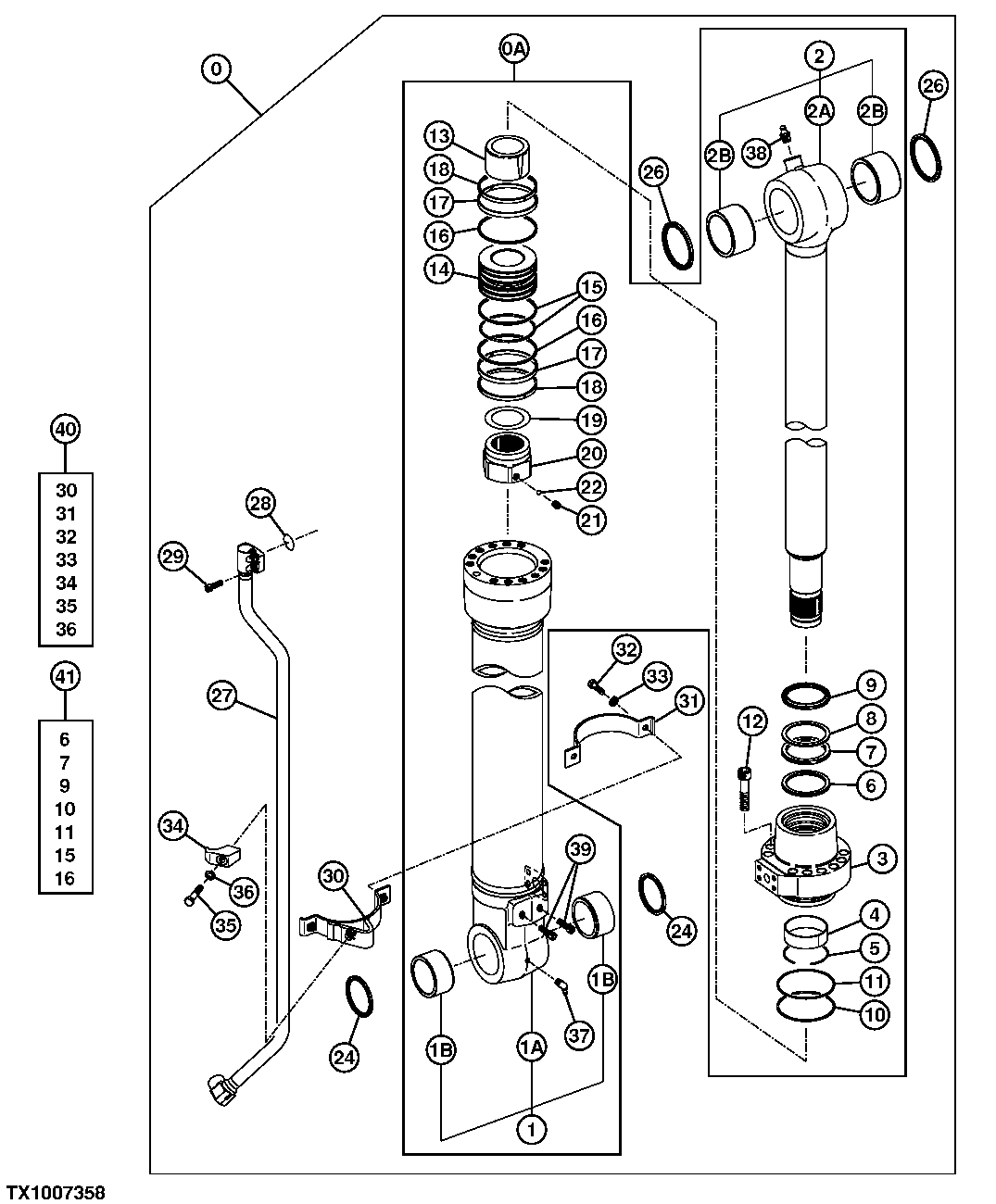

Запчасти John Deere 7C ZTS 649 - Heeler Cylinder, Live-Heel (200176 - ) 3365 Hydraulic Cylinders

0

Hydraulic Cylinder

9245981 NLA

1шт.

0A

AT330346

Hydraulic Cylinder

REMAN

1шт.

1

0962108

Hydraulic Cylinder Barrel

1шт.

0962108

Hydraulic Cylinder Barrel

SUB FOR PG201277

1шт.

1A

Hydraulic Cylinder

0962101 NLA

1шт.

1B

4332285

Bushing

2шт.

2

0962109

Rod

1шт.

0962109

Rod

SUB FOR PG201279

1шт.

2A

Rod

0962102 NLA

1шт.

2B

4397791

Bushing

2шт.

3

0962103

Cylinder Head

1шт.

4

AT264321

Bushing

SUB FOR 0325904

1шт.

5

0237407

Ring

1шт.

6

1119303

Ring

SUB FOR 4469112, 09275 07, 0973905 OR 4S00706

1шт.

7

1119304

Packing

SUB FOR 0105301, AT264 350, 0973906 OR 4S00707

1шт.

8

AT264351

Back-Up Ring

SUB FOR 0237419

1шт.

9

4428492

Ring

SUB FOR 0667406

1шт.

10

AT264224

O-Ring

SUB FOR A811130

1шт.

11

H178691

Back-Up Ring

SUB FOR 0789107

1шт.

12

19M8913

Screw

M18 X 80 SUB FOR 0219305

12шт.

13

0932804

Ring

1шт.

14

0876407

Piston

SUB FOR 0667407

1шт.

15

AH173446

Ring

SUB FOR 0309210

1шт.

16

H178694

Back-Up Ring

SUB FOR 0789109

2шт.

17

H227905

Ring

SUB FOR 0962104

2шт.

18

H178696

Back-Up Ring

SUB FOR 0309212 OR AT309611

2шт.

19

T108063

Shim

SUB FOR 0309216

1шт.

20

0789111

Nut

1шт.

21

22M6684

Set Screw

M12 X 12 SUB FOR 0309011

1шт.

22

T13624

Ball

SUB FOR 0111707

1шт.

24

TH102446

Seal

SUB FOR 4067902

2шт.

26

TH102445

Seal

SUB FOR 4067901

2шт.

27

0962105

Oil Line

1шт.

28

AT264348

O-Ring

SUB FOR 984614

1шт.

29

19M8448

Screw

M12 X 35 SUB FOR M341236

4шт.

30

AH225133J

Clamp

SUB FOR 0962106 OR AH225133

1шт.

31

H227901J

Clamp

SUB FOR 0309221 OR H227901

1шт.

32

19M7550

Cap Screw

M10 X 35 SUB FOR J021035

2шт.

33

12M7066

Lock Washer

10 mm SUB FOR A590910

2шт.

34

0309219J

Half Clamp

SUB FOR 0309219

1шт.

35

19M8348

Cap Screw

M12 X 65 SUB FOR 0224115

1шт.

36

12M7067

Lock Washer

12 mm SUB FOR 0208516

1шт.

37

T116334

Lubrication Fitting

SUB FOR 0271312

1шт.

38

TH100074

Lubrication Fitting

SUB FOR J75481

1шт.

39

19M8017

Cap Screw

M12 X 20 SUB FOR 0409110

2шт.

40

0962110

Clamp Kit

1шт.

41

4639939

Seal Kit

1шт.
