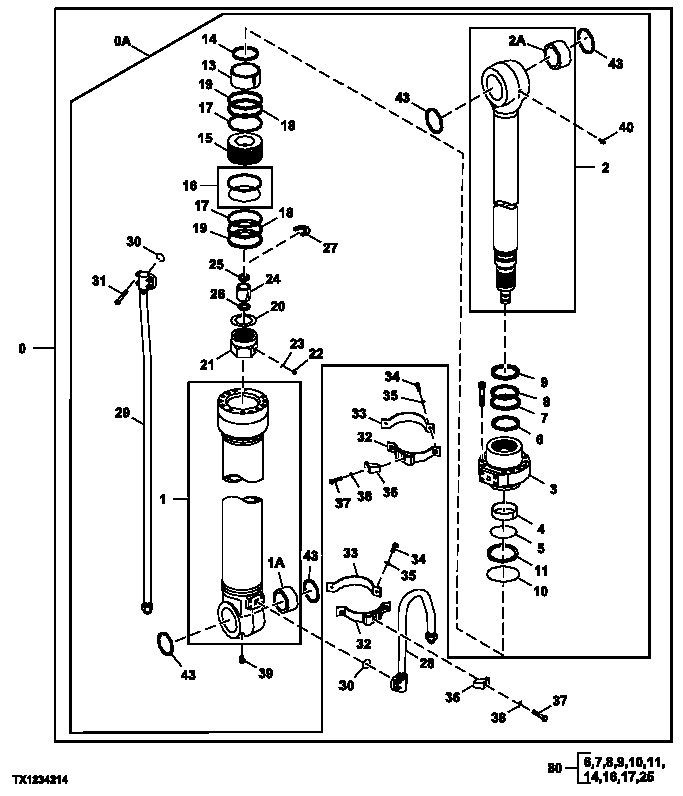

Запчасти John Deere 7C ZTS 647 - Arm Cylinder (Valve in Head) (Live-Heel) (200115 - ) 3365 Hydraulic Cylinders

0

Hydraulic Cylinder

( FFSB114013 NLA)

1шт.

0A

FFSB115437

Hydraulic Cylinder

(ALSO ORDER (4) 4397790 AND (4) TH102445)

1шт.

1

FFSB114391

Hydraulic Cylinder Barrel

1шт.

1A

3031789

Bushing

1шт.

2

FFSB114395

Hydraulic Cylinder Rod

1шт.

2A

3031789

Bushing

1шт.

3

1163303

Hydraulic Cylinder Cap

(SUB FOR FFSB114396)

1шт.

4

0373405

Bushing

(SUB FOR FFSB114397)

1шт.

5

0237205

Ring

(SUB FOR FFSB114398)

1шт.

6

FFSB114399

Ring

1шт.

7

FFSB114400

Ring

1шт.

8

0926808

Back-Up Ring

(SUB FOR FFSB114401)

1шт.

9

0492216

Seal

(SUB FOR FFSB114402)

1шт.

10

TH104589

O-Ring

(SUB FOR FFSB114403)

1шт.

11

0482606

Ring

(SUB FOR FFSB114404)

1шт.

12

0714306

Bolt

(SUB FOR FFSB114405)

12шт.

13

0973204

Ring

(SUB FOR FFSB114406)

1шт.

14

0833405

Cushion

(SUB FOR FFSB114407)

1шт.

15

0973205

Piston

(SUB FOR FFSB114408)

1шт.

16

FFSB114409

Sealing Ring

1шт.

17

0482609

Ring

(SUB FOR FFSB114410)

2шт.

18

FFSB114411

Ring

2шт.

19

TH102826

Wear Ring

(SUB FOR FFSB114412)

2шт.

20

0373414

Shim

(SUB FOR FFSB114413)

1шт.

21

0867308

Nut

(SUB FOR FFSB114414)

1шт.

22

H228111

Set Screw

(SUB FOR FFSB114415 OR 0352715)

1шт.

23

R26552

Ball

(SUB FOR FFSB114416)

1шт.

24

FFSB114417

Ring

1шт.

25

FFSB114418

Seal

1шт.

26

FFSB114419

Stop

2шт.

27

FFSB114420

Snap Ring

1шт.

28

FFSB114421

Pipe

1шт.

29

FFSB114422

Pipe

1шт.

30

AT264348

O-Ring

(SUB FOR FFSB109684)

2шт.

31

19M8448

Screw

M12 X 35

8шт.

32

FFSB114424

Clamp

2шт.

33

0387311

Band

(SUB FOR FFSB114425)

2шт.

34

19M7550

Cap Screw

M10 X 35

4шт.

35

12M7066

Lock Washer

10 mm

4шт.

36

0309219

Clamp

(SUB FOR FFSB114426)

2шт.

37

19M8348

Cap Screw

M12 X 65 (SUB FOR FFSB114427)

2шт.

38

12M7067

Lock Washer

12 mm (SUB FOR FFSB114428)

2шт.

39

T116334

Lubrication Fitting

(SUB FOR FFSB107456)

1шт.

40

TH100074

Lubrication Fitting

1шт.

41

4397790

Bushing

Not Illustrated (USE WITH FFSB114391 AND FFSB114395)

4шт.

43

TH102445

Seal

(USE WITH FFSB114391 AND FFSB114395)

4шт.

80

FF105759

Seal Kit

1шт.
