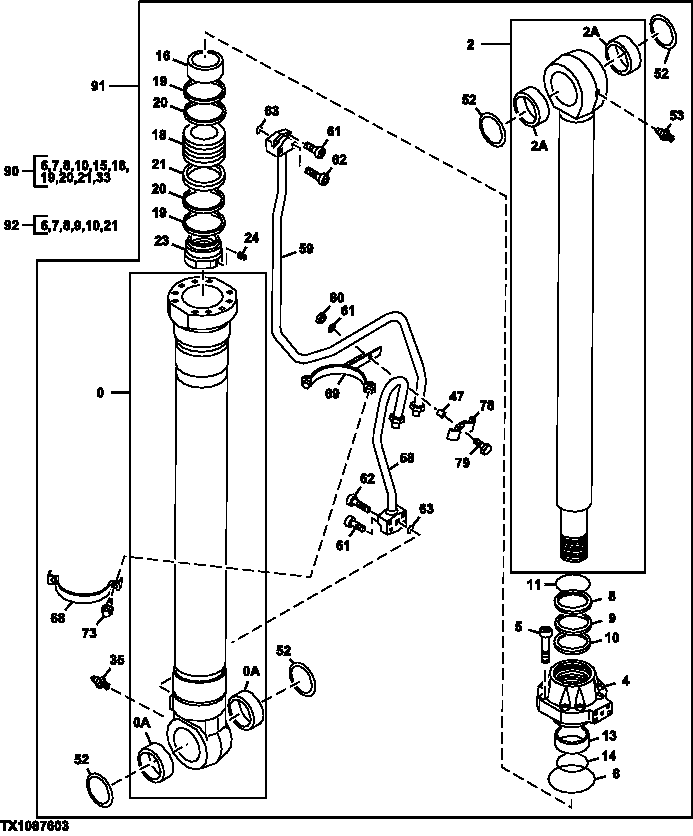

Запчасти John Deere 7C ZTS 644 - LEFT BOOM CYLINDER (VALVE IN HEAD) (LIVE-HEEL) (SN 200014-200222) 3365 Hydraulic Cylinders

0

7040550

Tube

1шт.

0A

4364501

Bushing

2шт.

2

7040552

Rod

1шт.

2A

4381855

Bushing

2шт.

4

1026691

Cylinder Head

1шт.

5

19M8630

Screw

M24 X 80

9шт.

6

AT264307

O-Ring

1шт.

7

AT280445

Back-Up Ring

Not Illustrated

1шт.

8

AT264298

Seal

1шт.

9

AT333702

Seal

1шт.

10

AT264414

Seal

1шт.

11

4383089

Snap Ring

1шт.

13

AT264308

Bushing

1шт.

14

4268206

Snap Ring

1шт.

16

2041628

Ring

1шт.

18

3080834

Piston

1шт.

19

AT264415

Ring

2шт.

20

AT264416

Wear Ring

2шт.

21

AT264417

Ring

1шт.

23

3039349

Nut

1шт.

24

4201806

Set Screw

1шт.

35

TH100074

Lubrication Fitting

1шт.

47

4410980

Spacer

1шт.

52

TH103200

Seal

2шт.

53

JD7769

Lubrication Fitting

SUB FOR TH100364

1шт.

54

TH102411

Seal

2шт.

58

8091233

Line

1шт.

59

8091235

Line

1шт.

61

19M8341

Screw

M12 X 45

4шт.

62

19M8444

Screw

M12 X 60

4шт.

63

AT264324

O-Ring

2шт.

68

3080216

Clamp

1шт.

69

8091254

Clamp

1шт.

73

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

78

4229234

Clamp

1шт.

79

19M8348

Cap Screw

M12 X 65

1шт.

80

14M7275

Nut

M12

1шт.

81

12H301

Lock Washer

1/2"

1шт.

89

Seal Kit

AT264440 NLA; INCLUDES AT264298, AT2 64307, AT264308, AT264324, AT264414, A T264415, AT264416, AT264417, AT260445, AT333702; SUB 9180581; ALSO ORDER AT2 64308, AT264416, AT264324 Not Illustra ted

1шт.

90

Seal Kit

AT264440 NLA; SUB 9180581, ALSO ORDER A T264308, AT264416, AT264415 AND AT264324

1шт.

91

9272252

Hydraulic Cylinder

SUB FOR 4641547

1шт.

92

9180581

Seal Kit

1шт.
