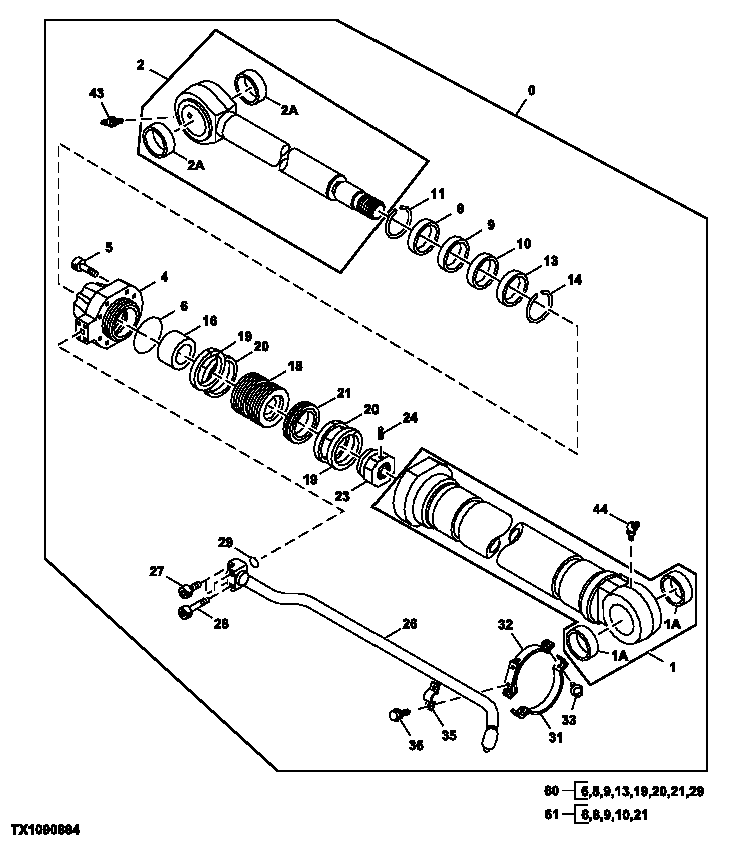

Запчасти John Deere 7C ZTS 636 - BUCKET CYLINDER (ZX270 FRONT)(SN -XXXXXX) 3365 Hydraulic Cylinders

0

9206324

Hydraulic Cylinder

NLA; SUB 9245981

1шт.

1

9206354

Hydraulic Cylinder Barrel

1шт.

1A

4332285

Bushing

SUB FOR AT217750

2шт.

2

4645905

Rod

SUB FOR 7037679

1шт.

2A

4397791

Bushing

SUB FOR TH4397791

2шт.

4

1015437

Hydr. Cylinder Rod Guide

SUB FOR AT217934

1шт.

5

19M8630

Screw

M24 X 80

8шт.

6

AT264268

O-Ring

SUB FOR AT154722

1шт.

8

T204375

Seal

SUB FOR AT181238 AND AT264293

1шт.

9

AT264395

Seal

SUB FOR TH110018

1шт.

10

4412693

Seal

SUB FOR 4253560

1шт.

11

4369507

Ring

1шт.

13

AT264321

Bushing

SUB FOR AT154779 OR AT264273

1шт.

14

4264983

Snap Ring

1шт.

16

4264979

Spacer

SUB FOR AT217957

1шт.

18

3052363

Piston

SUB FOR AT217937

1шт.

19

AT264397

Ring

SUB FOR TH110033

2шт.

20

AT264266

Wear Ring

SUB FOR AT154718

2шт.

21

AT264297

Seal

SUB FOR AT218148

1шт.

23

3063059

Nut

SUB FOR AT217940

1шт.

24

4201805

Set Screw

SUB FOR TH110037

1шт.

26

8049650

Oil Tube

SUB FOR AT218005

1шт.

27

19M8341

Screw

M12 X 45

2шт.

28

19M8444

Screw

M12 X 60

2шт.

29

AT264324

O-Ring

SUB FOR TH100044

1шт.

31

3088623

Clamp

SUB FOR TH3088623

1шт.

32

8079292

Clamp

SUB FOR TH8079292

1шт.

33

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

35

4174241

Clamp

SUB FOR TH110059

1шт.

36

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

43

T116334

Lubrication Fitting

1шт.

44

TH100074

Lubrication Fitting

1шт.

60

AT264439

Seal Kit

NLA; SUB FOR AT218044; INCLUDES (2) AT264266, AT264268, AT264273, T204375 , AT264297, (2) AT264324, AT264395; I NCLUDES AT264351; NA Not Illustrated

1шт.

61

9180580

Seal Kit

(Includes AT264268, T204375, 44 12693, AT264297) Not Illustrated

1шт.
