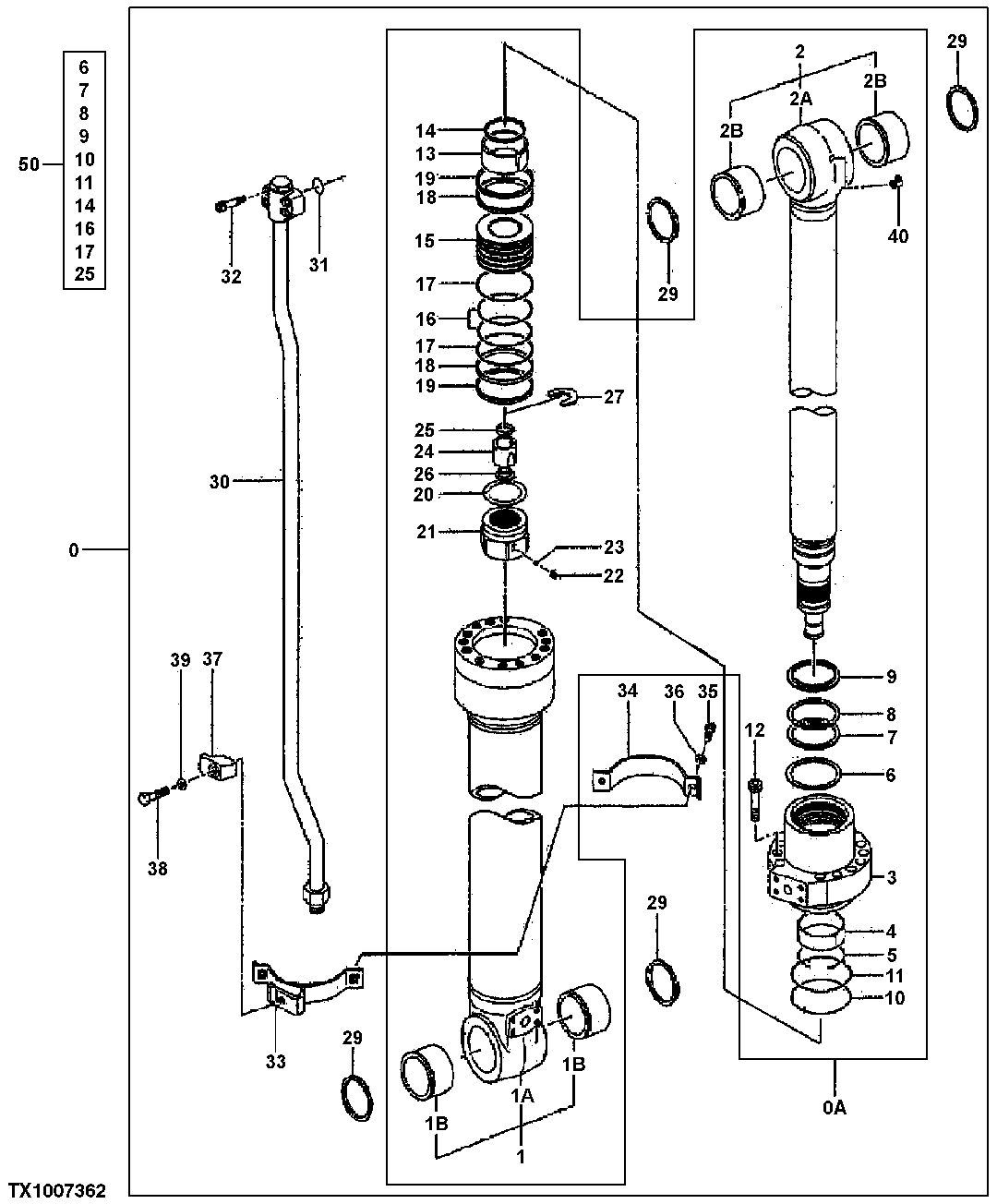

Запчасти John Deere 7C ZTS 633 - Arm Cylinder, 270CLC Front (200185 - ) 3365 Hydraulic Cylinders

0

Hydraulic Cylinder

9245980 NLA

1шт.

0A

AT330345

Hydraulic Cylinder

REMAN

1шт.

1

0962012

Hydraulic Cylinder Barrel

1шт.

0962012

Hydraulic Cylinder Barrel

SUB FOR PG203908

1шт.

1A

Hydraulic Cylinder Barrel

0962001 NLA

1шт.

1B

4397790

Bushing

2шт.

2

0962013

Rod

1шт.

0962013

Rod

SUB FOR PG203907

1шт.

2A

Rod

0962002 NLA

1шт.

2B

4397790

Bushing

2шт.

3

0962003

Hydr. Cylinder Rod Guide

1шт.

4

0836104

Bushing

1шт.

5

0208504

Wear Ring

1шт.

6

1112703

Ring

SUB FOR 0836105, FFSB115084, 0974306, 0836115 OR 4S00703

1шт.

7

1112704

Seal

SUB FOR 0836106, 4S0070 4, FFSB115085 OR 0836114

1шт.

8

0836107

Back-Up Ring

1шт.

9

4S00772

Scraper Ring

SUB FOR 0807904

1шт.

10

A811140

O-Ring

1шт.

11

0962004

Back-Up Ring

1шт.

12

19M8985

Screw

M20 X 80 SUB FOR 0166012 OR M342080

10шт.

13

0962005

Bearing

1шт.

14

0956612

Seal

SUB FOR 0962006

1шт.

15

0962007

Piston

1шт.

16

0373411

Sealing Ring

SUB FOR 4S00801

1шт.

17

0492208

Back-Up Ring

SUB FOR 4S00802

2шт.

18

0962008

O-Ring

SUB FOR 4S00803

2шт.

19

0373413

Ring

SUB FOR 4S00804

2шт.

20

0836111

Shim

1шт.

21

0880607

Nut

1шт.

22

0352715

Set Screw

SUB FOR 0352715

1шт.

23

R26552

Ball

SUB FOR 0104404

1шт.

24

H155321

Spacer

SUB FOR 0962009 OR 0409913

1шт.

25

0667411

Seal

1шт.

26

0409915

Ring

2шт.

27

0409916

Piston Ring

1шт.

28

4397790

Bushing

Pin Not Illustrated

4шт.

29

TH102445

Seal

SUB FOR 4067901

4шт.

30

0962010

Line

1шт.

31

AT264348

O-Ring

SUB FOR 984614

1шт.

32

19M8448

Screw

M12 X 35 SUB FOR M341236

4шт.

33

0867314

Band

1шт.

34

0387311

Band

1шт.

35

19M7550

Cap Screw

M10 X 35 SUB FOR J021035

2шт.

36

12M7066

Lock Washer

10 mm SUB FOR A590910

2шт.

37

0309219J

Half Clamp

SUB FOR 0309219

1шт.

38

19M8348

Cap Screw

M12 X 65 SUB FOR 0224115

1шт.

39

12M7067

Lock Washer

12 mm SUB FOR 0208516

1шт.

40

T116334

Lubrication Fitting

SUB FOR J75581 OR 0271312

1шт.

50

4662880

Seal Kit

SUB FOR 4639938, THIS APPLICATION

1шт.

51

0906105

Band Kit

Includes Keys 33, 34, 35, 36, 37 , 38 and 39 Not Illustrated Band

1шт.
