Запчасти John Deere 7C ZTS 632 - Arm Cylinder, 270CLC Front ( - 200184) 3365 Hydraulic Cylinders

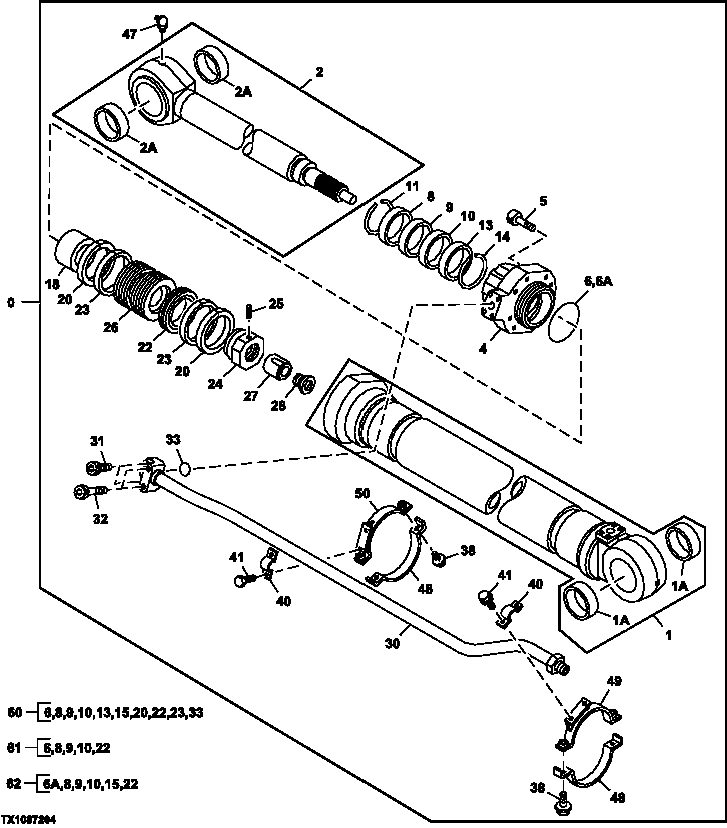

Схема запчастей John Deere 7C ZTS - 632 - Arm Cylinder, 270CLC Front ( - 200184) 3365 Hydraulic Cylinders

Артикул

Название

Примечание

Количество

0

Hydraulic Cylinder

SUB (1) 9245980; 9206323 NLA

1шт.

1

4646001

Hydraulic Cylinder Barrel

SUB FOR 4646001

1шт.

4646001

Hydraulic Cylinder Barrel

SUB FOR PG201280

1шт.

1A

4397790

Bushing

SUB FOR TH4397790

2шт.

2

4645904

Rod

SUB FOR TH7037662

1шт.

4645904

Rod

SUB FOR PG201282

1шт.

2A

4397790

Bushing

SUB FOR TH4397790

2шт.

4

TH1027949

Hydr. Cylinder Rod Guide

1шт.

5

19M8630

Screw

M24 X 80

8шт.

6

AT264295

O-Ring

For Heat Problems See DTAC Sol ution SUB FOR AT217990, 4380144

1шт.

4641100

O-Ring

Heat Resistant

1шт.

8

AT264277

Seal

SUB FOR AT181247, 4348207

1шт.

9

AT264398

Seal

SUB FOR TH110049

1шт.

10

AT264279

Ring

SUB FOR AT181790

1шт.

11

4369509

Ring

SUB FOR AT181248

1шт.

13

AT264237

Bushing

SUB FOR AT131414

1шт.

14

4267139

Snap Ring

SUB FOR AT130817

1шт.

15

AT280434

Back-Up Ring

Not Illustrated

1шт.

18

3088602

Ring

SUB FOR TH3088602

1шт.

20

AT264400

Ring

SUB FOR TH110062

2шт.

22

AT264402

Ring

SUB FOR TH110065

1шт.

23

AT264275

Wear Ring

SUB FOR AT159585, 4194621

2шт.

24

3063060

Nut

SUB FOR AT217941

1шт.

25

4201806

Set Screw

SUB FOR TH110066

1шт.

26

3052364

Piston

SUB FOR AT159584

1шт.

27

3083091

Ring

SUB FOR AT185413

1шт.

28

4387203

Plug

SUB FOR AT185414

1шт.

30

8053093

Line

SUB FOR AT159587

1шт.

31

19M8341

Screw

M12 X 45

2шт.

32

19M8444

Screw

M12 X 60

2шт.

33

AT264324

O-Ring

SUB FOR TH100044

1шт.

38

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

40

4174241

Clamp

SUB FOR TH110059

2шт.

41

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

47

T116334

Lubrication Fitting

1шт.

48

TH3090722

Clamp

2шт.

49

8082044

Clamp

1шт.

50

TH8082069

Clamp

1шт.

60

Seal Kit

For Heat Problems See DTAC Solution 9161918, AT218043 NLA; SUB AT264438

1шт.

Seal Kit

For Heat Problems See DTAC Solu tion AT264438 NLA; SUB 9180579

1шт.

61

9180579

Seal Kit

For Heat Problems See DTAC Solution

1шт.

62

9257551

Seal Kit

Heat Resistant

1шт.

Выбрано товаров: 44
