Запчасти John Deere 7C ZTS 617 - Auxiliary Equipment Hydraulic Hoses and Lines 3363 LINES, HOSES & FITTINGS

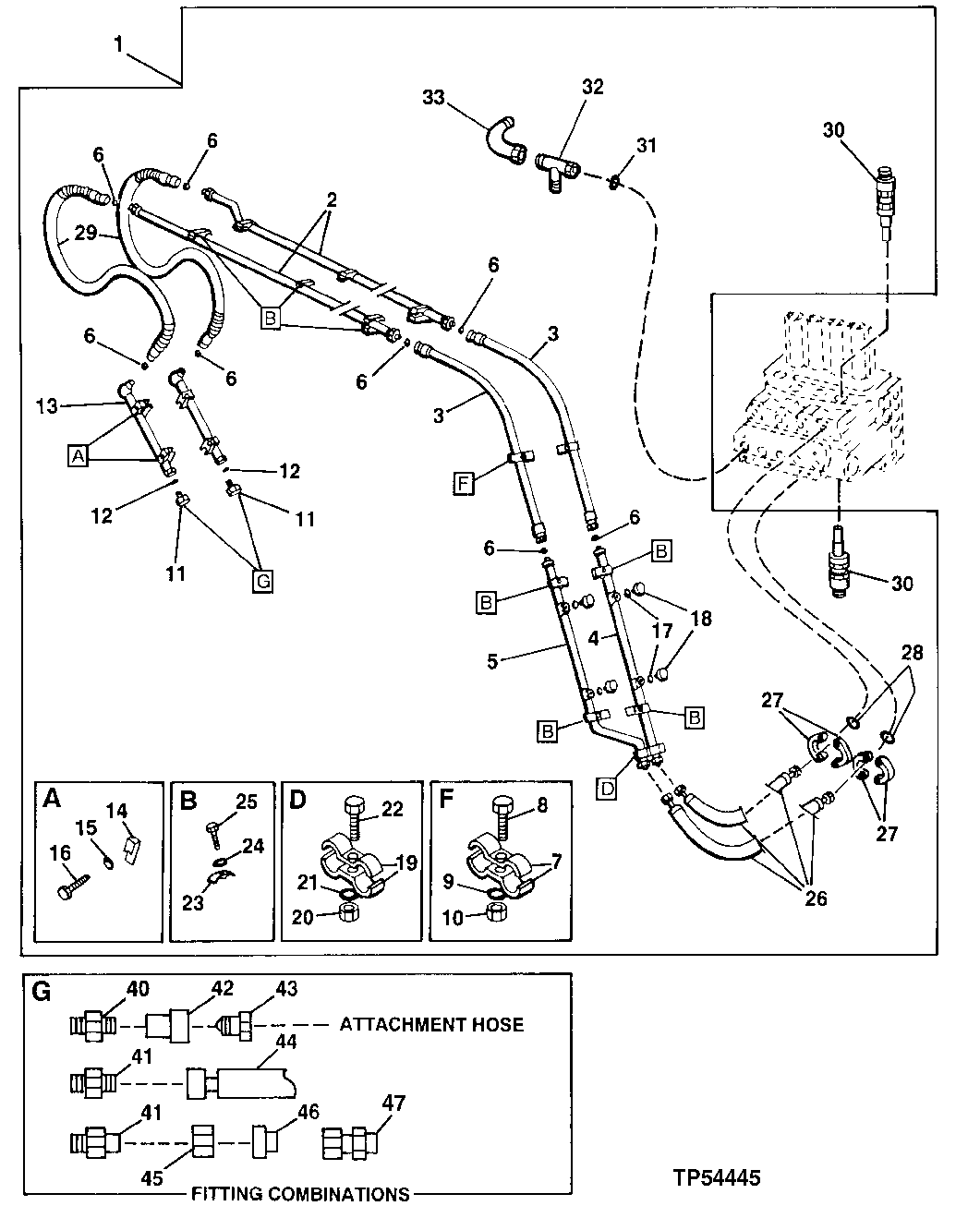

Схема запчастей John Deere 7C ZTS - 617 - Auxiliary Equipment Hydraulic Hoses and Lines 3363 LINES, HOSES & FITTINGS

Артикул

Название

Примечание

Количество

1

AT160351

Kit

(ALSO ORDER (2) AT160364 HOSES WHEN USED W ITH 2.96M STANDARD ARM) (ALSO ORDER (2) AT1 59781 HOSES WHEN USED WITH 3.61M LONG ARM)

1шт.

2

AT159786

Oil Line

2шт.

3

AT159782

Hydraulic Hose

36.5252" X 1905 mm (75") X 36.5252"

2шт.

4

AT159785

Oil Line

1шт.

5

AT159805

Oil Line

1шт.

6

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

10шт.

7

4202103

Clamp

(SUB FOR TH108302)

4шт.

8

19M7361

Cap Screw

M12 X 50

2шт.

9

12H301

Lock Washer

1/2"

2шт.

10

14M7275

Nut

M12

2шт.

11

38H1151

Fitting Plug

2шт.

12

T78612

O-Ring

2шт.

13

AT159934

Oil Line

2шт.

14

4190127

Clamp

(SUB FOR TH108313)

4шт.

15

12H301

Lock Washer

1/2"

4шт.

16

19M7753

Cap Screw

M12 X 70

4шт.

17

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

4шт.

18

38H1418

Fitting

4шт.

19

4202103

Clamp

(SUB FOR TH108302)

2шт.

20

14M7275

Nut

M12

1шт.

21

12H301

Lock Washer

1/2"

1шт.

22

19M7361

Cap Screw

M12 X 50

1шт.

23

4153488

Clamp

(SUB FOR TH103780)

10шт.

24

12H301

Lock Washer

1/2"

10шт.

25

19M7753

Cap Screw

M12 X 70

10шт.

26

AT159783

Hydraulic Hose

3/4" X 1499 mm (59") X 36.5252"

2шт.

27

R29424

Flange Fitting

4шт.

28

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

2шт.

29

AT160364

Hydraulic Hose

36.5252" X 1600 mm (63") X 36.5252" (O RDER SEPARATELY - NOT INCLUDED IN AT16 0351 KIT) (USE WITH 2.96M STANDARD ARM)

2шт.

AT159781

Hydraulic Hose

36.5252" X 2000 mm (78-3/4") X 36.5252" (ORDER SEPARATELY - NOT INCLUDED IN AT 160351 KIT) (FOR USE WITH 3.61M LONG ARM )

2шт.

30

4282718

Pressure Relief Valve

(SUB FOR AT155693)

2шт.

31

M800650

Packing

1шт.

32

4203485

Fitting

(SUB FOR TH109466)

1шт.

33

AH89069

Elbow Fitting

1шт.

34

H102543

Fitting

NLA Not Illustrated Shared Flo w Plug End When Hose is Attache d to Bucket Valve Control Valve

1шт.

40

38H1196

Adapter Fitting

(-20) 1 11/16 ORFS X ( -16) 1 5/16 SAE O-RING

2шт.

4207425

Adapter Fitting

(SUB FOR TH111740)(-20) 1 1 1/16 ORFS X (-16) 1 IN BSPP

2шт.

38H1165

Adapter Fitting

(-20) 1 11/16 ORFS X (-20) 1 5/8 SAE O-RING

2шт.

4267610

Adapter Fitting

(SUB FOR AT137960)(-20) 1 11/ 16 ORFS X (-20) 1 1/4 IN BSPP

2шт.

41

38H1282

Union Fitting

(-20) 1 11/16 ORFS X (-20) 1 11/16 ORFS

2шт.

42

AT117364

Hydr. Quick Coupler Socket

FEMALE QUICK COUPLER ( -12) 1 1/16 SAE O-RING

2шт.

AT120499

Coupling

FEMALE QUICK COUPLER ( -16) 1 5/16 SAE O-RING

2шт.

43

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING

2шт.

44

X1JS78-20-16

Hose Fitting

HOSE END - STRAIGHT - 1 1/4 X 1 IN

2шт.

X1J978-20-16

Elbow Fitting

HOSE END - 90 DEG 1 1/4 X 1 IN

2шт.

45

X20BL-S

Tube Nut

ORFS (-20) 1 11/16

2шт.

46

38H1477

Reducer

ORFS (-20) TO (-12)

2шт.

47

38H1070

Fitting

(1 3/16 ORFS X 1 1/16 SAE O-RING)

2шт.

90

AT172037

Clamp

NLA, WHOLE GOODS Hydraulic Thumb Kit Contains All Components On This Page A dditional Components On Separate Pages

1шт.

Выбрано товаров: 50
