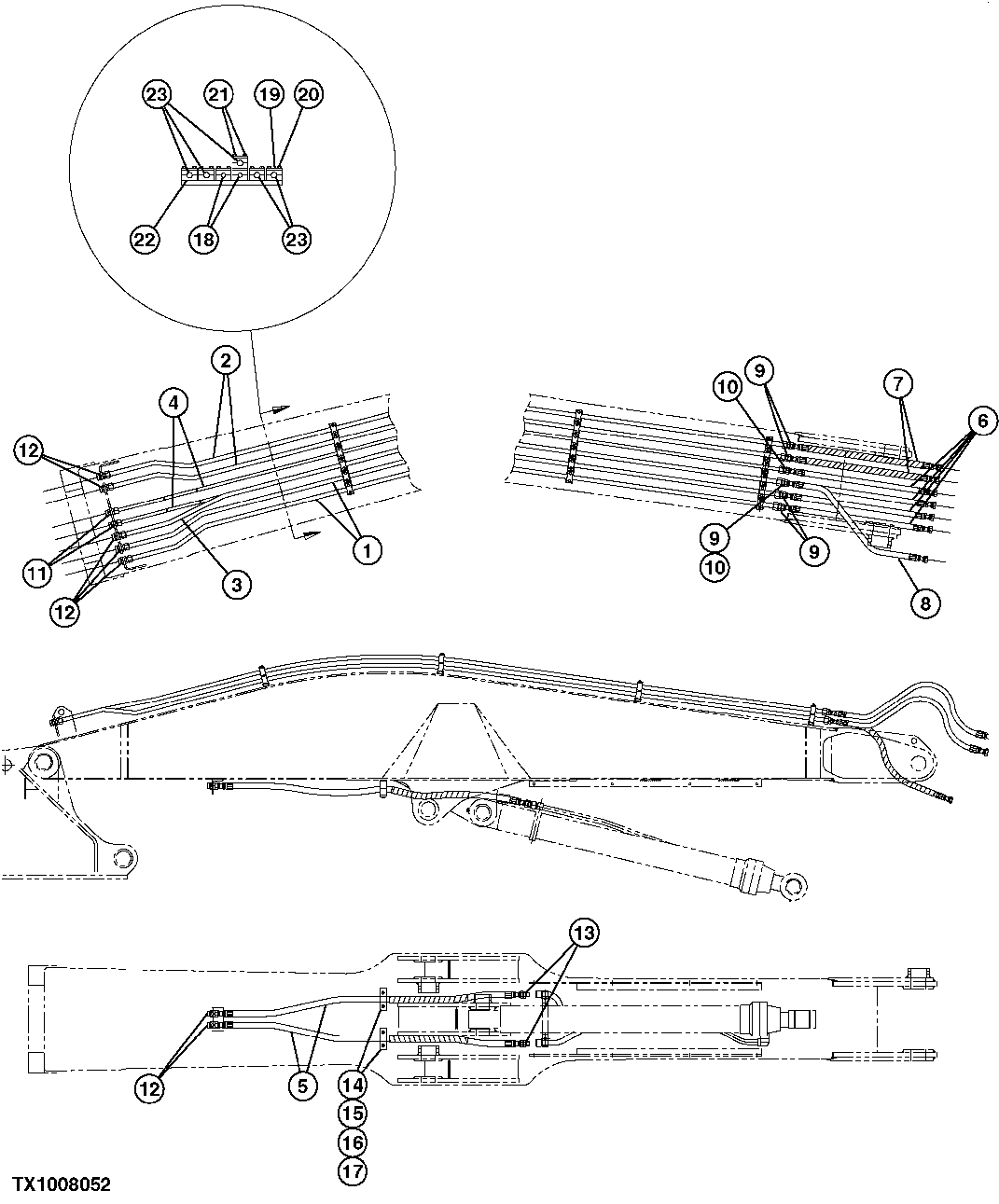

Запчасти John Deere 7C ZTS 616 - BOOM PLUMBING FOR HEELER FRONT (36 FOOT REACH, SWAMP LOGGER) 3363 LINES, HOSES & FITTINGS

1

FFSB113232

Oil Line

2шт.

2

FFSB113233

Oil Line

2шт.

3

FFSB113234

Oil Line

1шт.

4

FFSB113235

Oil Line

2шт.

5

FFSB108350

Hydraulic Hose

(CTL, 2100MM) (SUB FOR FFSB113236)

2шт.

XHG-150

Hose Spring Guard

(CTL, 600MM) (SUB FOR FF SB110057 AND FFSB113236)

2шт.

6

FFSB103296

Hydraulic Hose

(CTL, 1194MM)

4шт.

7

FFSB103298

Hydraulic Hose

(CTL, 940MM) (SUB FOR FFSB110787)

2шт.

XHG-125

Hose Spring Guard

(CTL, 710MM) (SUB FOR FFSB110787)

2шт.

8

FFSB103297

Hydraulic Hose

(CTL, 1270MM)

1шт.

9

X16-12HLO-S

Union Fitting

(SUB FOR FFSB102143)

5шт.

10

38H1272

Union Fitting

(SUB FOR FFSB102148)

2шт.

T77858

O-Ring

(SUB FOR FFSB102148)

2шт.

11

38H1276

Adapter Fitting

(SUB FOR FFSB102145)

2шт.

T77858

O-Ring

(SUB FOR FFSB102145)

2шт.

T78707

Nut

(SUB FOR FFSB102145)

2шт.

12

38H1287

Adapter Fitting

(SUB FOR FFSB102144)

7шт.

T76938

O-Ring

(SUB FOR FFSB102144)

7шт.

T78715

Nut

(SUB FOR FFSB102144)

7шт.

13

X16F5OLO-S

Adapter Fitting

(SUB FOR FFSB102146)

2шт.

14

FFSB110867

Insert

2шт.

15

FFSB100116

Reinforcement

2шт.

16

19M7216

Cap Screw

M12 X 100 (SUB FOR FFSB109192)

4шт.

17

FFSB100118

Half Clamp

4шт.

18

FFSB100113

Half Clamp

16шт.

19

FFSB100114

Reinforcement

28шт.

20

19M8499

Cap Screw

M10 X 60 (SUB FOR FFSB109895)

40шт.

21

19M8343

Cap Screw

M10 X 120 (SUB FOR FFSB111324)

8шт.

22

F120999

Nut

( FFSB109897 NLA)

48шт.

23

FFSB100112

Half Clamp

40шт.
