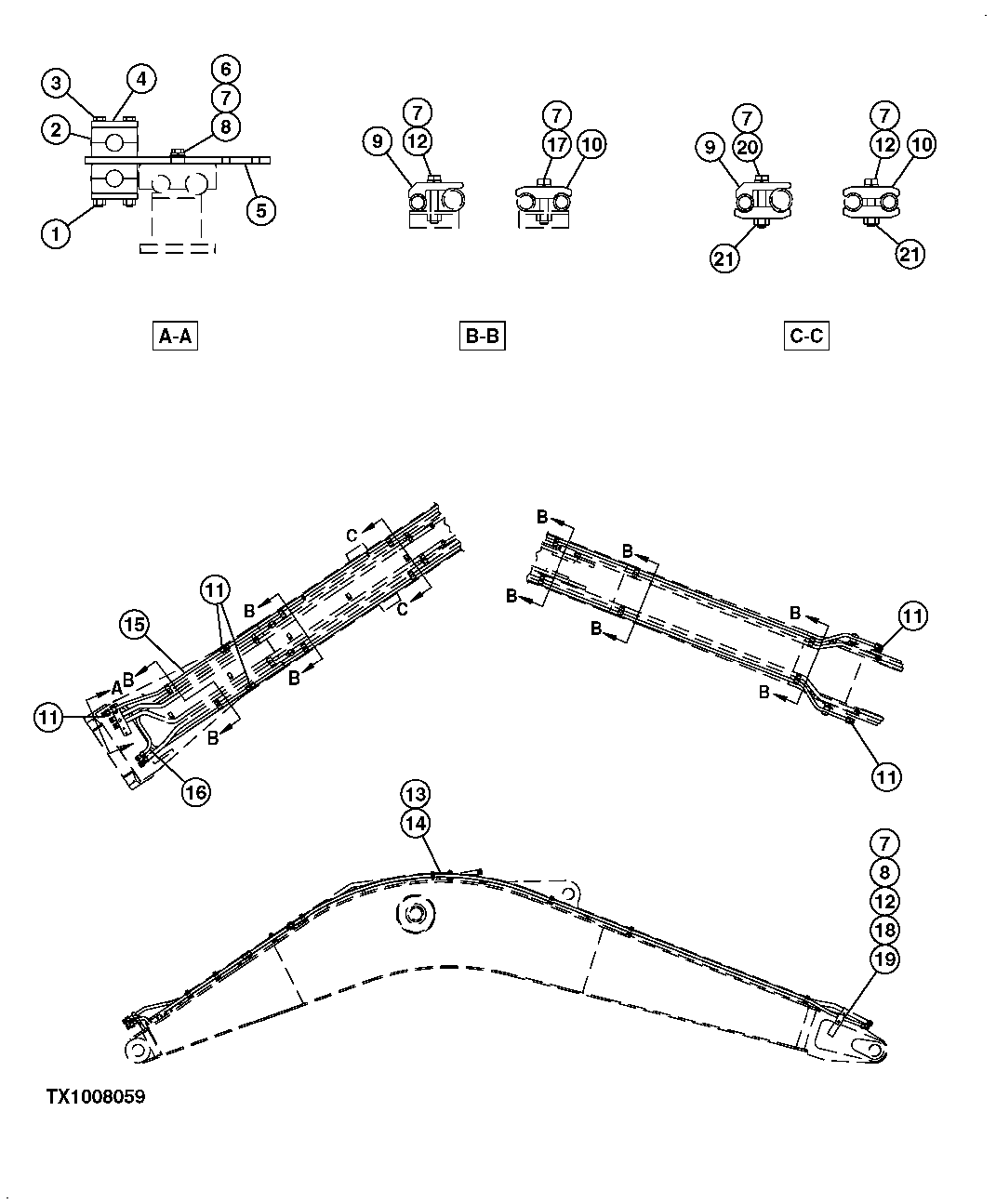

Запчасти John Deere 7C ZTS 614 - EXCAVATOR BOOM OIL LINES FOR SINGLE FUNCTION FRONT 3363 LINES, HOSES & FITTINGS

1

14M7167

Lock Nut

M10 ( FFSB110984 NLA)

2шт.

2

FFSB100112

Half Clamp

4шт.

3

19M7638

Cap Screw

M10 X 130 ( FFSB110277 NLA)

2шт.

4

FFSB100114

Reinforcement

2шт.

5

FFSB112160

Plate

1шт.

6

19M7753

Cap Screw

M12 X 70 (SUB FOR FFSB109216 )( FFSB109218 OR 19M7753 NA)

1шт.

7

12M7067

Lock Washer

12 mm (SUB FOR FFSB107911)

15шт.

8

24M7038

Washer

13.500 X 24 X 2.500 mm (SUB FOR FFSB108102)

3шт.

9

FFSB102580

Clamp

6шт.

10

FFSB105147

Clamp

8шт.

11

38H1281

Union Fitting

(SUB FOR FFSB102147)

4шт.

T76938

O-Ring

(SUB FOR FFSB102147)

8шт.

12

19M8348

Cap Screw

M12 X 65 (SUB FOR FFSB107244)

8шт.

13

FFSB112166

Structural Tube

1шт.

14

FFSB112167

Structural Tube

1шт.

15

FFSB112165

Structural Tube

1шт.

16

FFSB112163

Structural Tube

1шт.

17

19M7363

Cap Screw

M12 X 60 (SUB FOR FFSB109215)

5шт.

18

4190126

Clamp

(SUB FOR FFSB108708)

2шт.

19

FFSB112175

Plate

2шт.

20

19M7753

Cap Screw

M12 X 70 (SUB FOR FFSB109216)

1шт.

21

14M7275

Nut

M12 (SUB FOR FFSB107245)

2шт.
