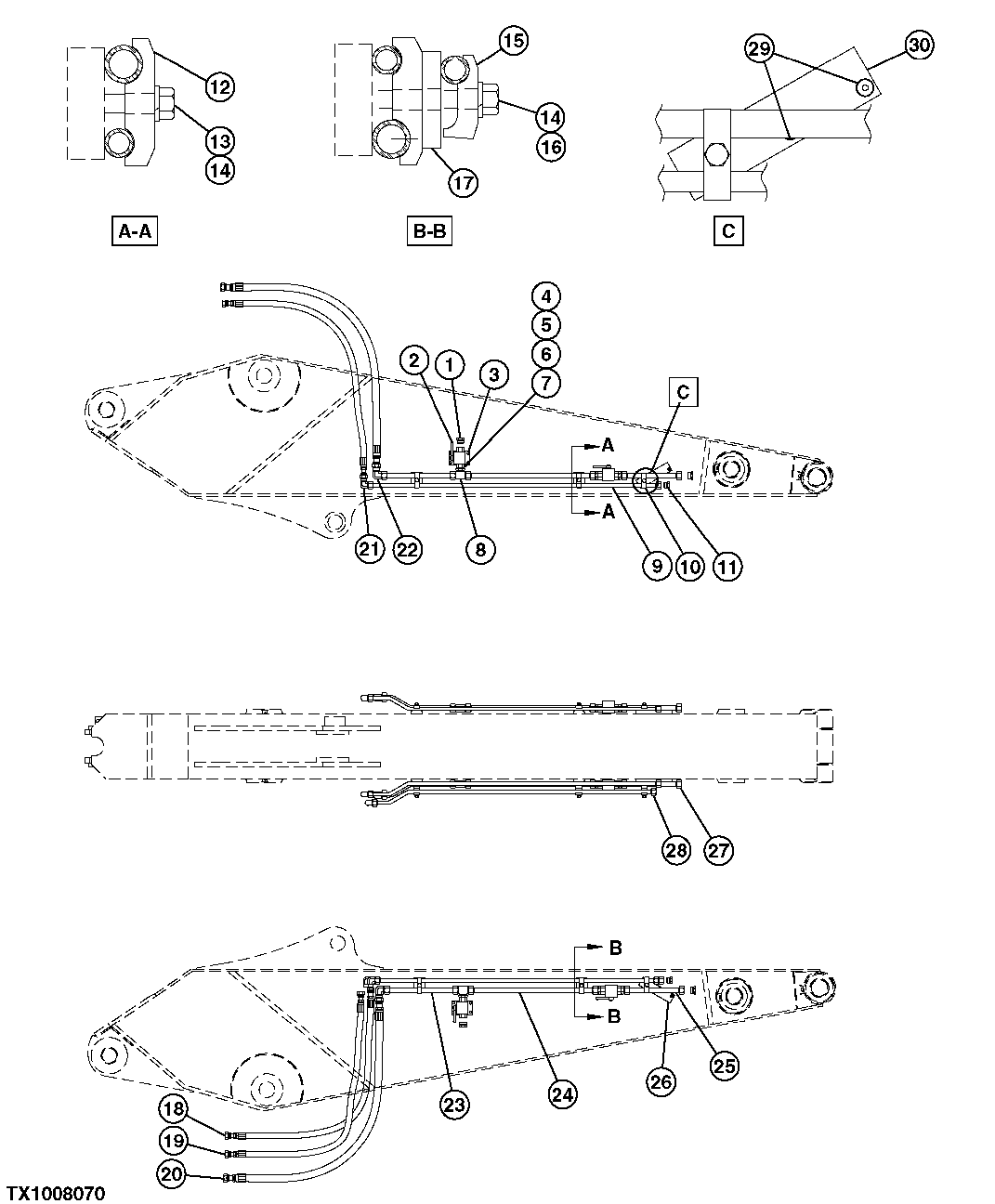

Запчасти John Deere 7C ZTS 611 - EXCAVATOR ARM PLUMBING FOR DOUBLE FUNCTION FRONT 3363 LINES, HOSES & FITTINGS

1

X16P5ON-S

Fitting Plug

(SUB FOR FFSB105069)( FFSB104579, 38H1150 , OR T76938 NOT USED FOR THIS APPLICATION)

4шт.

2

FFSB103834

Ball Cock Valve

2шт.

3

FFSB110834

Bracket

2шт.

4

19M7881

Screw

M8 X 20 (SUB FOR FFSB109904)( FFSB109186 OR 19M7163 NOT USED FOR THIS APPLICATION)

8шт.

5

19M7162

Cap Screw

M8 X 16 (SUB FOR J900816)

8шт.

6

24M7055

Washer

8.400 X 16 X 1.600 mm

8шт.

7

14M7273

Nut

M8

8шт.

8

38H1020

Tee Fitting

2шт.

R29936

O-Ring

2шт.

T76938

O-Ring

2шт.

9

FFSB103835

Ball Cock Valve

2шт.

10

X16F5OLO-S

Adapter Fitting

(SUB FOR FFSB102146)

4шт.

11

38H1149

Fitting Plug

3шт.

T77858

O-Ring

3шт.

12

TH100968

Clamp

6шт.

13

19M7388

Cap Screw

M12 X 55

3шт.

14

12M7067

Lock Washer

12 mm

6шт.

15

FFSB108710

Clamp

3шт.

16

19M7943

Cap Screw

M12 X 90

3шт.

17

FFSB104581

Spacer

3шт.

18

FFSB110823

Hydraulic Hose

2шт.

Cover

( FFSB110215 NLA) (FURNISH XH G-125, CUT TO 1100 MM LENGTH)

2шт.

19

FFSB110824

Hydraulic Hose

1шт.

Cover

( FFSB110215 NLA) (FURNISH XH G-125, CUT TO 1100 MM LENGTH)

1шт.

20

FFSB110825

Hydraulic Hose

2шт.

Cover

( FFSB110215 NLA) (FURNISH XH G-125, CUT TO 1100 MM LENGTH)

2шт.

21

X12ELO-S

Elbow Fitting

(SUB FOR FFSB110822)

3шт.

22

X16ELO-S

Elbow Fitting

(SUB FOR FFSB108351)

2шт.

23

FFSB110816

Air Duct

2шт.

24

FFSB110814

Oil Tube

2шт.

25

FFSB112139

Structural Tube

2шт.

26

FFSB112138

Bracket

1шт.

27

FFSB110820

Cylinder Liner

2шт.

28

FFSB110830

Oil Line

1шт.

29

19M9200

Screw

M10 X 20 (SUB FOR FFSB110828)

4шт.

30

FFSB112140

Bracket

1шт.
