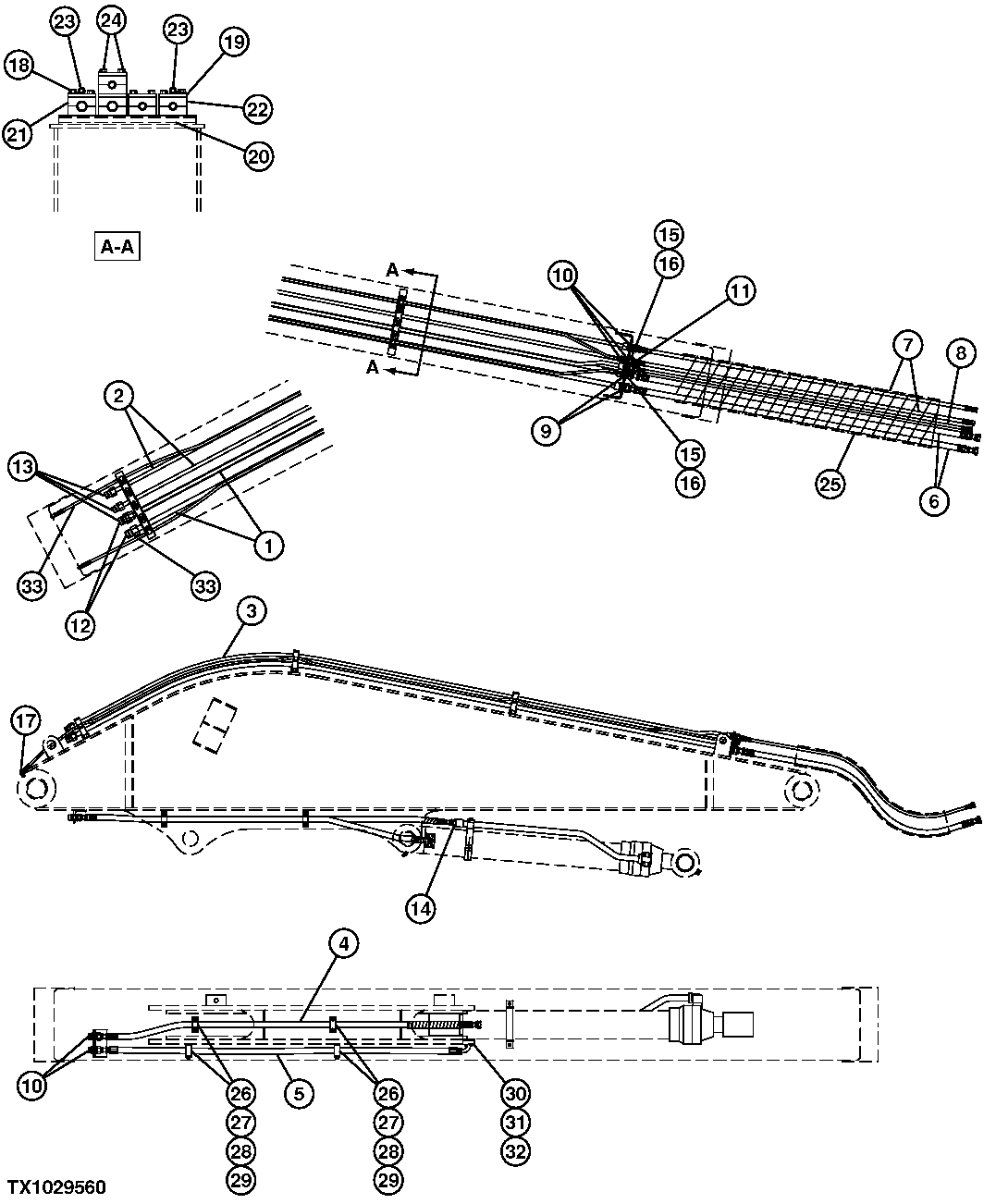

Запчасти John Deere 7C ZTS 610 - HEELER ARM PLUMBING 3363 LINES, HOSES & FITTINGS

1

FFSB111718

Structural Tube

2шт.

2

FFSB111809

Structural Tube

2шт.

3

FFSB111811

Structural Tube

2шт.

4

FFSB111860

Hydraulic Hose

1шт.

Cover

( FFSB110876 NLA) (FURNISH X HG-125, CUT TO 300 MM LENGTH)

1шт.

5

FFSB111861

Hydraulic Hose

1шт.

6

FFSB102053

Hydraulic Hose

(CUT TO 1727MM LENGTH) Fabricate

2шт.

7

FFSB102054

Hydraulic Hose

(CUT TO 1727MM LENGTH) Fabricate

2шт.

8

FFSB103764

Hydraulic Hose

(CUT TO 1753MM LENGTH) Fabricate

1шт.

9

38H1287

Adapter Fitting

2шт.

T76938

O-Ring

2шт.

T78715

Nut

2шт.

10

38H1276

Adapter Fitting

5шт.

T77858

O-Ring

5шт.

T78707

Nut

5шт.

11

T77613

O-Ring

1шт.

38H1356

Tube Nut

1шт.

12

38H1281

Union Fitting

2шт.

T76938

O-Ring

2шт.

13

38H1272

Union Fitting

3шт.

T77858

O-Ring

3шт.

14

38H1194

Adapter Fitting

1шт.

R29936

O-Ring

1шт.

T77858

O-Ring

1шт.

15

X4WGTX-WLN-S

Adapter Fitting

(SUB FOR FFSB102226)

2шт.

16

O-Ring

(NLA)

1шт.

17

T107303

Elbow Fitting

2шт.

18

19M8499

Cap Screw

M10 X 60

18шт.

19

FFSB100114

Reinforcement

15шт.

20

F120999

Nut

( FFSB109897 NLA)

24шт.

21

FFSB100112

Half Clamp

12шт.

22

FFSB100113

Half Clamp

18шт.

23

H75541

Clamp

(SUB FOR FFSB102223)

6шт.

24

19M8343

Cap Screw

M10 X 120

6шт.

25

XAS-B-58

Hose Guard

(CUT TO 1000MM LENGTH) (SUB FOR FFSB110058)

1шт.

26

19H1944

Cap Screw

3/8" X 2-3/4"

8шт.

27

FFSB102050

Reinforcement

4шт.

28

FFSB102051

Half Clamp

8шт.

29

FFSB110868

Insert

4шт.

30

TH101960

Flange Fitting

2шт.

31

T78313

O-Ring

1шт.

32

19M8341

Screw

M12 X 45

4шт.

33

FFSB113324

Hydraulic Hose

(CUT TO 4300MM LENGTH) Fabricate

2шт.
