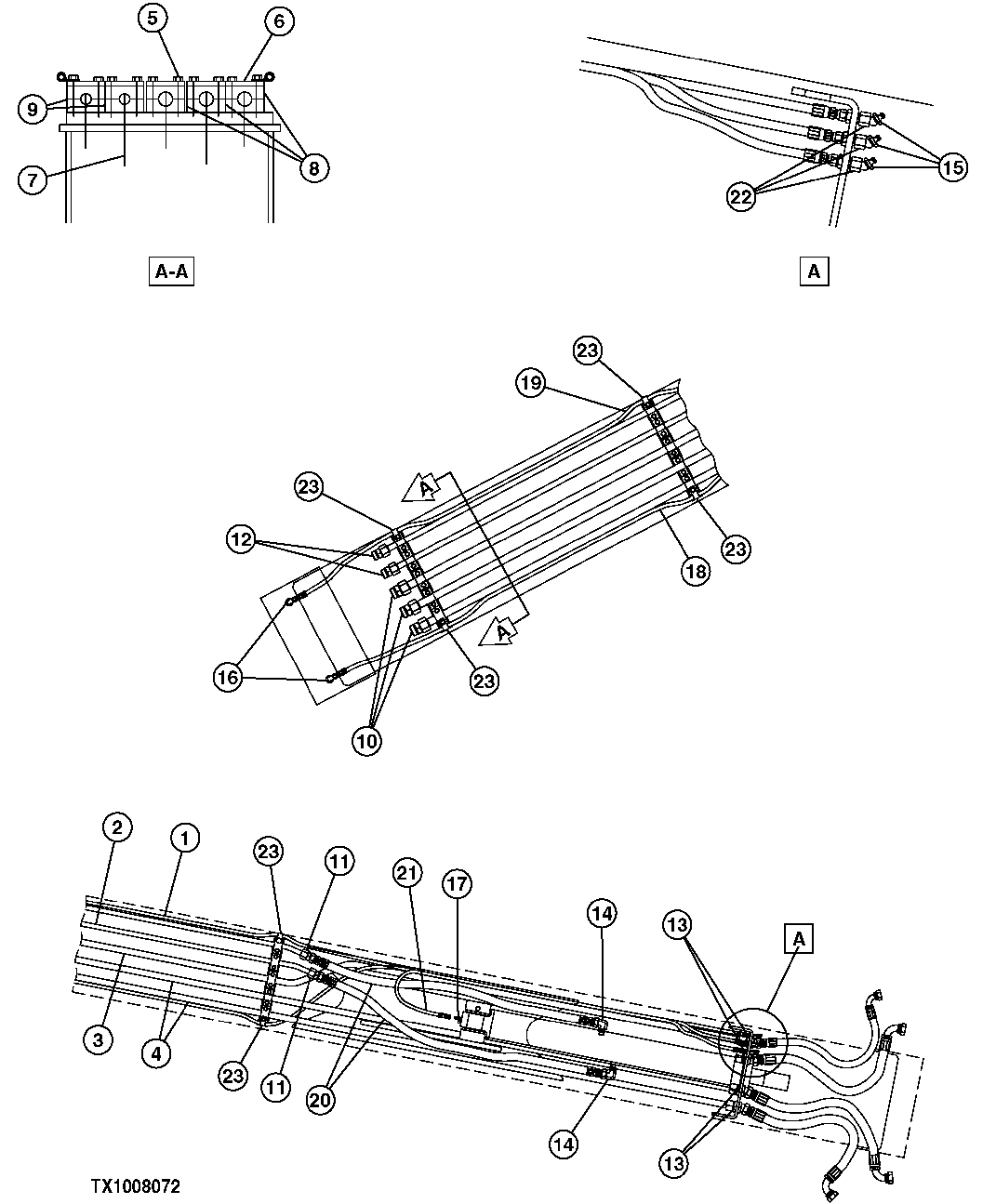

Запчасти John Deere 7C ZTS 609 - VALVE IN HEAD ARM PLUMBING 3363 LINES, HOSES & FITTINGS

1

FFSB106012

Structural Tube

1шт.

2

FFSB106011

Structural Tube

1шт.

3

FFSB106013

Structural Tube

1шт.

4

FFSB106014

Structural Tube

2шт.

5

19M8499

Cap Screw

M10 X 60

30шт.

6

FFSB100114

Reinforcement

15шт.

7

F120999

Nut

( FFSB109897 NLA)

30шт.

8

FFSB100112

Half Clamp

18шт.

9

FFSB100113

Half Clamp

12шт.

10

38H1281

Union Fitting

3шт.

T76938

O-Ring

3шт.

11

38H1272

Union Fitting

2шт.

T77858

O-Ring

2шт.

12

X16-12HLO-S

Union Fitting

(SUB FOR FFSB102143)

2шт.

13

PMH180

Elbow Fitting

4шт.

14

38H1461

Elbow Fitting

2шт.

T77858

O-Ring

2шт.

15

JD7763

Lubrication Fitting

3шт.

16

T107303

Elbow Fitting

2шт.

17

T28850

Elbow Fitting

1шт.

18

FFSB106163

Hydraulic Hose

(CUT TO 4650MM LENGTH) Fabricate

1шт.

19

FFSB113324

Hydraulic Hose

(CUT TO 4300MM LENGTH) (SU B FOR FFSB106162) Fabricate

1шт.

20

FFSB106164

Hydraulic Hose

(CUT TO 1250MM LENGTH) Fabricate

2шт.

21

FFSB106165

Hydraulic Hose

(CUT TO 1650MM LENGTH) Fabricate

1шт.

22

X4WGTX-WLN-S

Adapter Fitting

(SUB FOR FFSB102226)

3шт.

23

H75541

Clamp

(SUB FOR FFSB102223)

6шт.
