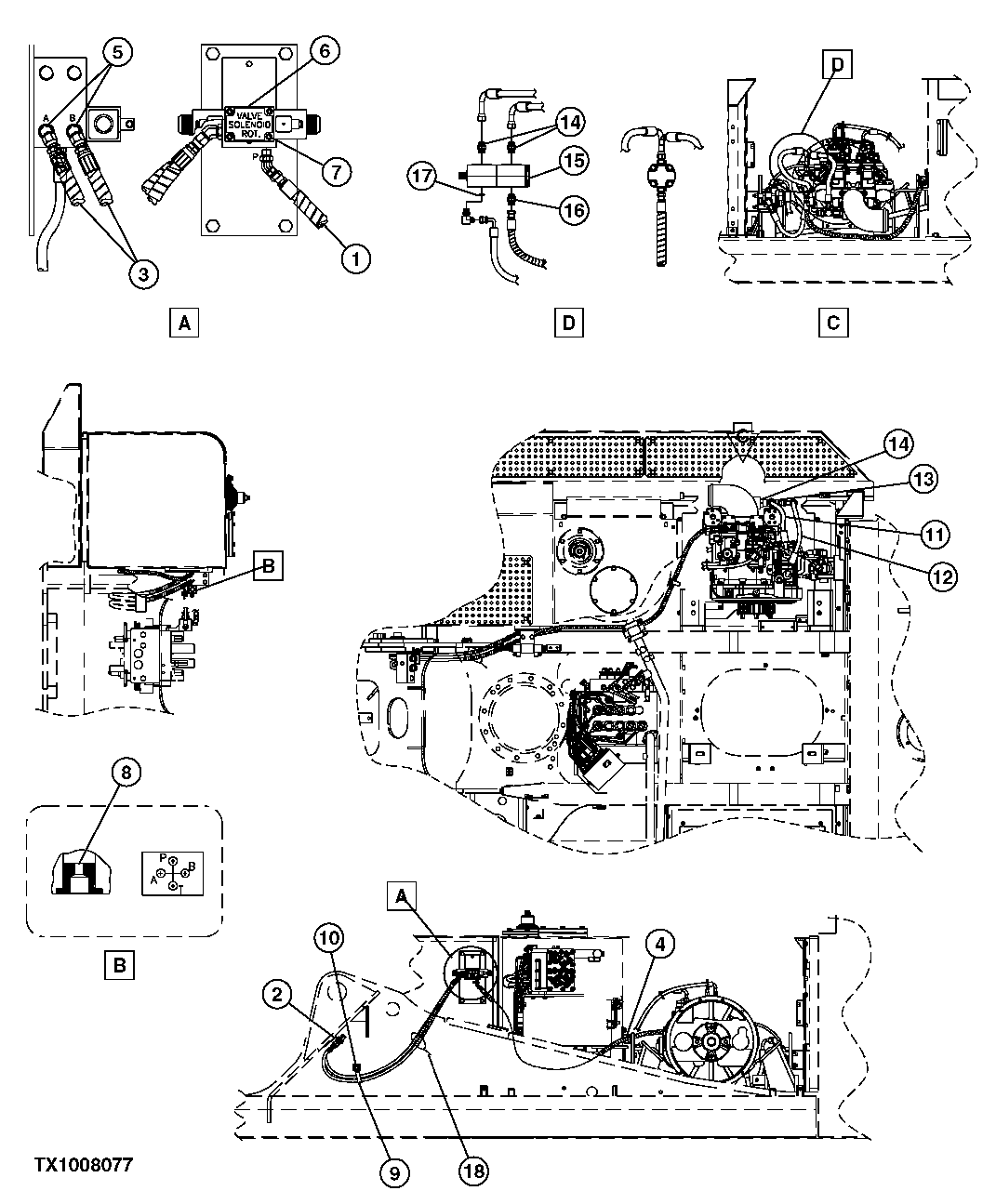

Запчасти John Deere 7C ZTS 604 - DOUBLE FUNCTION GRAPPLE ROTATE HOSES AND SOLENOID VALVE 3363 LINES, HOSES & FITTINGS

1

FFSB110033

Hydraulic Hose

1шт.

2

38H1321

Elbow Fitting

(ALSO ORDER T77857 AND T78716 ) (SUB FO R FFSB102227)( 4202422, FFSB109410, AND TH108440 NOT USED FOR THIS APPLICATION)

2шт.

T77857

O-Ring

2шт.

T78716

Nut

2шт.

3

FFSB110210

Hose

2шт.

4

F026126

Hose Support

(SUB FOR FFSB105404)

1шт.

5

X8V5OLO-S

Elbow Fitting

(SUB FOR FFSB103644)

2шт.

6

FFSB102384

Solenoid Hydraulic Valve

1шт.

7

19H3070

Screw

0.190" X 1-1/4" ( FFSB102861 NLA)

4шт.

8

FFSB104023

Orifice

2шт.

9

FFSB110137

Clamp

1шт.

10

J020825

Cap Screw

1шт.

11

FFSB107458

Hydraulic Hose

1шт.

12

FFSB107457

Hydraulic Hose

1шт.

13

38H1033

Tee Fitting

(SUB FOR FFSB109457)

1шт.

14

A853166

Adapter Fitting

(SUB FOR 4189619)

3шт.

15

9218033

Pump

(SUB FOR 4278696)

1шт.

16

Adapter Fitting

( FFSB102389 NLA)

1шт.

17

U46489

O-Ring

1шт.
