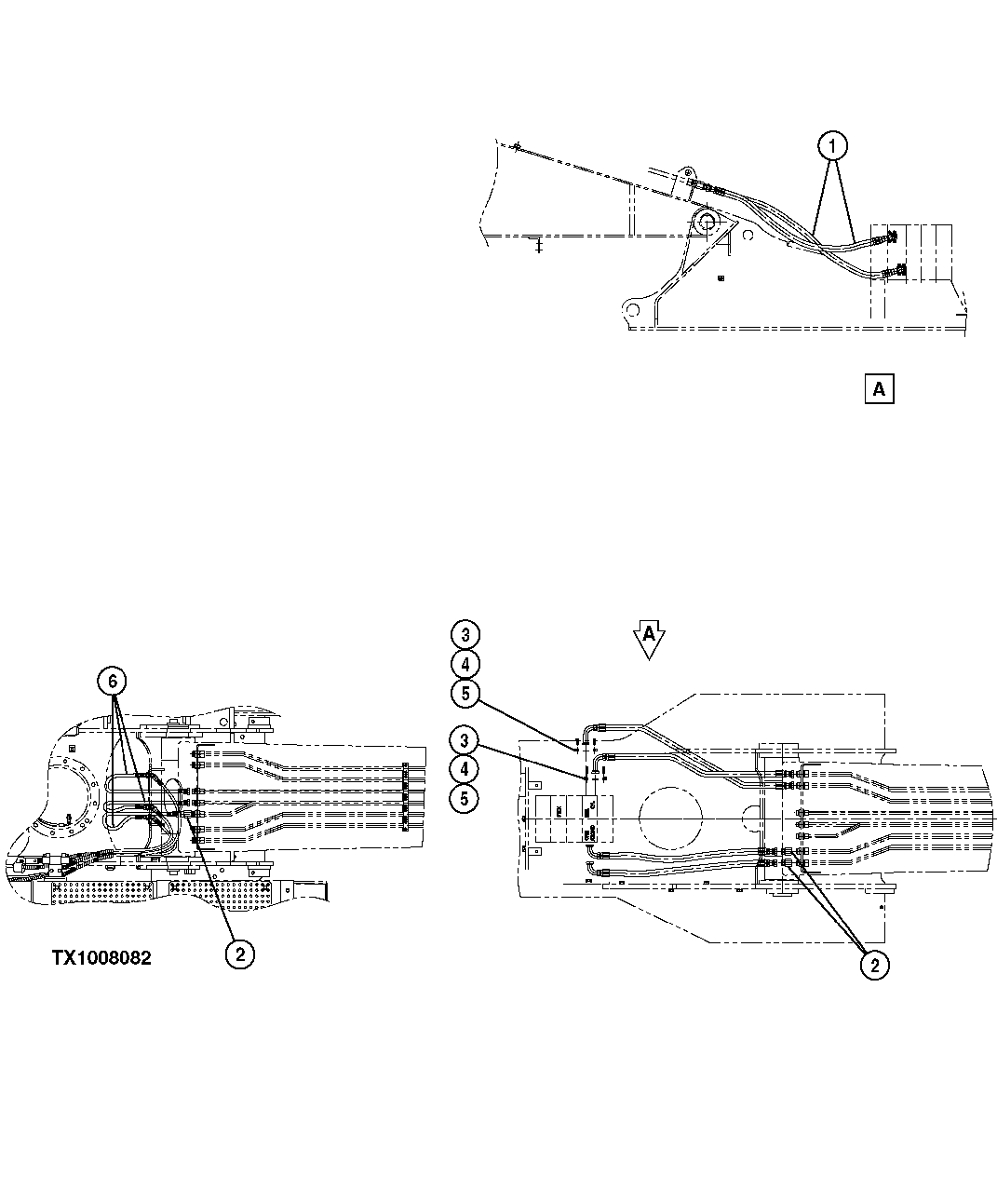

Запчасти John Deere 7C ZTS 597 - CONTROL VALVE TO BOOM LINE HOSES (HEELER FRONT) 3363 LINES, HOSES & FITTINGS

1

FFSB111783

Hydraulic Hose

(SUB FOR FFSB111782)(TWO FOR RI GHT SIDE AND TWO FOR LEFT SIDE)

4шт.

Cover

( FFSB111784 NLA) (FURNISH XHG-150 , CTL 2050 MM) (SUB FOR FFSB111782)

4шт.

2

FFSB105671

Adapter Fitting

(SUB FOR X16-12TRLO-S)

6шт.

3

T78313

O-Ring

(SUB FOR FFSB106430)

4шт.

4

19M7576

Screw

M10 X 30 (SUB FOR FFSB109271 OR J781030)

16шт.

5

H61354

Flange Fitting

(SUB FOR FFSB110184)

8шт.

6

FFSB110157

Hydraulic Hose

3шт.
