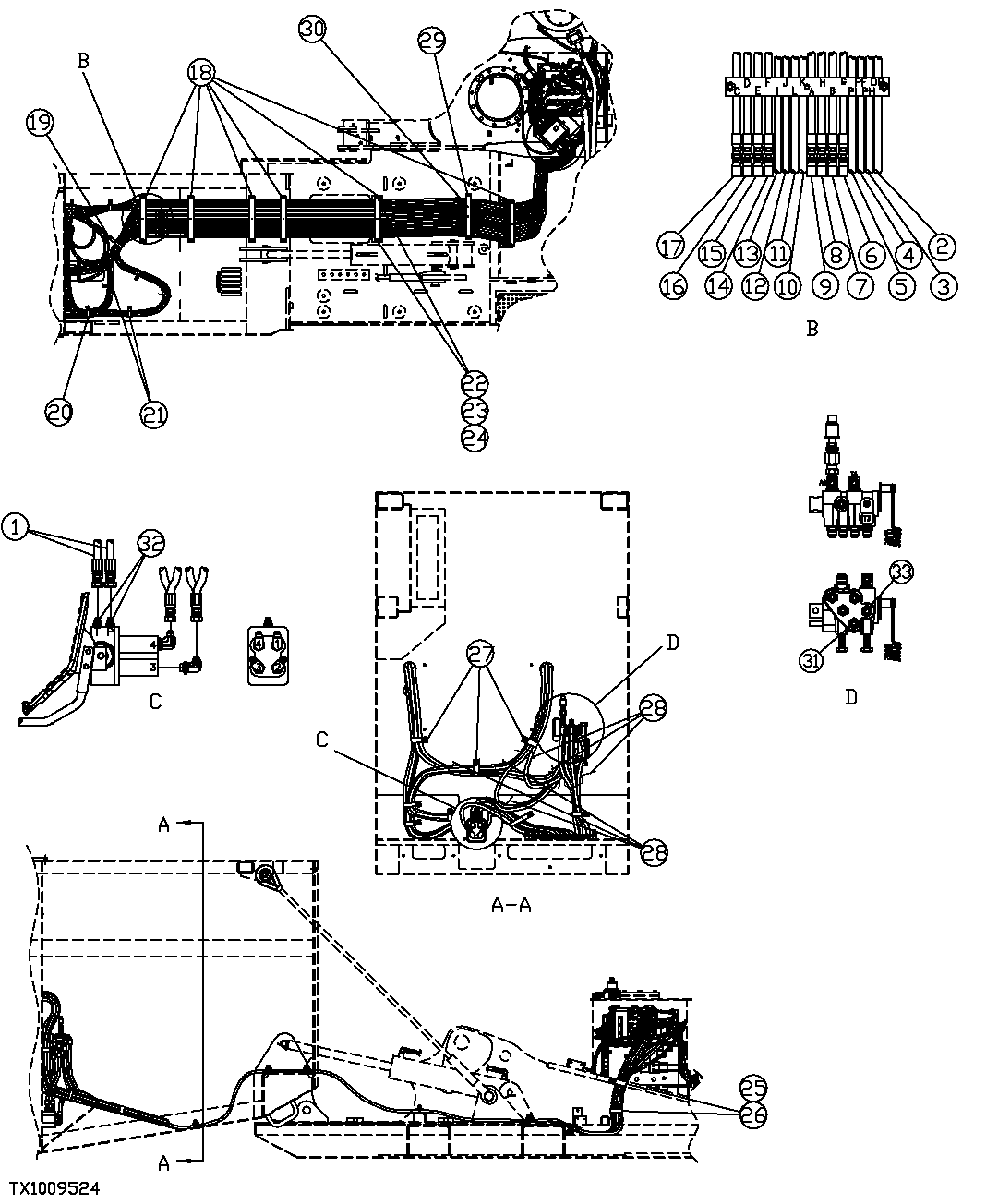

Запчасти John Deere 7C ZTS 593 - REAR ENTRY CAB PILOT HOSES FROM SIGNAL MANIFOLD (72 INCH RISER) 3363 LINES, HOSES & FITTINGS

1

FFSB105047

Hydraulic Hose

2шт.

2

FFSB112043

Hydraulic Hose

1шт.

3

FFSB112044

Hydraulic Hose

1шт.

4

FFSB112045

Hydraulic Hose

1шт.

5

FFSB112042

Hydraulic Hose

1шт.

6

FFSB112036

Hydraulic Hose

1шт.

7

FFSB112036

Hydraulic Hose

1шт.

8

FFSB112035

Hydraulic Hose

1шт.

9

FFSB112037

Hydraulic Hose

1шт.

10

FFSB112040

Hydraulic Hose

1шт.

11

FFSB112040

Hydraulic Hose

1шт.

12

FFSB112040

Hydraulic Hose

1шт.

13

FFSB112040

Hydraulic Hose

1шт.

14

FFSB112036

Hydraulic Hose

1шт.

15

FFSB112036

Hydraulic Hose

1шт.

16

FFSB112035

Hydraulic Hose

1шт.

17

FFSB112036

Hydraulic Hose

1шт.

18

FFSB110347

Clamp

6шт.

19

T118385

Clamp

1шт.

20

F026126

Hose Support

(SUB FOR FFSB105404)

1шт.

21

F010967

Hose Support

(SUB FOR FFSB104269)

4шт.

22

24M7096

Washer

10.500 X 18 X 1.600 mm

19шт.

23

12M7066

Lock Washer

10 mm (SUB FOR A590910)

19шт.

24

14M7274

Nut

M10 (SUB FOR J950010)

19шт.

25

FFSB105405

Clamp

2шт.

26

19M7662

Cap Screw

M10 X 30 (SUB FOR J021030)

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

27

FFSB110137

Clamp

3шт.

28

R44302

Tie Band

(SUB FOR FFSB108110)( H77698 NLA)

7шт.

29

19M7935

Cap Screw

M10 X 55

2шт.

30

FFSB112976

Clamp

1шт.

31

4261938

Fitting

(SUB FOR FFSB109411)

1шт.

32

4200467

Adapter Fitting

(SUB FOR FFSB109412)

2шт.

33

4200466

Adapter Fitting

(SUB FOR FFSB109413)

1шт.
